BWT-1363 Bullwheel Tensioner

3,000 LBS. 36 IN. BULLWHEEL TENSIONER

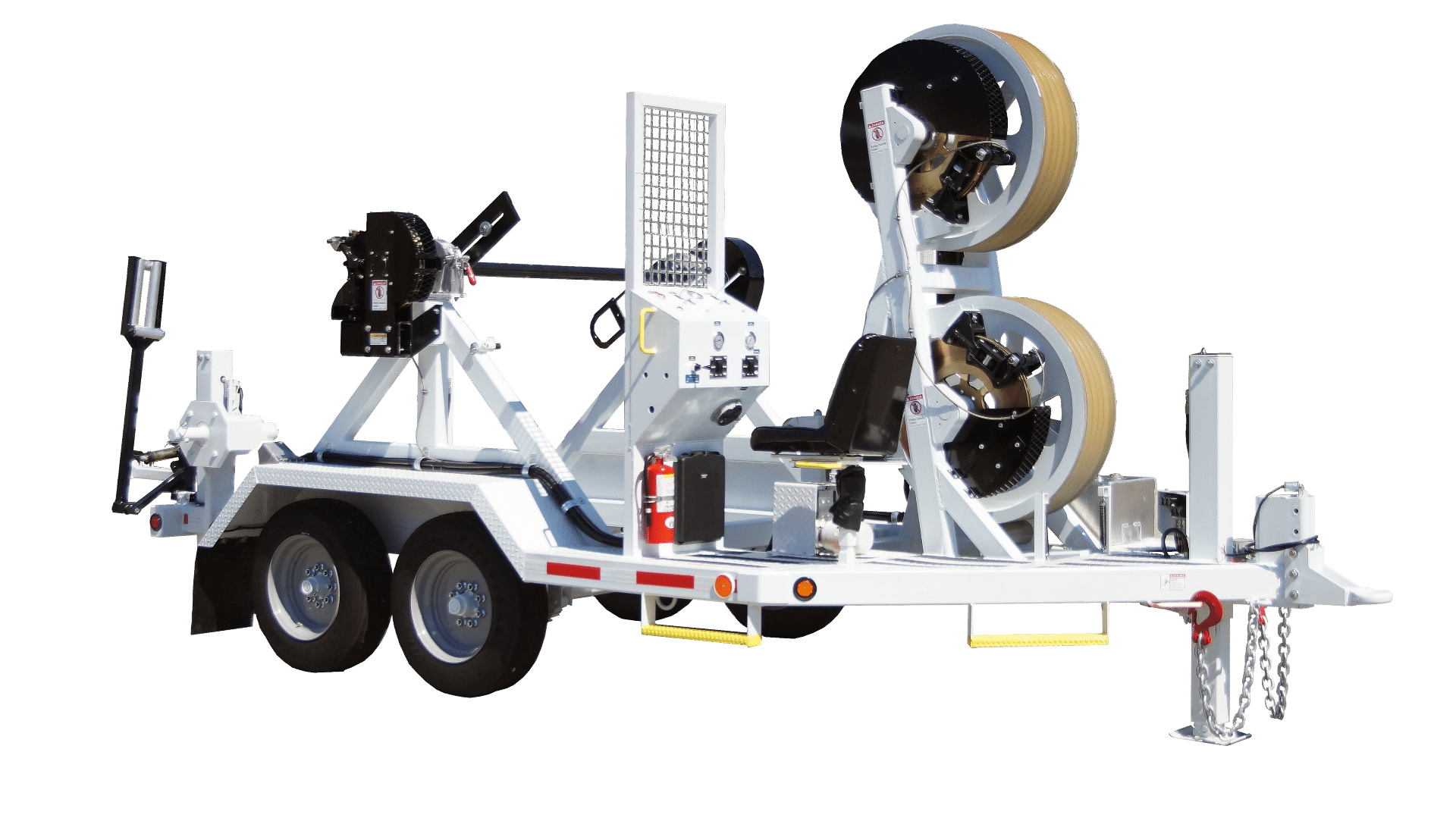

The Sherman+Reilly BWT-1363 Bullwheel Tensioner is a precision tensioner, with up to 2 reel carriers, providing a controlled conductor payout/retrieval system in a single piece of equipment.

Download SPEC Sheet

Contact Us

Key Features

CAPABILITY

Precision bullwheel tensioner, with reel carrier and controlled conductor payout and retrieval system in a single piece of equipment.

TENSIONING CAPACITY

Tensioning capacity of 3,000lbs in a compact footprint.

REEL CAPACITY

Integrated reel carrier accommodates reels up to 84″ OD and 8,000 lbs. fully loaded.

BULLWHEELS

Pair of 36-inch, 5-groove bullwheels with solid-cast machined urethane linings, coupled with 20” diameter bronze disc brake. Bullwheels are canted for right-hand lay, left-hand lay, or twisted pair conductor.

Specifications

Print BWT-1363 Bullwheel Tensioner Specifications

Tensioning Capacity

Min. 600 lbs., max: 3,000 lbs.
Maximum Line Speed

4 mph
Controls

Fully adjustable, three-axis disc-caliper braking system.
Drive System

Hydraulic retriever option with for powered conductor take-up and rewind.
Bullwheels

Core Diameter: 36 in.
Count: 2
Count: 5 Grooves, Radius: 3/4 in.
Groove Lining: Polyurethane
Bottom of Groove: 34 3/8 in. dia.
Tension Brake

Hydraulic, manually applied 20 in. diameter disc, bronze.
Brake Control

Manual, per operator setting.
Fairlead Rollers

Adjustable urethane.
Operator’s Safety Screen

Click Here For ALL SPECS

OPTIONS

Full vinyl cover
Bullwheel only cover
Payout brake cover
PowerPack option for hydraulic jacks, electric over hydraulic tension brake, and power for available Retriever
and Spider Rewind pilot line option
Retriever option for powered conductor take-up and
rewind on reel stand (compatible with PowerPack option or
auxiliary power source)
Spider® Pilot Line System with independent levelwind
Solar battery charger
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground
Customizable to include 1 or 2 reel stands, reel retriever, and braking systems Air Brakes
Galvanized Finish Available

All Specifications

BWT-1363 Bullwheel Tensioner

DOWNLOAD SPECIFICATIONS

Tensioning Capacity

Min. 600 lbs., max: 3,000 lbs.
Maximum Line Speed

4 mph
Controls

Fully adjustable, three-axis disc-caliper braking system.
Drive System

Hydraulic retriever option for powered conductor take-up and rewind.
Bullwheels

Core Diameter: 36 in.; Count: 2; Groove Count: 5; Groove Radius: 1 in.; Groove Lining: Polyurethane; Bottom of Groove: 34 3/8 in. dia.
Tension Brake

Hydraulic, manually applied 20 in. diameter disc, bronze.
Brake Control

Manual, per operator setting.
Engine

PowerPack option for hydraulic jacks, electric over hydraulic tension brake, and power for available Retriever
and Spider Rewind pilot line option
Fairlead Rollers

Adjustable Urethane
Operator’s Safety Enclosure

Safety screen
Rear (R/L) Jacks

Manual
Front/Nose Jacks

Manual
Lights / Navigation

US DOT, LED, 12 VDC
