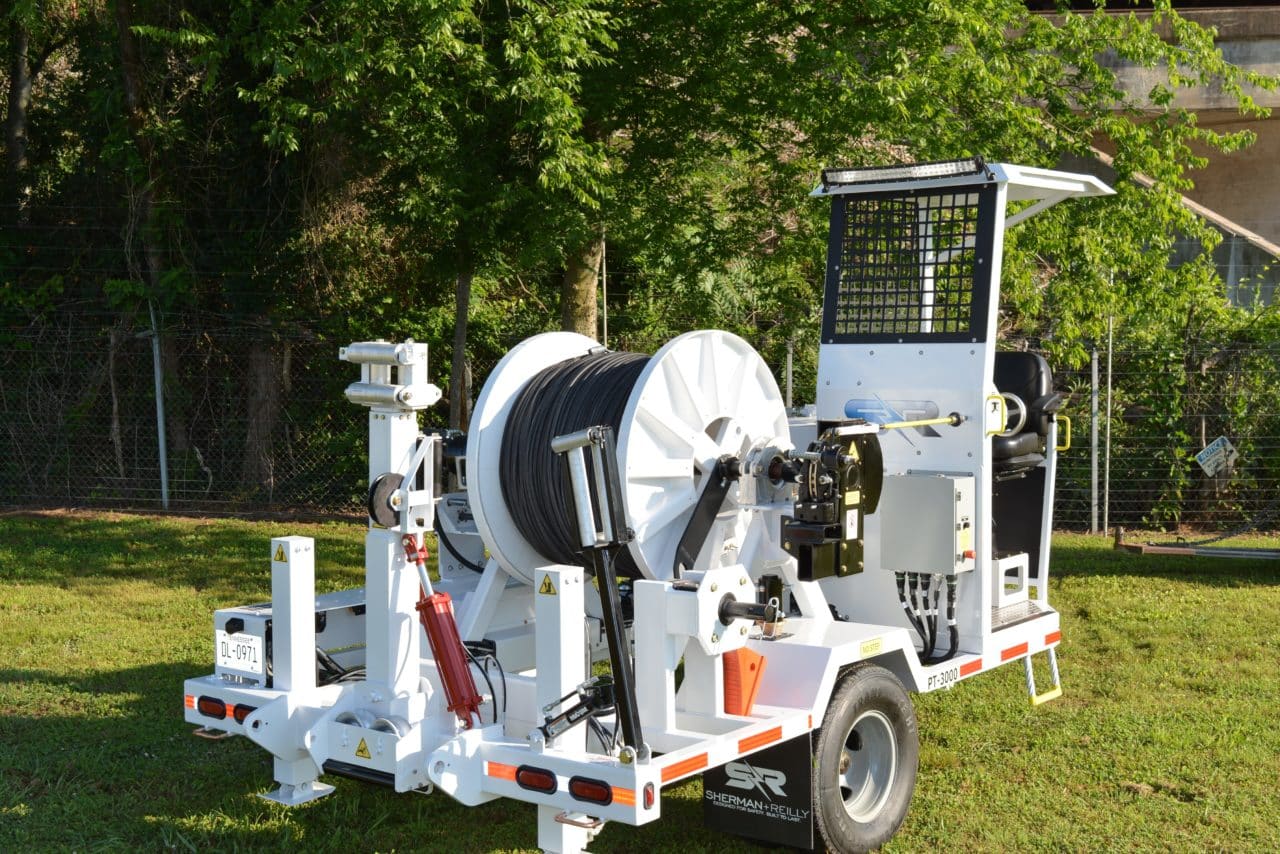

PT-3000 Puller Tensioner
3,000 LBS. SINGLE DRUM PULLER TENSIONER
The Sherman+Reilly PT-3000 Puller Tensioner is a single drum, multi-purpose distribution puller/tensioner capable of pulling up to 3,000 pounds overhead and up to 7,500 pounds underground.
KEY FEATURES
CAPABILITY
Pulling: 3,000 lbs pulling force (rated at top of drum).
Tensioning: 2,000 lbs.
HYDRAULIC SYSTEM
Direct Drive: single hydraulic motor, drum and drive bar/dual pin.
DRUM CAPACITY
66 in. diameter/40 in. width. Dynamic – Over the Road – w/PMTA 3,200 lbs., w/o PMTA 4,000 lbs. | Static – Jacks Extended – 6,000 lbs.

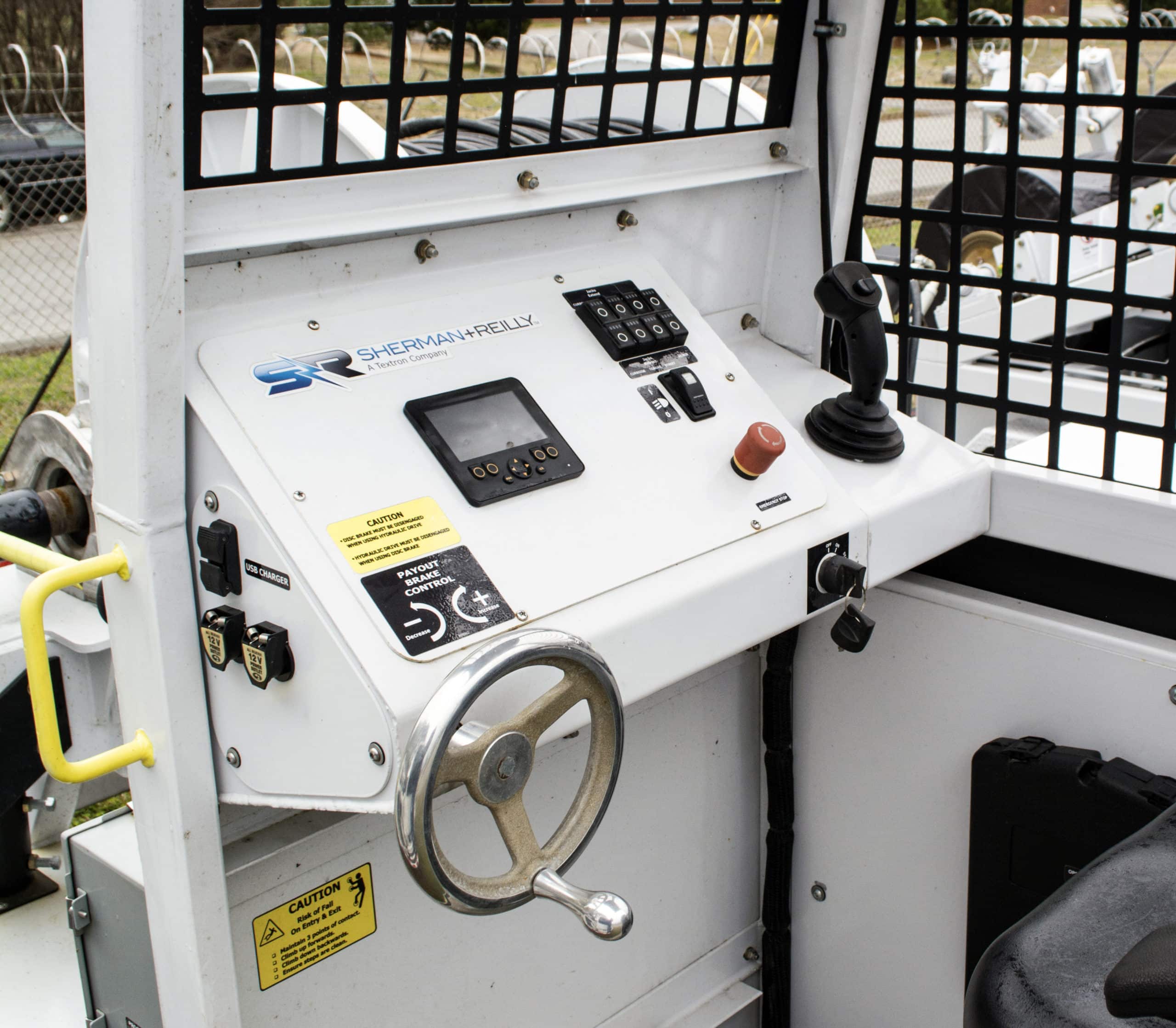

OPERATOR’S STATION
Safe-Shield cab provides front and side protection for the operator and includes standard an adjustable ergonomic seat.
SPECIFICATIONS
Pulling Capacity
3,000 lbs. (Rated at top of 46 in. drum)
Max
3,300 lbs. (Rated maximum)
Tensioning Capacity
2,000 lbs.
Maximum Line Speed
Pulling 4 mph
Maximum Conductor ReelSize
66 in. diameter/40 in. width
Maximum Conductor Reel Weight
Dynamic – Over the Road – w/PMTA 3,200lbs.,
w/o PMTA 4,000 lbs. |
Static – Jacks Extended – 6,000 lbs.
Drum Dimensions
Core Diameter: 18 in.
Total Outside Width
40 in.
Flange Diameter
46 in.
Drum Capacity
11 mm. dia. Unitrex™ 17,000 ft.
5/8 in. dia. Uniline™ 8,450 ft.
Standard rope length is 6,000 ft. of 5/8 in. Uniline
Drive System
Direct Drive: single hydraulic motor,
drum and drive bar/dual pin
Drive System Engine
Turbocharged, Tier-4 Final, diesel, 45 Hp, water-cooled
Fuel Capacity
13 Gallon
Hydraulic Fluid
ISO Grade 32
Hydraulic Reservoir
25 Gallon
Hydraulic Fluid Filtration
10 micron, both supply and return filters
Levelwind
Hydraulically driven, manually controlled
Operator’s Safety Enclosure
Open cab enclosure
Frame Construction
Steel tubing, Steel plate, continuous weld
OPTIONS
Hydraulic Pad Mount Transformer Attachment capable of 7,500 lbs maximum working load
RCR-60: Core: 24 in. to 18 in. tapered Total Outside Width: 39 in. (Flange Diameter: 60 in.)
Underground levelwind for pulling underground

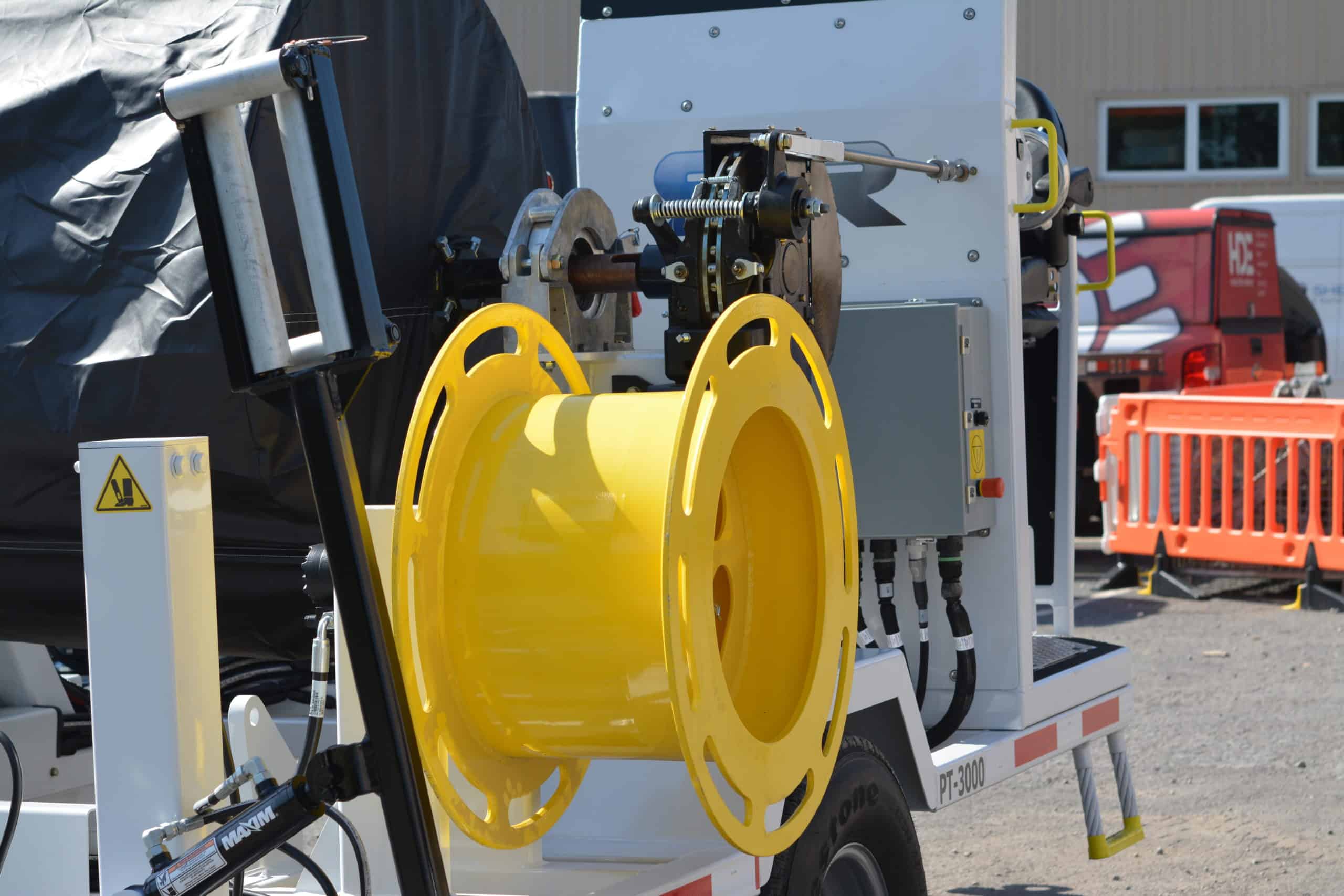

Spider® Pilot Line System with independent levelwind
S-75 or S-85 spider reels with 3,000 ft. or 6,000 ft.
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground
Underground Option with UG Drum 24 in. OD, 31.75 in. W, 3/8 in. x 2,000 ft., 6×25 IWRC
E-35 Underground Swivel (3,500 lbs.)
E-49 Underground Swivel (8,000 lbs.)
Solar Battery Charger
