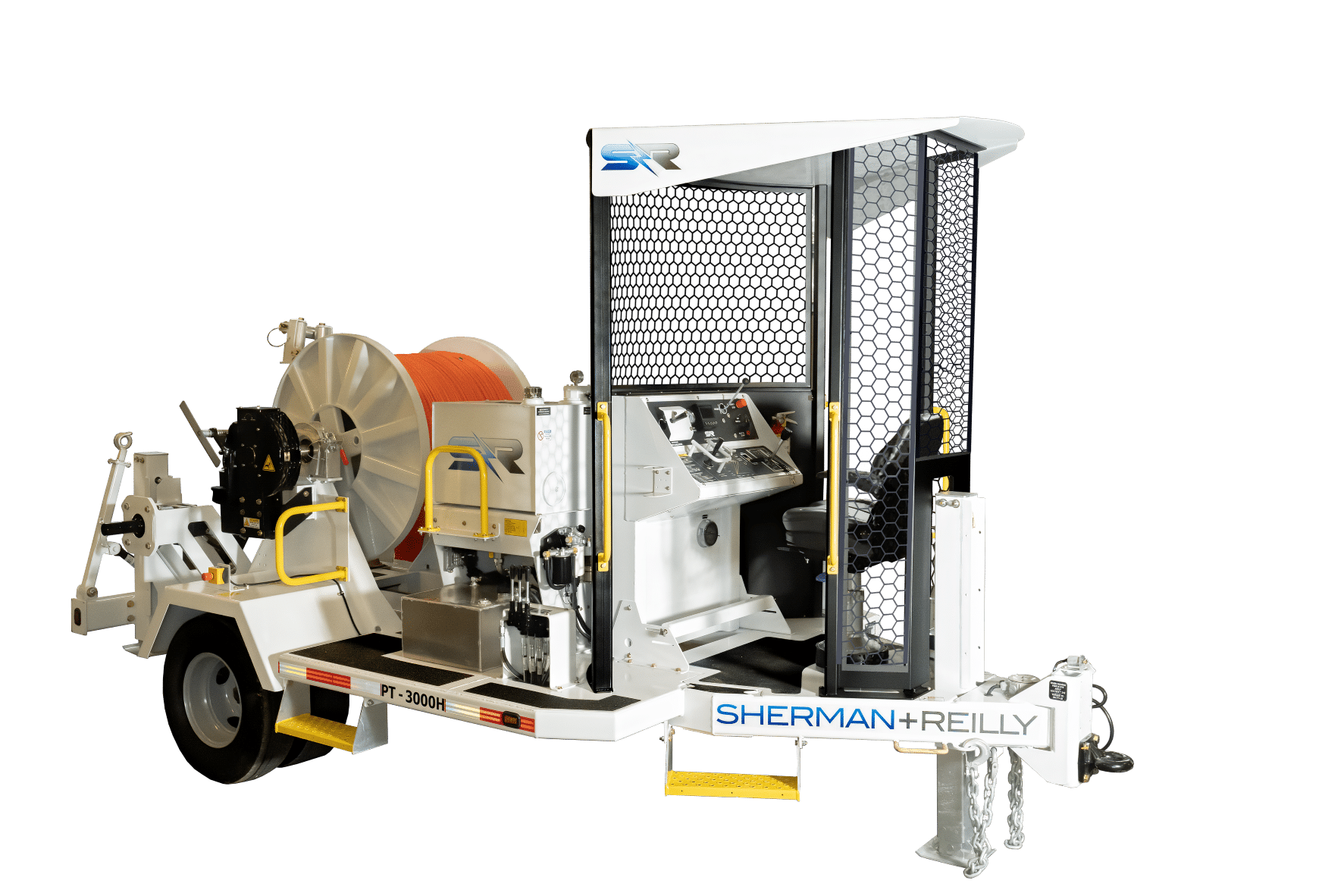

PT-3000H Puller Tensioner – Heritage Series
PT-3000H PULLER TENSIONER – HERITAGE SERIES

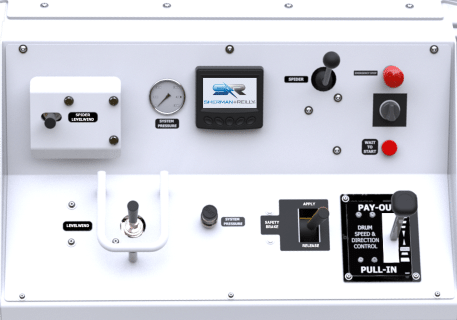

Safety, ergonomics, and reliability meet with ease of use. The PT-3000H puller tensioner Heritage unit blends old-school operator feel with the latest technology. The open-air operator’s station provides a wide field of view, with an adjustable ergonomic seat and an adjustable footrest.
A newly designed canopy protects the operator from sun and rain as well as broken pulling lines. The Easyway Platform Path provides a more open platform for the operator to move about the platform for reel/drum changes.
SPECIFICATIONS
Pulling Capacity
3,100 lbs.
Max. Tensioning Capacity
2,000 lbs.
Min. Tensioning Capacity
Hydraulic Low force tension under 100lbs
or manual pull off tension under 50lbs.
Line Speed
Pulling: 3 mph, Tensioning 3 mph.
Max. Conductor Reel Size
66 in. diameter/38 in. width
Max. Conductor Reel Weight
Dynamic – Over the Road 4,000 lbs.
Static – Jacks Extended – 6,000 lbs.
Drum Dimensions
Core Diameter: 18 in.
Total Outside Width: 40 in.
Flange Diameter: 46 in.
Drum Capacity
Standard rope length: 6,000 ft. of 5/8 in. PE-12.
Drive System
Direct Drive: single hydraulic motor.
X-Change™ Coupling System
Drive System Engine
Turbocharged, Tier-4 Final, diesel,
49 Hp, water-cooled Kubota™
Fuel Capacity
13 Gallon
OPTIONS
Re-Conductoring Reel: RCR-60: Core: 24 in. to 18 in. tapered Total
Outside Width: 39 in. (Flange Diameter: 60 in.)
Spider® Pilot Line System with independent levelwind
S-75 or S-85 spider reels with 3,000 ft. or 6,000 ft.
Hydraulic Jacks
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground
Underground Package Levelwind | UG Drum | Hardline
Premium Rope (Uniline®)
Galvanized
Air Brakes
