BWT-1363 Bullwheel Tensioner

3,000 LBS. 36 IN. BULLWHEEL TENSIONER

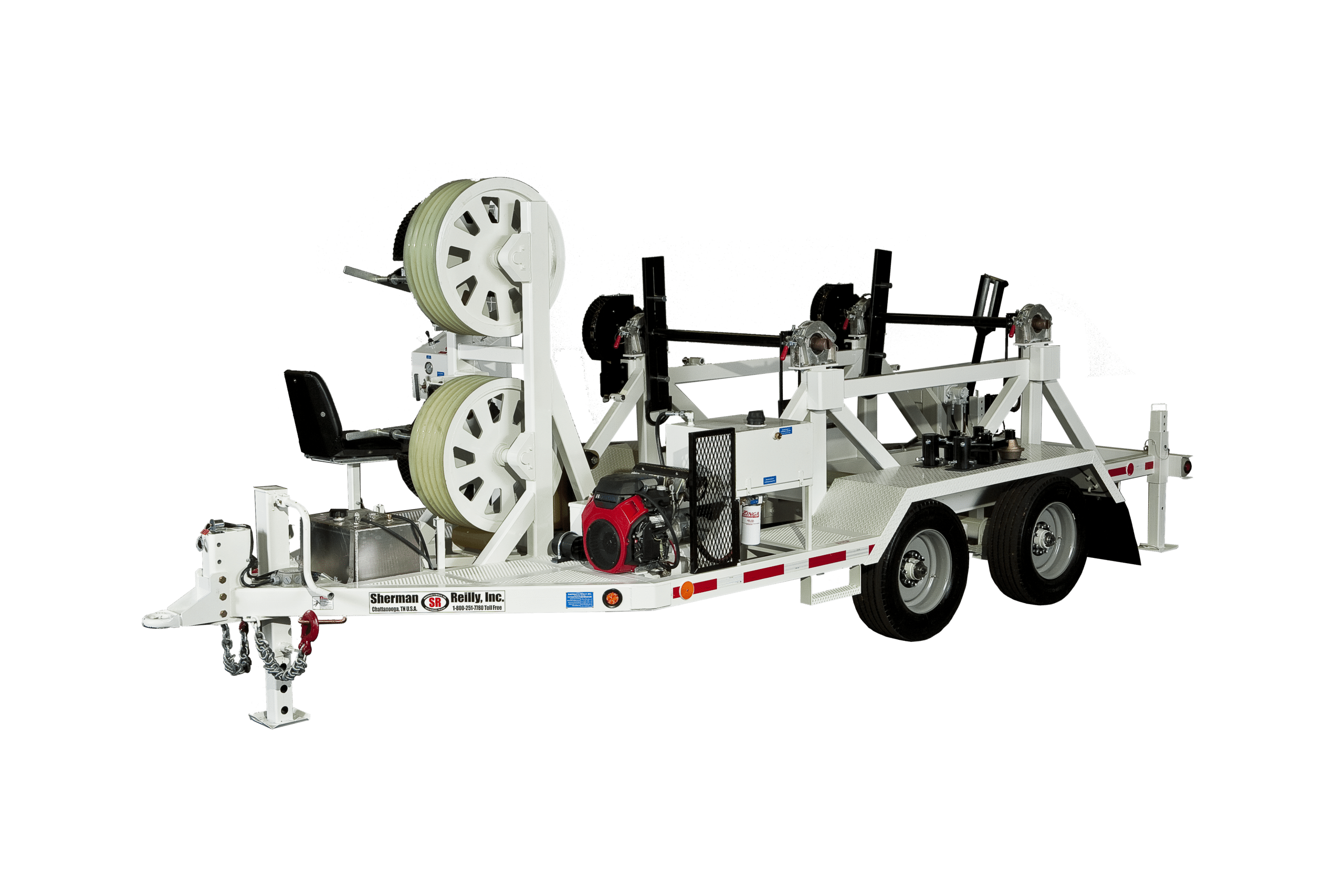

The Sherman+Reilly BWT-1363 Bullwheel Tensioner is a precision tensioner, with up to 2 reel carriers, providing a controlled conductor payout/retrieval system in a single piece of equipment.

Download Spec Sheet
Contact Us

KEY FEATURES

CAPABILITY

Precision bullwheel tensioner, with reel carrier and controlled conductor payout and retrieval system in a single piece of equipment.

REEL CAPACITY

Integrated reel carrier accommodates reels up to 84″ OD and 8,000 lbs. fully loaded.



TENSIONING CAPACITY

Tensioning capacity of 3,000 lbs in a compact footprint.



BULLWHEELS

Pair of 36-inch, 5-groove bullwheels with solid-cast machined urethane linings, coupled with 20” diameter bronze disc brake. Bullwheels are canted for right-hand lay, left-hand lay, or twisted pair conductor.

Still currently available, the BWT-1363 is being retired and replaced with the Heritage Series BWT-1424H.  To view the new Heritage Series BWT-1424H, click here.

SPECIFICATIONS

Print BWT-1363 Bullwheel Tensioner Specifications
Tensioning Capacity

Min. 600 lbs., max: 3,000 lbs.

Maximum Line Speed

4 mph

Controls

Fully adjustable, three-axis disc-caliper braking system.

Drive System

Hydraulic retriever* option with for powered conductor take-up and rewind.

*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.

Bullwheels

Core Diameter: 36 in.
Count: 2
Count: 5 Grooves,  Radius: 3/4 in.
Groove Lining: Polyurethane
Bottom of Groove: 34 3/8 in. dia.

Tension Brake

Hydraulic, manually applied 20 in. diameter disc, bronze.

Brake Control

Manual, per operator setting.

Fairlead Rollers

Adjustable urethane.

Operator’s Safety Screen



Click Here for all Specs
BWT-1363-Large

OPTIONS

Full vinyl cover

Bullwheel only cover

Payout brake cover

PowerPack option for hydraulic jacks, electric over hydraulic tension brake, and power for available Retriever* and Spider Rewind pilot line option

*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.

Retriever* option for powered conductor take-up and rewind on reel stand (compatible with PowerPack option or auxiliary power source)

*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.

Spider® Pilot Line System with independent levelwind

Solar battery charger

RDG-2100 Rotating Distribution Ground

DG-4100 Running Ground

Customizable to include 1 or 2 reel stands, reel retriever, and braking systems Air Brakes

Galvanized Finish Available
