XL-100 Universal Stringing Block

5,000 lbs. Maximum Working Load Universal Stringing Block

Continuing to invent what’s next, Sherman + Reilly introduces the new XL-100 Universal Stringing Block, ready to handle a maximum working load up to 5,000 lbs. Configured with one 11.75 in. sheave, a large hook, and a 100% positive locking spring-loaded head pin. Backed by S+R’s Forever Warranty®, and ready to tackle tough stringing jobs.

Key Features

Design

Can be used in suspension utilizing a high strength, hot-dipped galvanized socket connector.

Configuration

One sheave. Extremely rugged. 100% positive locking spring-loaded head pin assembly has large hook for hot stick operation. Low friction sealed ball bearings are lubricated for life of block under normal conditions.

Sizing

11.75 in. diameter sheave. 17.5 lbs. block. Maximum working load 5,000 lbs.

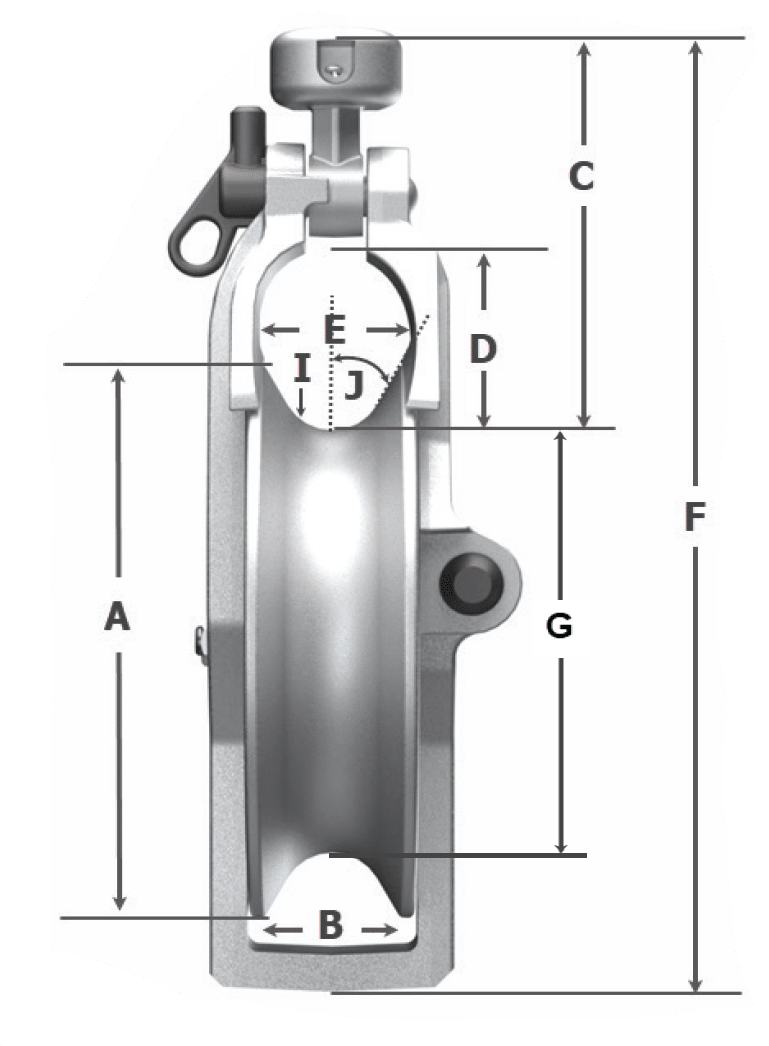

SIZE OUTSIDE SHEAVE DIA. IN. RIM WIDTH IN. POINT OF CONNECTION TO BOTTOM OF CONDUCTOR IN. THROAT HEIGHT IN. THROAT WIDTH IN. OVERALL LENGTH RADIUS WIDTH AT WIDEST POINT IN.
A B C D E F G H
11.75 11.75 3.375 8.025 3.875 3.1875 20.028 7.623
