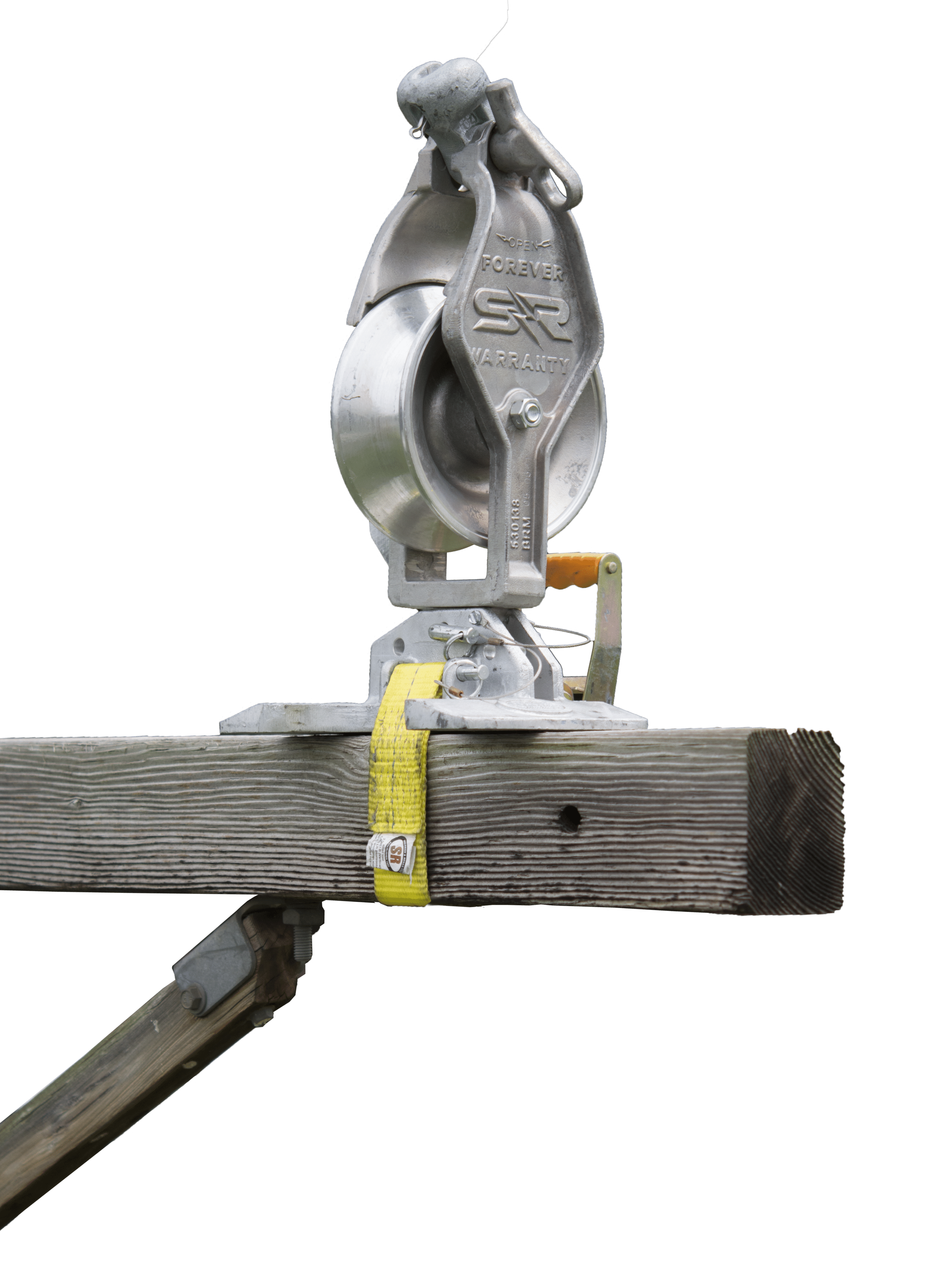

XS-100 FASTRAP®
SAVES TIME WITH NO TOOLS NEEDED
The XS-100 FASTRAP ® bracket requires less than half the time to mount or dismount compared to ordinary brackets.
SPECIFICATIONS
Pulling Load, rated
2,500 lbs., vertical; 1,500 lbs., horizontal
Addressable Cross-Arm Size, max.
4 in. x 10 in.
Addressable Cross-Arm Size, min.
3 1/2 in. x 4 1/2 in.
Operating Mechanism
Encircling strap with manual tightening using a fine-tooth ratcheted lever; released by quick-release lever
Base
Aluminum, with slip-resistant coating
Strap
30 in. length, Polyester, woven, with UV inhibitors & wear indicators
Strap-Assembly Breaking Strength, min.
9,000 lbs.
Ratchet Material
Steel, with corrosion-resistant coating
Weight, nom.
6 1/2 lbs
Dimensions, stored, nom.
12 in. x 7 1/4 in. x 6 in
