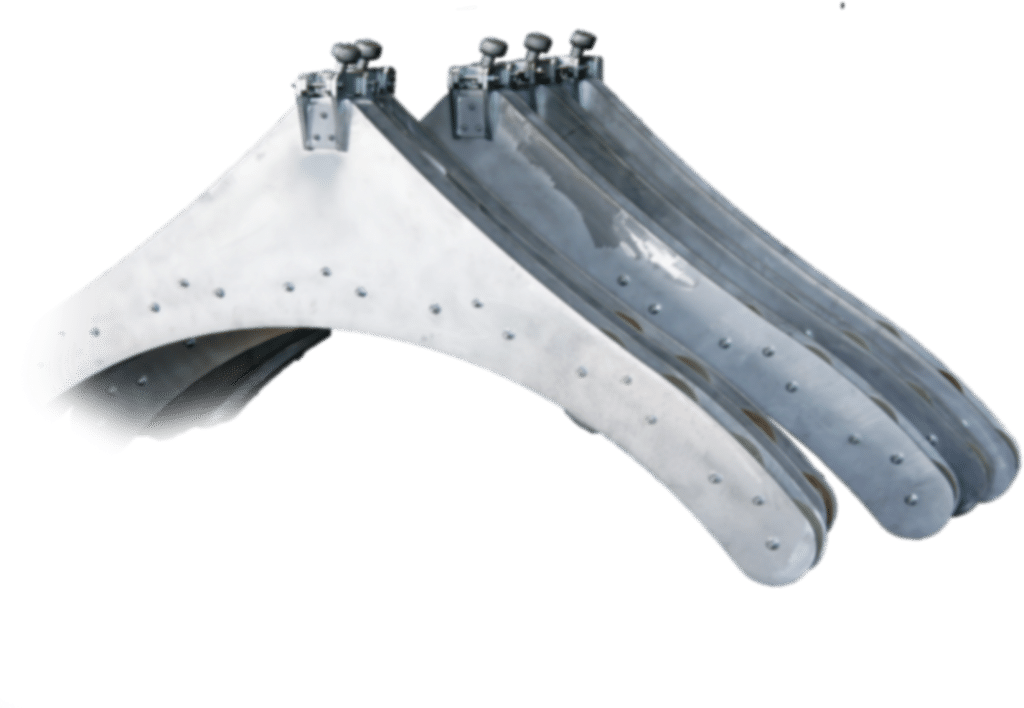

ARRAY BLOCK
USE THIS BLOCK TO CREATE GENTLE BREAK-OVER ANGLES
Used to create gentle break-over angles in typical applications like the first tension-site tower, last pull-site tower, and for towers with running angles greater than 24 degrees.
Available in 7-sheave and 14-sheave designs
Designed to accommodate angles supporting ACCC conductor
KEY FEATURES
DESIGN
Ideal for versatile field reconfiguration to meet the demands of changing stringing needs and conditions.
SIZING
Meeting the vast range of transmission conductors with with 20″, 22″, 28″, 35”, and 42″ (OD) sheaves.
CONFIGURATION
Rigid frames made up of hot-dipped galvanized steel are available in 3 designs: symmetrical, slimline, or offset. Bundle blocks are available in 2, 3, 4, and 6-conductor configurations.
OPTIONS
Available block grounds and helicopter options.
