XS-200 BLOCKS
SAME SHEAVES AS USED IN THE XS-100-B BLOCK

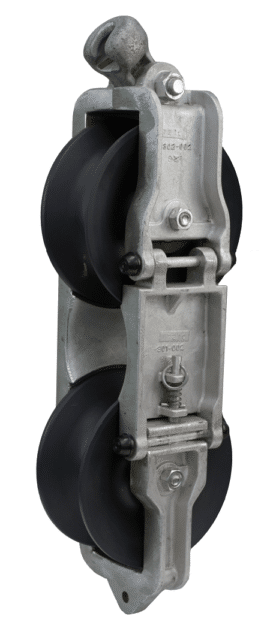

The XS-200 block has two sheaves that are the same as used in the XS-100-B block. This conductor stringing block is for uplift conditions and can be used either in suspension or on a crossarm. The side gate positively locks with spring plunger. Maximum working load is 2,500 lbs.
KEY FEATURES
DESIGN
Has two identical sheaves. Side gate positively locks with spring plunger.
SIZING
Maximum working load is 2,500 lbs., weight 16-1/4 lbs.
CONFIGURATION
For uplift conditions and can be used either in suspension or on a crossarm.
OPTIONS
Available in urethane, polished-groove, or nylon. Optional shackle for hold down rope (order separately).
IMAGE GALLERY
