UG-72 Underground Block

UG-72 Underground Block

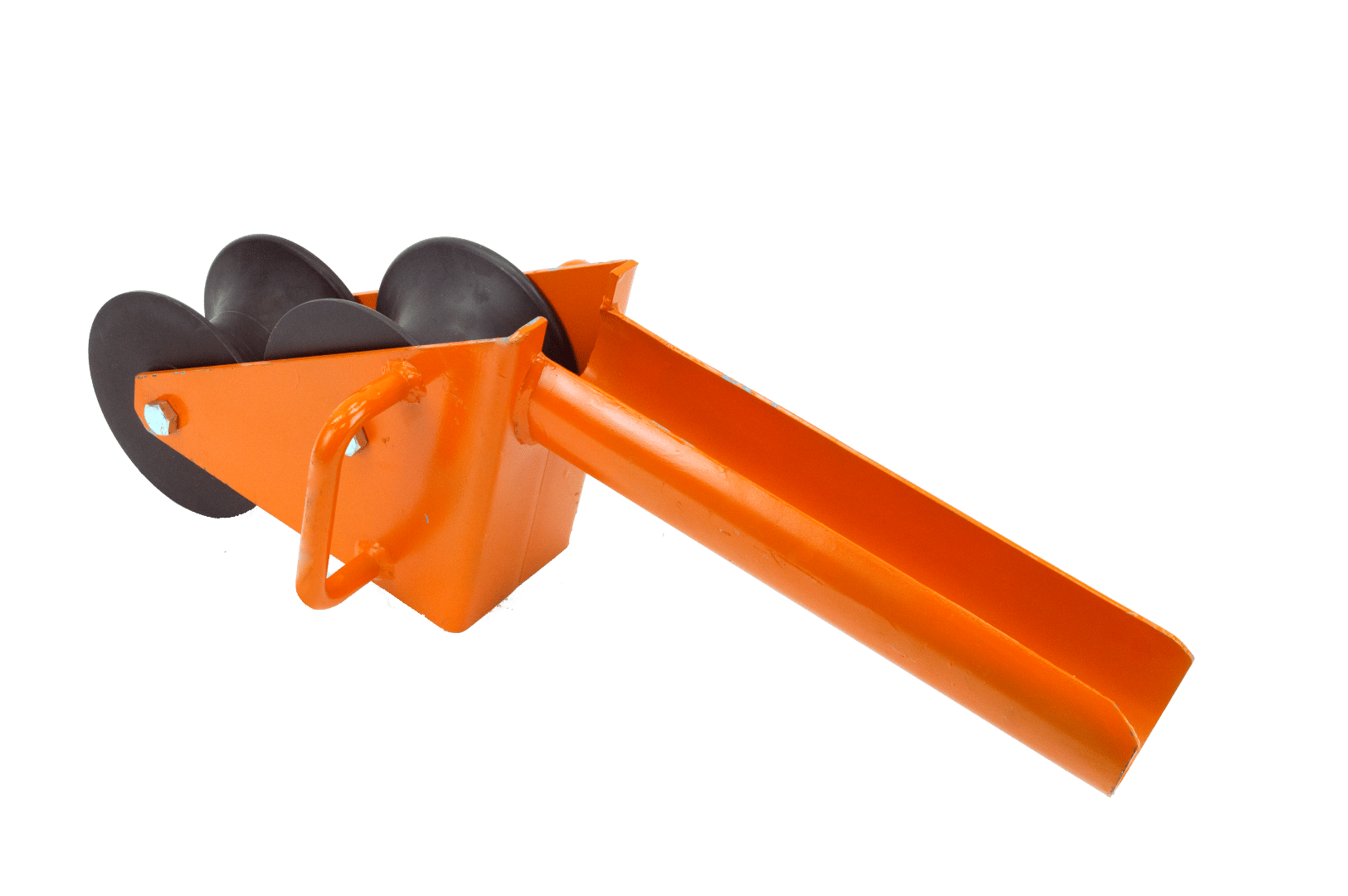

PROTECT CONDUIT AND CABLE WITH THIS UNDERGROUND BLOCK

The UG-72 underground block helps protect the conduit and cable. Specify conduit size when ordering. Must fit snugly in conduit.

KEY FEATURES

DESIGN

Easily installed in conduit. Two sheaves gives an effective bending radius of 18 in.

SIZING

Available in sizes to fit 2 in. through 6 in. conduit. Sheave Dimensions: 7 in. OD x 4-3/4 in. rim width; 2-1/8 in. groove radius accommodates up to 4 in. diameter cable.

CONFIGURATION

Slotted base allows for easy insertion, removal of pulling cable. Nylon sheave material. Net weight 40 lbs.

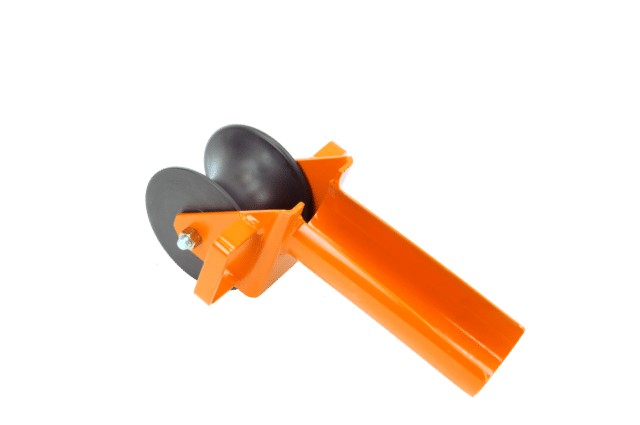

UG714-in7008001-Medium

ALL SPECIFICATIONS

UG-72 UNDERGROUND BLOCK

SPECIFICATIONS

UG-72-2-1/2″ PG, U, D.I., NY 7 DIA. x 4 3/4 2 30 lb STL
UG-72-3″ PG, U, D.I., NY 7 DIA. x 4 3/4 2 33 lb STL
UG-72-4″ PG, U, D.I., NY 7 DIA. x 4 3/4 2 36 lb STL
UG-72-5″ PG, U, D.I., NY 7 DIA. x 4 3/4 2 41 lb STL
UG-72-6″ PG, U, D.I., NY 7 DIA. x 4 3/4 2 45 lb STL
