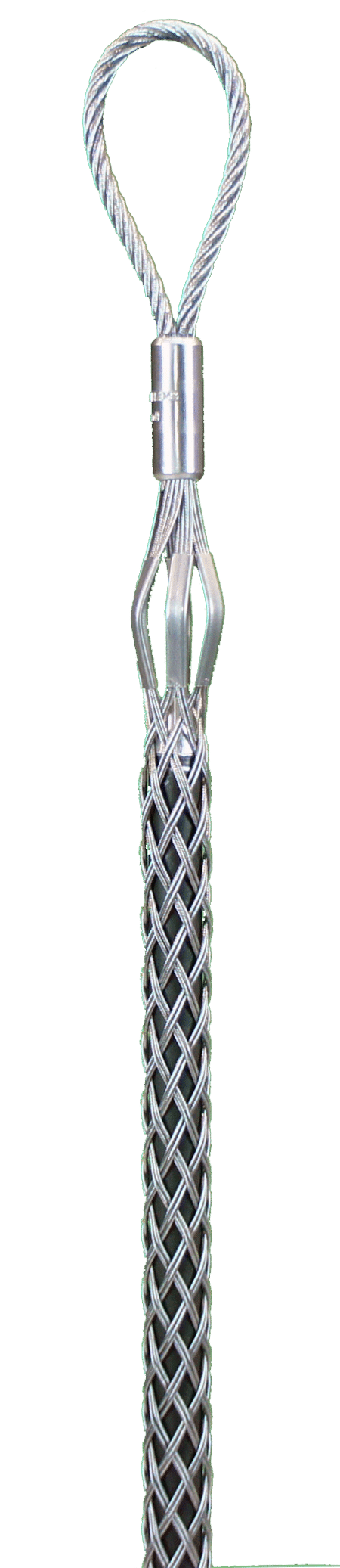

UNDERGROUND REPLACEMENT GRIPS
Choose from seven different grip size options
Underground replacement grips are high-strength, reliable, and easy to install. Many mesh and eye lengths are available with various max working loads and cable diameter ranges. Please see the chart below for size options.
All Specifications
UNDERGROUND REPLACEMENT GRIPS
SPECIFICATIONS
| Catalog no. | Cable Diameter Range, in. | Max Working Load, lbs. | Mesh Length at Nominal Diameter in. | Eye Length in. |
| 033-04-1091 | .75-.99 | 1,360 | 36 | 9 |
| 033-04-1092 | 1.00-1.49 | 1,920 | 36 | 9 |
| 033-04-1093 | 1.50-1.99 | 3,280 | 36 | 11 |
| 033-04-1094 | 2.00-2.49 | 3,700 | 36 | 12 |
| 033-04-1095 | 2.50-2.99 | 4,900 | 36 | 12 |
| 033-04-1096 | 3.00-3.49 | 4,900 | 36 | 14 |
| 033-04-1097 | 3.50-3.99 | 6,200 | 40 | 14 |
