TPVG-1424 V-Groove Puller Tensioner
4,000 LBS. MULTI-ROLE PULLER TENSIONER

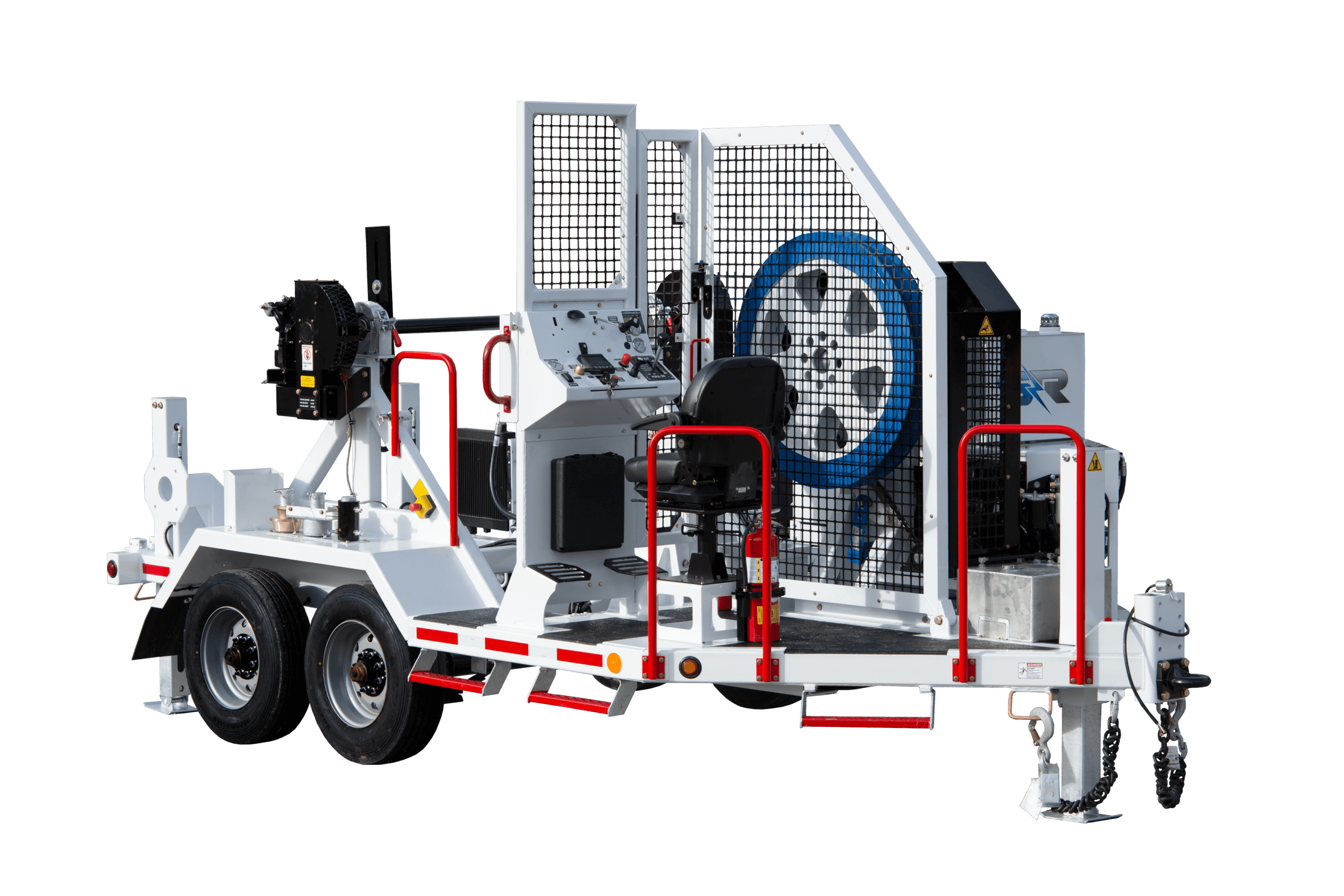

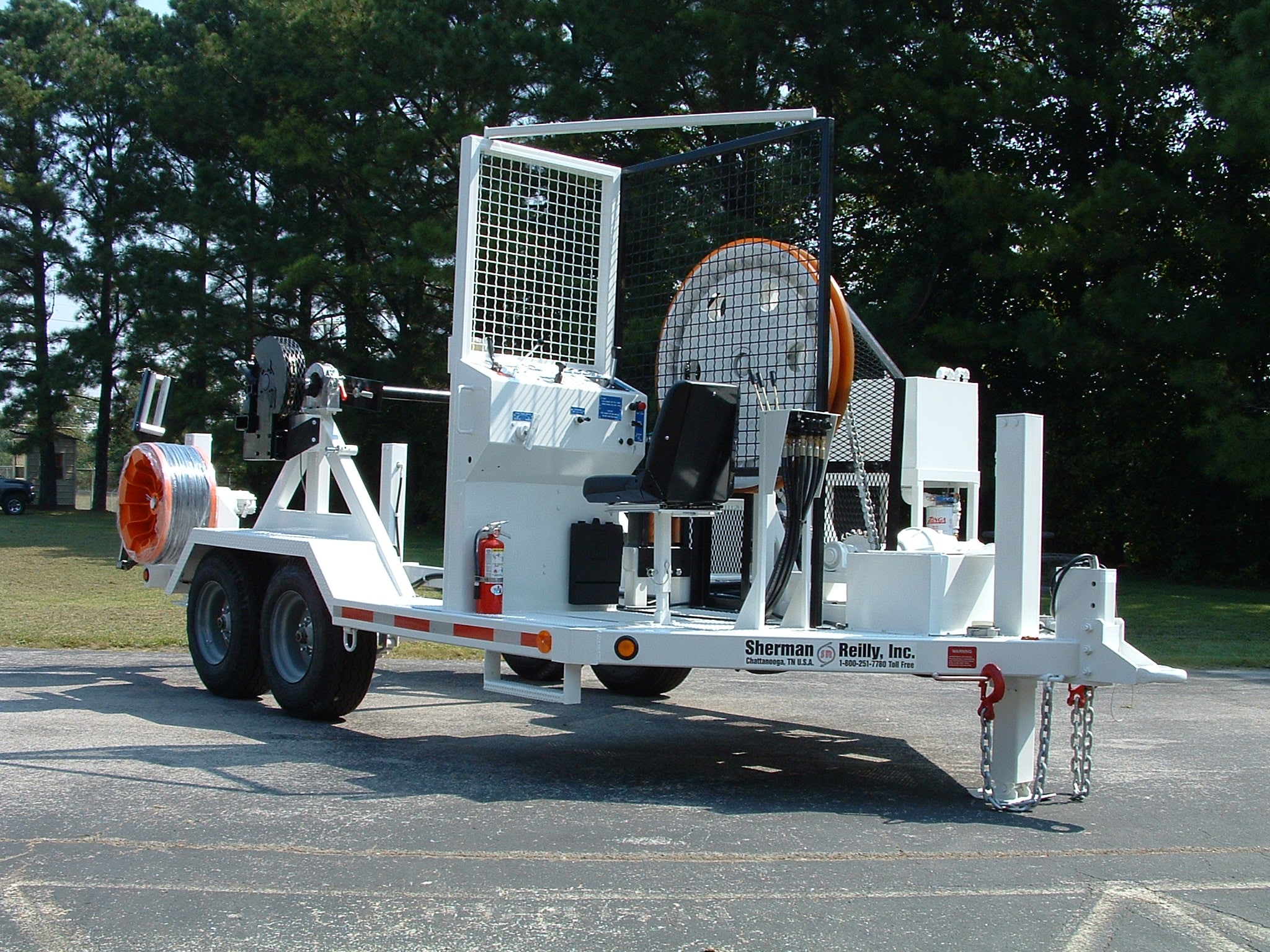

Capable of tensioning up to 4,000 lbs. at 4 mph, the Sherman+Reilly Model TP-1424-T V-Groove Puller Tensioner provides the ultimate in smooth tension control of single conductor through its purely controlled hydraulic system. Equipped with a 42” diameter v-groove bullwheel, cast with polyurethane and precision CNC machined for proper radius and depth. The “V” Groove tensioner is also equipped with an automatic emergency brake in case of loss of hydraulic pressure or power.
Key Features
CAPABILITY
DRUM CAPACITY
HYDRAULIC SYSTEM
OPERATOR’S STATION
Specifications
-
Maximum Tensioning Capacity
4,000 lbs.
-
Maximum Pulling Capacity
4,000 lbs.
-
Maximum Speed
4 mph
-
Bullwheel Size
42 in. dia.
-
Groove Diameter
(conductor) 1.5 in. dia.
-
Bottom of Groove
36 in. dia.
-
Groove Lining Material
Cast polyurethane 92 durometer A scale
-
Bullwheel V-Groove Profile
Precision machined CNC
-
Engine
Diesel, 37 Hp, water-cooled
-
Tensioning
(Hydraulic Motor) Planetary gearbox
(closed loop system) -
Final Drive
Chain and sprocket
-
Fail-Safe Brake
Hydraulic relieved / spring applied
-
Directional Controls
Variable speed, pressure and pre-set mode
-
Reel Capacity
1 reel carrier
-
Maximum Reel Width
54 in.
-
Maximum Reel Diameter
84 in.
-
Maximum Reel Weight
8,000 lbs.
-
Reel Shaft
2-5/8 in.
-
Payout Brake
16 in. aluminum/bronze caliper disc
-
Frame Construction
Steel tubing, continuous-weld
-
Length
(Overall, Nom.) 21 ft.
-
Width
(Overall, Nom.) 8 ft., 6 in.
-
Height
(Overall, Nom.) 8 ft., 8 in.
-
Weight*
7,076 lbs.
-
GVWR
16,000 lbs.
OPTIONS
- Solar battery charger
- Hydraulic retriever for reel control
- Spider® Pilot Line System with independent levelwind
- RDG-2100 Rotating Distribution Ground
- DG-4100 Running Ground
- RCR-60: Core: 24 in. to 18 in. tapered Total Outside Width: 39 in. (Flange Diameter: 60 in.)
- RDG-4100 Rotating Distribution Ground
All Specifications
TPVG-1424 V-Groove Puller Tensioner
-
Maximum Tensioning Capacity
4,000 lbs.
-
Maximum Pulling Capacity
4,000 lbs.
-
Maximum Speed
4 mph
-
Bullwheel Size
42 in. dia.
-
Groove Diameter
(conductor) 1.5 in. dia.
-
Bottom of Groove
36 in. dia.
-
Groove Lining Material
Cast polyurethane 92 durometer A scale
-
Bullwheel V-Groove Profile
Precision machined CNC
-
Engine
Diesel, 37 Hp, water-cooled
-
Tensioning
(Hydraulic Motor) Planetary gearbox (closed loop system)
-
Final Drive
Chain and sprocket
-
Fail-Safe Brake
Hydraulic relieved / spring applied
-
Directional Controls
Variable speed, pressure and pre-set mode
-
Reel Capacity
1 reel carrier
-
Maximum Reel Width
54 in.
-
Maximum Reel Diameter
84 in.
-
Maximum Reel Weight
8,000 lbs.
-
Reel Shaft
2-5/8 in.
-
Payout Brake
16 in. aluminum/bronze caliper disc
-
Frame Construction
Steel tubing, continuous-weld
-
Length
(Overall, Nom.) 21 ft.
-
Width
(Overall, Nom.) 8 ft., 6 in.
-
Height
(Overall, Nom.) 8 ft., 8 in.
-
Weight*
7,076 lbs.
-
GVWR
16,000 lbs.
