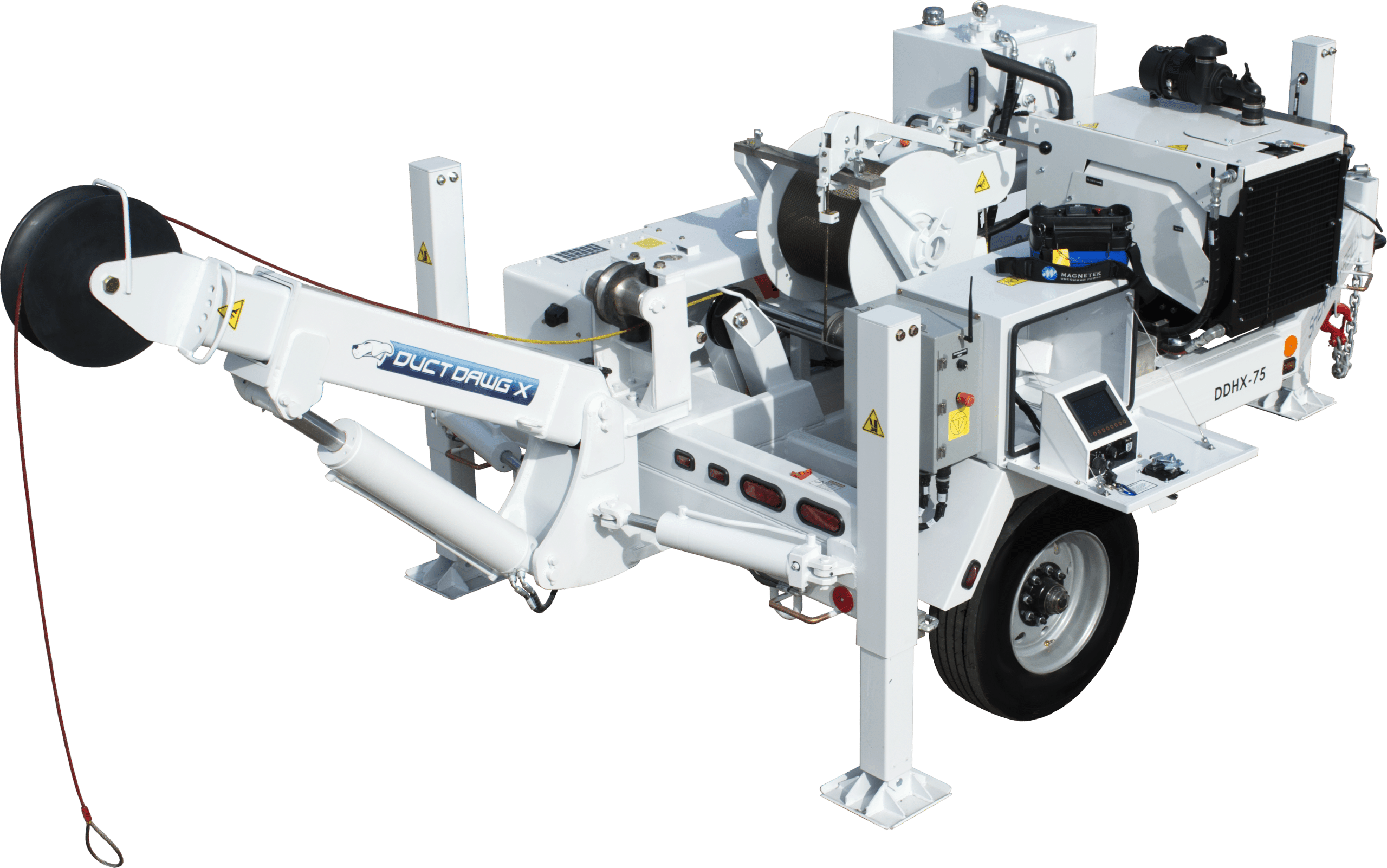

DDHX-75/100 Underground Puller
Key Features
CAPABILITY
HYDRAULIC SYSTEM
OPERATOR’S STATION
Pulling Rope
DDHXA-100 7/16 in., 6 x 25 XIP IWRC steel wire rope, 2,200 ft.
Specifications
-
Pulling capacity Max:
7,500/10,000 lbs
-
Bullwheels:
Twin capstan, 6 in. dia., 5-groove followed by 6-groove/ Twin capstan, 7 in. dia., 5-groove followed by 6-groove
-
Engine:
49 peak Hp, Diesel, water-cooled, electric start
-
Pulling Rope:
3/8 in., 6 x 25 XIP IWRC steel wire rope, 2,000 ft./ 7/16 in., 6 x 25 XIP IWRC steel wire rope, 2,200 ft
-
Frame construction:
Steel tubing, continuous-weld
-
Length, overall, nominal:
16 ft. 9 in.
-
Width, overall, nominal:
95 in.
-
Height, overall, nominal:
114 in.
-
Weight, nominal:
7,200 lbs. with rope/7,400 lbs. with rope
OPTIONS
- Strobe Light
- Solar Battery Charger
- Submersible Pumps
- Air Adapter Kits
- Underground Blocks Available
- Self-priming, compact, high-impact trainer housing pump
- See utility tools
All Specifications
DDHX-75/100 Underground Puller
Primary operational control is provided via a remote control which allows the operator complete locational flexibility. This also lowers the risk of “touch potential” when pulling in proximity to energized environments. The remote controller’s graphic system displays relevant pull information, including direction, line tension, line footage, and speed, as well as battery and connectivity strength. CANbus technology provides for accurate real-time display readouts of the machine system status.
The 3-speed gearbox allows for smooth operation with potential pulling and payout speeds between 0 to 120 feet per minute and an on demand payout of up to 285 feet per minute. All on the continuous welded, heavy-duty frame, the pulling backbone is provided by hydraulically driven twin capstan 6-inch bullwheels (5 and 6 groove) with forward, reverse, and demand payout capabilities in each gear.
The control system and remote control are located in a lockable control box to prohibit unauthorized use. A custom toolbox insert organizes, secures, and protects air adapters and dies, while still providing room for sheaves and other tools.
-
Tensioning Capacity
Min. 600 lbs., max: 8,000 lbs.
-
Maximum Line Speed
4 mph
-
Controls
Digital with real-time tension monitoring and recording
-
Drive System
Direct Drive: hydraulic motor, bullwheel
-
Drive System Engine
Hydraulic with Webasto Arctic Pack
-
Bullwheels
Core Diameter: 60 in. Count: 2 Groove Count: 5 Groove Radius: 1 in. Groove Lining: Polyurethane Bottom of Groove: 57.75 in. dia.
-
Tension Brake
Hydraulic, motor-driven
-
Brake Control
Automatic, per operator setting
-
Engine
72 Hp, Water-Cooled, Deutz TD2.9 L4, T4 Final
-
Hydraulic Fluid
ISO Grade 32
-
Hydraulic Reservoir
20 gallon
-
Fuel Capacity
13.7 gallon
-
Fail-Safe Brake
Spring-applied, released by hydraulic pressure
-
Fairlead Rollers
(1) Front and (1) Rear
-
Operator’s Safety Enclosure
Safe-Zone® Cab, fully-enclosed / single door
-
Frame Construction
Steel tubing
-
Length
(Overall, Nom.) 22 ft.
-
Width
(Overall, Nom.) 8 ft., 3 in.
-
Height
(Overall, Nom.) 11 ft., 3 in.
-
Weight*
15,000 lbs.
-
GVWR
17,500 lbs.
-
Suspension
Leaf-spring
-
Axle Configuration
Tandem
-
Wheel Configuration & Tires
Single, 245/70R17.5
-
Brakes
(Trailer) Electric, with break-away switch
-
Towing Attachment
3 in. pintle eye, with two safety chains and hooks
-
Tie Downs
(4) 5/8 in. dia. Steel D-Strings
-
Tie Off Points
(2) at rear 12,000 lbs.
-
Battery
Split 12/24 VDC
-
Grounding
3/4 in. dia. Copper-clad Steel ground loops (4)
-
Wheel Chocks
Standard
-
Fire Extinguisher
ABC
-
Color
S+R White
-
Safety Chains
2 ea., with hooks
-
Front/Tongue Jacks
Hydraulic, with shoe
-
Corner Stability Jacks
2 Hydraulic, vertical cylinder type, with shoe
-
Electrical System
24VDC
-
Lights, Navigation
USDOT, LED, 12 VDC
-
Lights, Work Site
Cab top floods
-
Deck Cover
Non-Slip surface
-
Synchronized Tensioning
Up to 3 machines
-
PLC Machine Control
CANbus Technology
-
Data Logging
Removable / Replaceable Memory Card
-
Reel Hydraulic Circuits
(2) front and back
DDHXA-75 DDHXA-100 |
DDHXA-100 |
|
| Length: (Overall, Nom.) | 34 ft. 6 in. | 27 ft., 6 in. |
| Width: (Overall, Nom.) | 8 ft., 6 in. | 8 ft., 6 in. |
| Height: (Overall, Nom.) | ;12 ft., 4 in. | 11 ft., 10 in. |
| Weight*: (Nom.) | 30,920 lbs. | 27,660 lbs. |
| GVWR: | 55,500 lbs. | 28,500 lbs. |
| Suspension: | Air ride | HD Leaf-spring |
| Axle Configuration: | Tandem | Tandem |
| Wheel Configuration and Tires: |
Double, 275/70R 22.5 | Double, 235/75R 17.5 |
| Brakes: (Trailer); | Air | Electric |
| Towing Attachment: | 5th Wheel, 2 in. king pin | 3 in. pintle eye |
| Tie Downs: (2) | 1 in. dia. steel D-Rings | 1 in. dia. steel D-Rings |
| Rear (R/L) Jacks: | (2) Hydraulic, vertical cylinder type, with shoe |
Hydraulic, with shoe, anti-slide |
| Front Jacks: (2) | (1) Hydraulic, vertical cylinder type, with shoe |
Hydraulic, vertical cylinder type, with shoe |
| Electric System: | Split 12/24 VDC | Split 12/24 VDC |
| Battery: | Split 12/24 | Split 12/24 |
| Lights / Navigation | 12 V, LED, U.S. DOTapproved | 12 V, LED, U.S. DOTapproved |
| Exterior Work Lighting: (2) | Cab-top, flood | Cab-top, flood |
| Grounding: (4) | 3/4 in. dia. Copper-Clad steel loops |
3/4 in. dia. Copper-Clad steel loops |
| Wheel Chocks: | Standard | Standard |
| Fire Extinguisher: | ABC | ABC |
| Color: | S+R White | S+R White |
