TURRET REEL TRAILERS – TRT-384 – THREE REEL TRAILER
TRT-384 – Three REEL Trailer

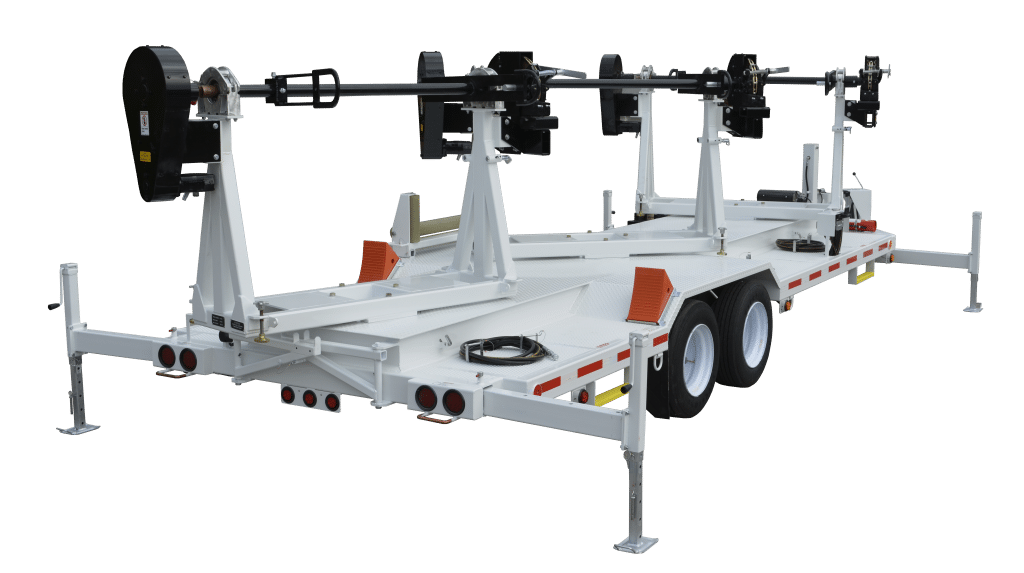

The Sherman+Reilly TRT-384/60 is a three reel trailer for transporting and deploying power-distribution or transmission conductor and optical-fiber cable. It has the capability of independently orienting the direction of payout from up to three separate reels without having to re-position the trailer.
SPECIFICATIONS
Maximum Reel Weight*
21,000 lbs.: 7,000 lbs. (Electric Brake) 24,000 lbs.: 8,000 lbs. (Air Brake)
Maximum Reel Size
84 in. OD x 60 in. wide
Reel Shaft Diameter
2-5/8 in.
Turret Rotation Range
360º, lockable at 15º increments
Frame Construction
Steel tubing, continuous-weld
Length, overall, nom.
30 ft. 11 in.
Width, overall, nom.
8 ft. 6 in.
Height, overall, nom.
9 ft. without reels
Height with 84″ O.D. Reel
10 ft., 9 in.
Weight 21K*
10,170 lbs. without conductor or reel (Electric Brake)
Weight 24K*
14,320 lbs. without conductor or reel (Air Brake)
GVWR
21,000 lbs.: 33,800 lbs. 24,000 lbs.: 38,500 lbs.
Suspension
Leaf-spring, heavy duty
Axle Configuration
Dual (tandem)
Wheel Configuration & Tires
Dual, 215/75R17.5H
Brakes, trailer
Air: 24,000 lbs. unit only Electric, with safety break-away switch: 21,000 unit
Front/Nose Jack
Screw-type, with shoe
Outriggers
Slide-out with pin, screw-type leg with shoe, 4 ea.
Tie-Downs
D-rings, 4 ea., 2 per side
Towing Attachment
3 in. adjustable pintle eye
Safety Chains
2 ea., with hook
Lights, navigation
US DOT, LED, 12 V
Grounding
3/4 in. dia. copper-clad steel loops, 4 ea.
Paint
S+R White
OPTIONS
Electric Over Hydraulic Payout Brakes
Hydraulic Retriever*
*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.
20 Hp Powerpack
Hydraulic Front Jack
Hydraulic Outrigger Jack TRT-384/60-24K
Gathering Window and Bed Rollers
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground
Solar Battery Charger
Spider® Pilot Line System with independent levelwind
