Turret Two Reel Trailer – TRT-284
TRT-284 – Two REEL Trailer

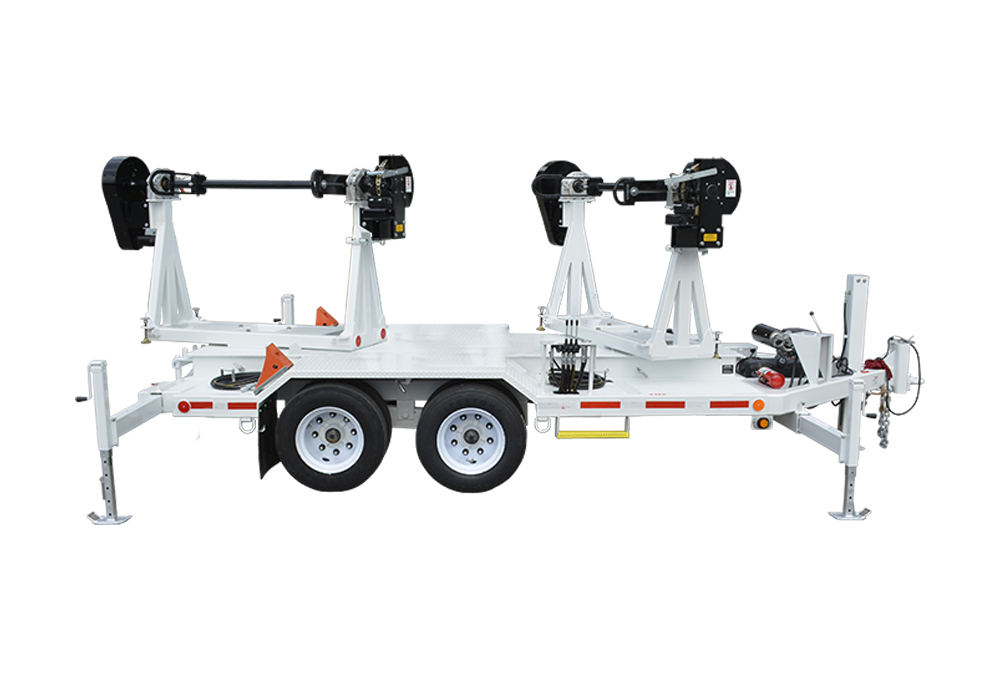

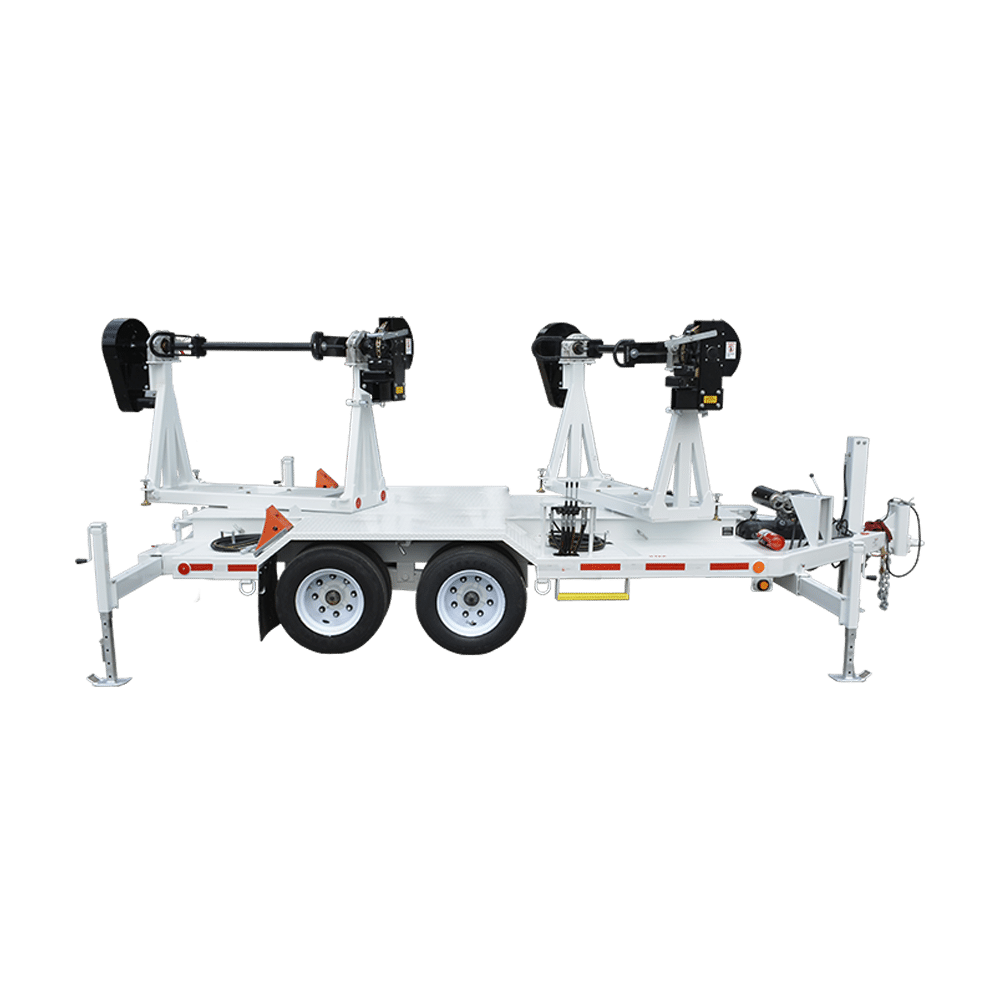

The Sherman+Reilly TRT-284/60 is a two reel trailer for transporting and deploying power-distribution or transmission conductor and optical-fiber cable. It also has the capability of independently orienting the direction of payout from the separate reels without having to re-position the trailer.
SPECIFICATIONS
Maximum Reel Weight*
7,000 lbs.
Maximum Reel Size
84 in. OD x 60 in wide
Reel Shaft Diameter
2-5/8 in.
Turret Rotation Range
360º, lockable at 15º increments
Frame Construction
Steel tubing, continuous-weld
Length, overall, nom.
21 ft., 6 in.
Width, overall, nom.
8 ft., 4 in.
Height, overall, nom.
8 ft., 8 in., without reel
Height with 84″ O.D. Reel
10 ft., 5 in.
Weight*
6,750 lbs., without conductor or reel
GVWR
21,000 lbs.
Suspension
Leaf-spring
Axle Configuration
Tandem
Wheel Configuration & Tires
Single, 215/75R17.5
Brakes, trailer
Electric, with break-away switch
Front/Nose Jack
Manual screw type, with shoe
Outriggers
Manual slide-out w/pin, screw-type leg w/shoe
Towing Attachment
3 in. adjustable pintle eye
Safety Chains
2 ea., with hook
Lights, navigation
US DOT, LED, 12 V
Paint
S+R White
OPTIONS
Electric Over Hydraulic Payout Brakes
Hydraulic Retriever*
*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.
20 Hp Powerpack
Hydraulic Front Jack
Hydraulic Outrigger Jack TRT-384/60-24K
Gathering Window and Bed Rollers
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground
Solar Battery Charger
Spider® Pilot Line System with independent levelwind
