TRT-184 – SINGLE REEL Trailer

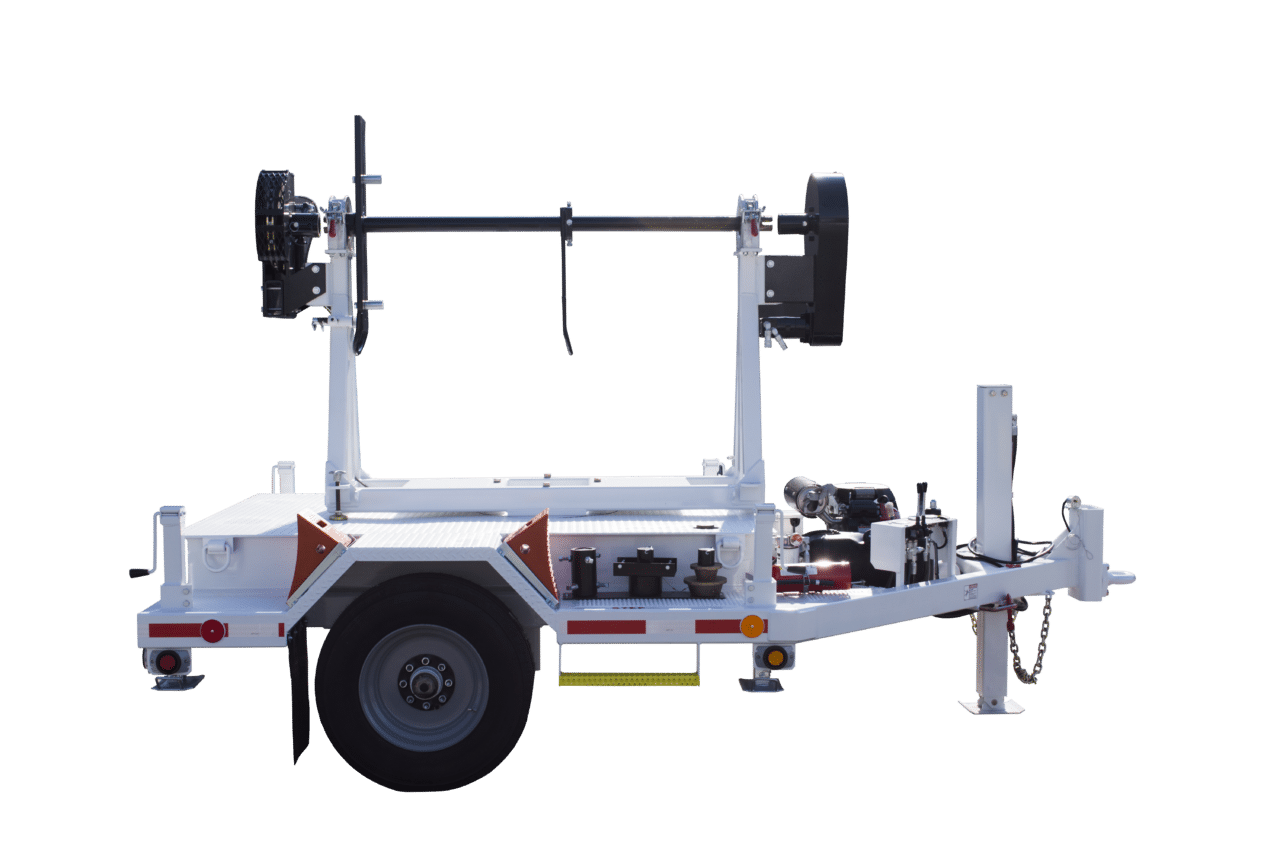

The Sherman+Reilly TRT-184/60 is a single reel trailer for transporting and deploying power-distribution or transmission conductor and optical-fiber cable. It has the capability of independently orienting the direction of payout without having to re-position the trailer.
Capable of handling reels up to 84 in. OD by 60 in. wide, weighing up to 7,000 lbs. The rotating turret may be locked at 15 different intervals. The shaft and drive bars can be coupled to a 16 in. diameter ventilated Al-bronze caliper/disc tension brake. Also, the turret can also be removed, leaving a flat deck with tie-downs, allowing the transportation of other equipment.
Turret reel trailer equipment includes DOT lighting, adjustable front pintle eye, safety chains and hooks, grounding lug, and electric brakes. Additionally at each corner is an adjustable jack for stability during tough pulls.
Maximum Reel Weight*
Maximum Reel Size
84 in. OD x 60 in wide
Reel Shaft Diameter
16 in. dia. disc, bronze
Turret Rotation Range
360º, lockable at 15º increments
Steel tubing, continuous-weld
Length, overall, nom.
13 ft. 4 in.
Width, overall, nom.
Height, overall, nom.
8 ft., 9 in., without reel
Height to Reel Centerline
10 ft., 6 in.
4,600 lbs., without conductor or reel
Wheel Configuration & Tires
Electric with break‑away switch
Manual Screw Type with shoe
Corner Stability Jacks
Screw type, with shoe, 4 ea.
D-rings, 1 ea. at platform corners
3 in. adjustable pintle eye
2 ea., with hook
US DOT, LED, 12 VDC
Electric Over Hydraulic Payout Brakes
20 Hp Powerpack
Hydraulic Front Jack
Hydraulic Outrigger Jack TRT-384/60-24K
Gathering Window and Bed Rollers
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground
Solar Battery Charger
Spider® Pilot Line System with independent levelwind
