About the CRS-96/67

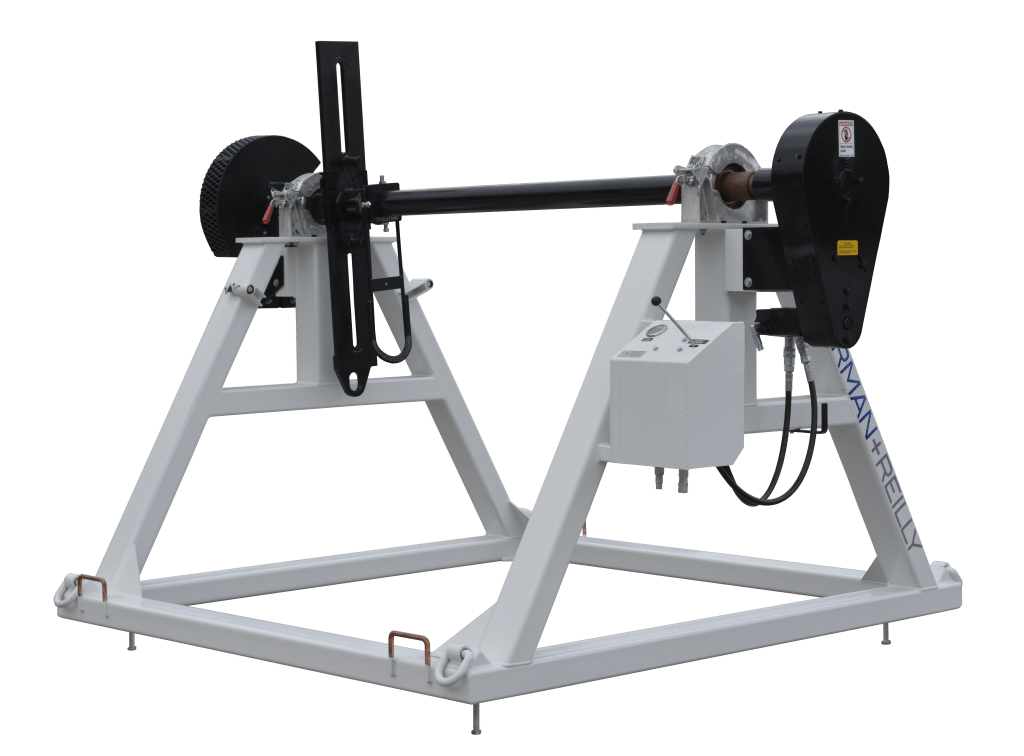

The Sherman+Reilly CRS-96/67 Conductor Reel Stand is for stationary holding/supporting of reels for dispensing conductor from a fixed position. Maximum reel size for the CRS-96/67 is 96 in. OD by 67 in. wide with a reel capacity of 20,000 lbs.

It is constructed of structural grade steel tubing, also all components are welded for maximum rigidity. The CRS-96/67 features integrated manual controls for the optimal hydraulic retrievers*.

*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.

Coupled with a compatible tensioner, such as the T-2608 or T-7212, it can be automatically controlled by the tensioning equipment. Quick-disconnect fittings allow for rapid setup. Furthermore, this stand has a manual, mechanical payout brake.

In addition, each conductor reel stand is equipped with four (4) anchoring rings at each corner which make it easy for operators to further secure.

▪ Constructed with structural-grade steel tubing

▪ Coupled with a compatible tensioner, it can be hydraulically controlled by:

• Sherman+Reilly T-1608
• Sherman+Reilly T-2608
• Sherman+Reilly T-7212
• Sherman+Reilly PTR-7230
• Sherman+Reilly PTR-7240

▪ Disc-caliper payout brake for controlled tail-tension

▪ Quick-disconnect hydraulic fittings allow for rapid set up with purchase of Hydraulic Retriever* Package

*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.

▪ Anchor rings and grounding bars at each corner

For More Information about the CRS-96/67 contact your local Sherman+Reilly Representative.
