CRS-108/83 Stand
CRS-108/83 – 30,000 LBS. MAX CAPACITY

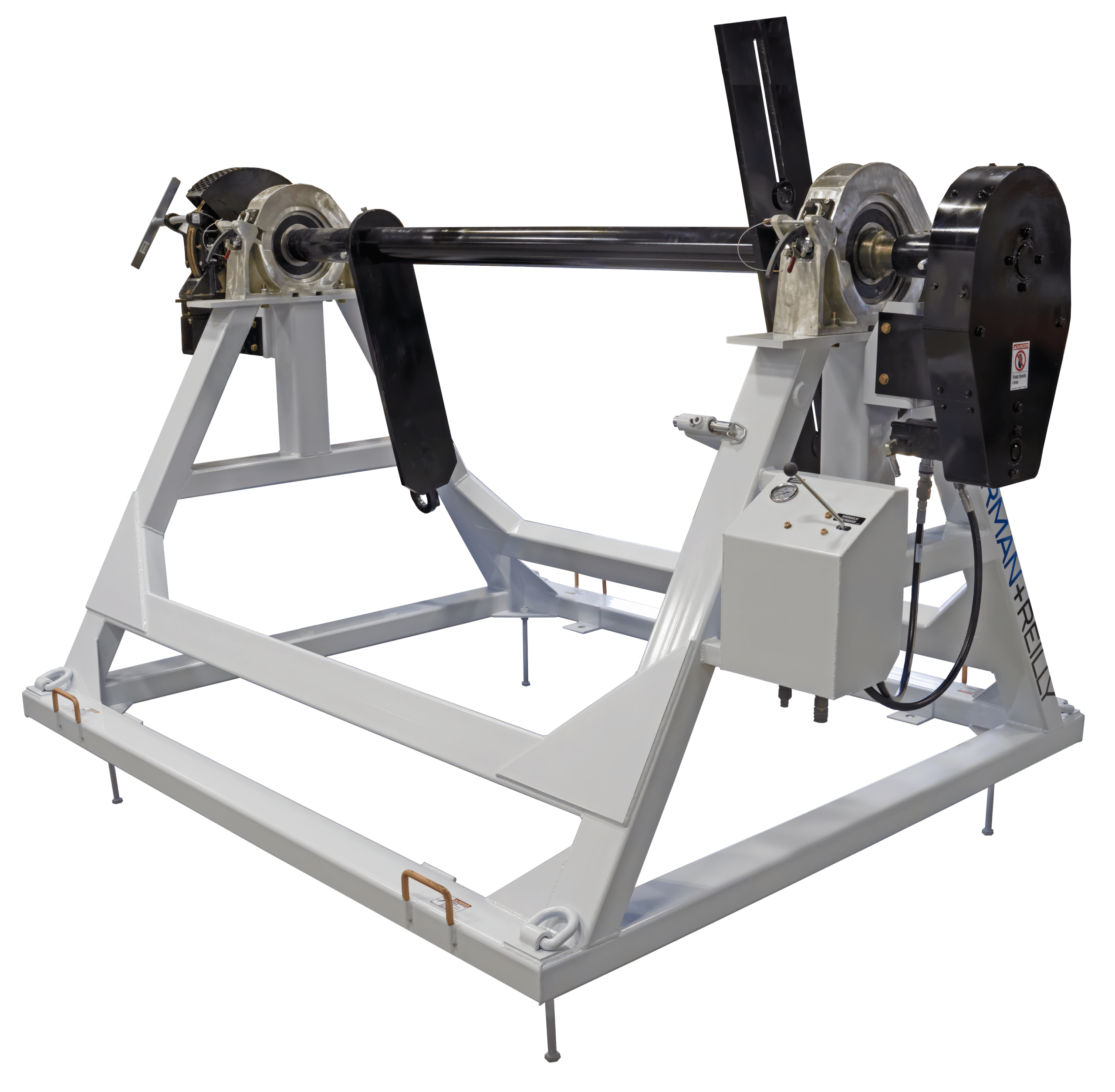

The Sherman+Reilly CRS-108/83 Reel Stands are for stationary holding/supporting of reels for dispensing conductor from a fixed position.
The CRS-108/83 reel stand maximum reel size is 108 in. OD x 83 in. wide. This model has two options, the CRS-108/83-20k with a maximum reel weight of 20,000 and a drive bar diameter of 3-15/16 in. or the CRS-108/83-30k with a 30,000 maximum reel weight and a drive bar diameter of 5 in.
KEY FEATURES
CAPABILITY
CRS-108/83 maximum reel size 108 in. OD x 83 in. wide.
CRS-108/83-20k maximum reel weight 20,000,
CRS-108/83-30k maximum reel weight 30,000.
OPERATION
Disc-caliper payout brake for controlled tail-tension. With purchase of hydraulic retriever* package, quick-disconnect hydraulic fittings allow for rapid set up.
*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.
CONFIGURATION
Frame configuration is a reinforced truss on a rectangular base. Constructed with structural-grade steel tubing with anchor rings and grounding bars at each corner.
OPTIONS
Coupled with a compatible tensioner, it can be hydraulically controlled by:
• Sherman+Reilly T-1608
• Sherman+Reilly T-2608
• Sherman+Reilly T-7212
• Sherman+Reilly PTR-7230
• Sherman+Reilly PTR-7240
SPECIFICATIONS
ALL SPECIFICATIONS
CRS-108/83 Stand
About the CRS-108/83
The Sherman+Reilly CRS-108-83 Reel Stand is for stationary holding/supporting of reels for dispensing conductor from a fixed position. Maximum reel size for the CRS-108/83 is 108 in. OD by 83 in. wide. The CRS-108/83-20k maximum reel weight is 20,000 lbs. The CRS-108/83-30k has a maximum reel weight of 30,000 lbs.
Constructed of structural grade steel tubing, all components are welded for maximum rigidity. The CRS-108/83 features integrated manual controls for the optimal hydraulic retrievers*. Coupled with a compatible tensioner, such as the T-2608 or T-7212, it can be automatically controlled by the tensioning equipment. Quick-disconnect fittings allow for rapid setup. This stand has a manual, mechanical payout brake.
*Hydraulic Retriever Performance: Approximately 20,000 in-lb at 7 GPM and 2,000 PSI. Do not exceed 12 GPM and 3,000 PSI.
Each stand is equipped with four (4) anchoring rings at each corner which make it easy for operators to further secure.
▪ Constructed with structural-grade steel tubing
▪ Coupled with a compatible tensioner, it can be hydraulically controlled by:
• Sherman+Reilly T-1608
• Sherman+Reilly T-2608
• Sherman+Reilly T-7212
• Sherman+Reilly PTR-7230
• Sherman+Reilly PTR-7240
▪ Disc-caliper payout brake for controlled tail-tension
▪ Quick-disconnect hydraulic fittings allow for rapid set up with purchase of Hydraulic Retriever Package
▪ Anchor rings and grounding bars at each corner
For More Information about the CRS-108/83 contact your local Sherman+Reilly Representative.
CRS-96/67-20k
Maximum Reel Size
96 in. OD x 67 in. wide
Maximum Reel Weight
20,000 lbs. static at full width
Payout Brake
Manual, 20 in. dia. disc. Aluminum‑bronze
Frame Configuration
Reinforced truss on rectangular base
Frame Construction
High-strength steel tubing
Length, overall, nom.
10 ft., 10 in.
Width, overall, nom.
8 ft.
Height, overall, nom.
6 ft., 2 in., without reel
Grounding
3/4 in. dia. copper ground loops (4)
Tie-Downs
1 in. dia. Steel D-Rings (4)
Paint
S+R White
Drive Bar Diameter
2-5/8 in.
CRS-96/67-24k
Maximum Reel Size
96 in. OD x 67 in. wide
Maximum Reel Weight
24,000 lbs. static at full width
Payout Brake
Manual, 20 in. dia. disc. Aluminum‑bronze
Frame Configuration
Reinforced truss on rectangular base
Frame Construction
High-strength steel tubing
Length, overall, nom.
10 ft., 10 in.
Width, overall, nom.
8 ft.
Height, overall, nom.
6 ft., 2 in., without reel
Grounding
3/4 in. dia. copper ground loops (4)
Tie-Downs
1 in. dia. Steel D-Rings (4)
Paint
S+R White
Drive Bar Diameter
5 in.
CRS-108/83-20k
Maximum Reel Size
108 in. OD x 83 in. wide
Maximum Reel Weight
20,000 static at full width
Payout Brake
Manual 20 in. dia. disc. Aluminum
Frame Configuration
Reinforced truss on rectangular base
Frame Construction
High-strength steel tubing
Length, overall, nom.
11 ft., 11 in.
Width, overall, nom.
8 ft.
Height, overall, nom.
6 ft., 5 in.
Grounding
3/4 in. dia. copper ground loops (4)
Tie-Downs
1 in. dia. Steel D-Rings (4)
Paint
S+R White
Drive Bar Diameter
3-15/16 in.
CRS-108/83-30k
Maximum Reel Size
108 in. OD x 83 in. wide
Maximum Reel Weight
30,000 static at full width
Payout Brake
Manual 20 in. dia. disc. Aluminum
Frame Configuration
Reinforced truss on rectangular base
Frame Construction
High-strength steel tubing
Length, overall, nom.
11 ft., 11 in.
Width, overall, nom.
8 ft.
Height, overall, nom.
6 ft., 5 in.
Grounding
3/4 in. dia. copper ground loops (4)
Tie-Downs
1 in. dia. Steel D-Rings (4)
Paint
S+R White
Drive Bar Diameter
5 in.
