CRT-196/67 & CRT-472/52 REEL TRAILERS

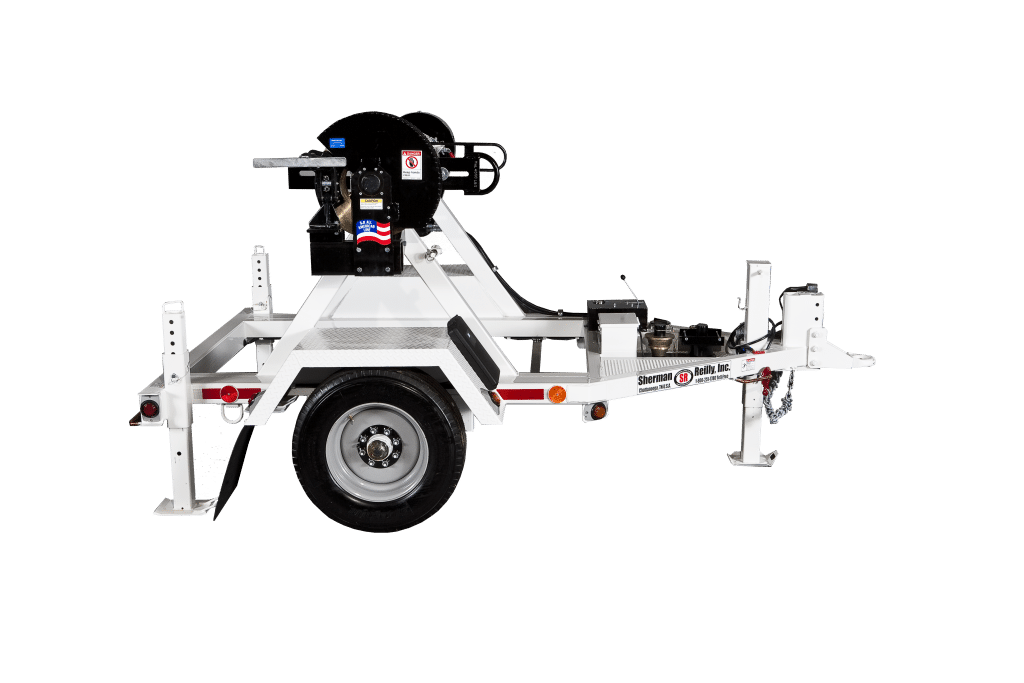

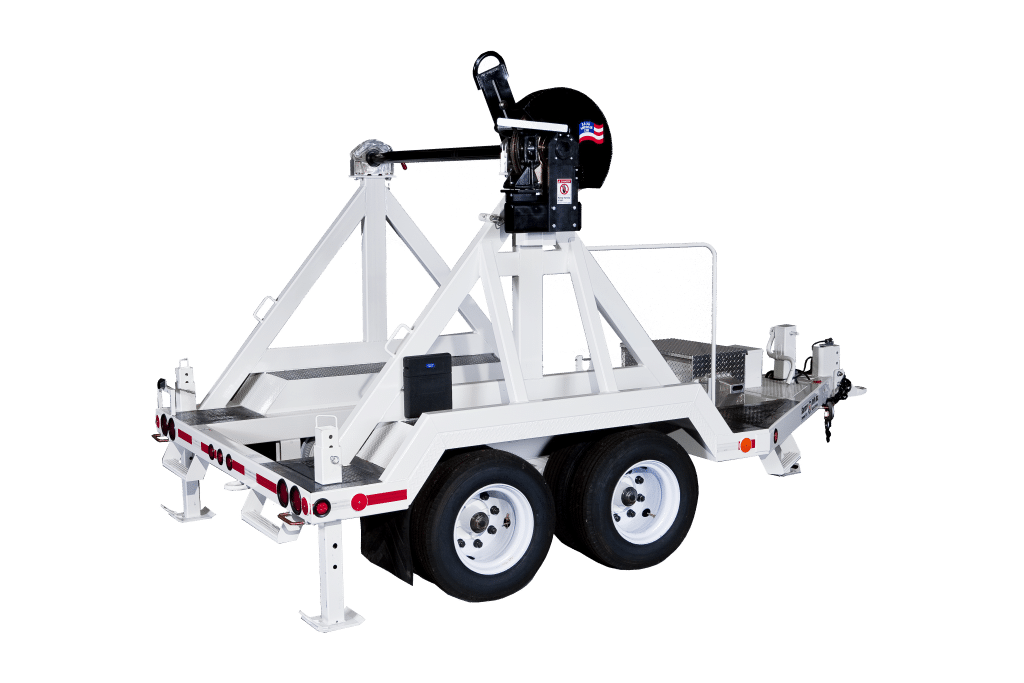

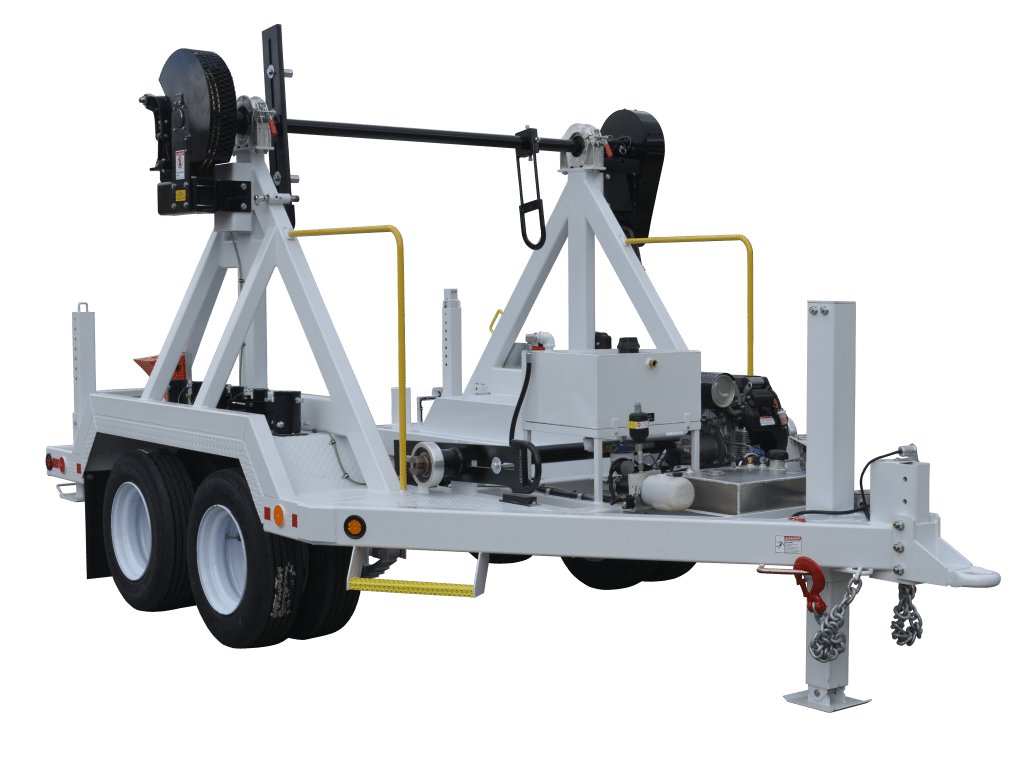

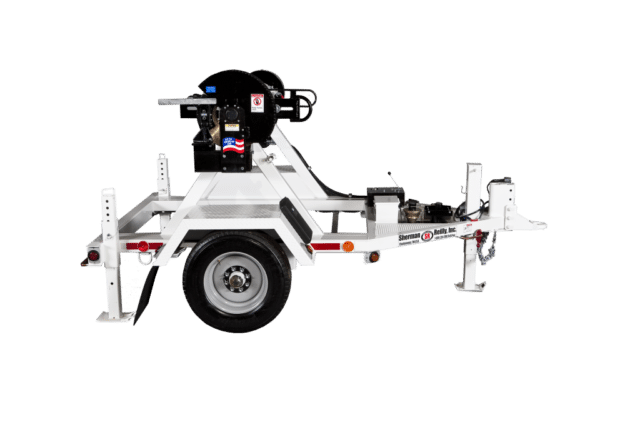

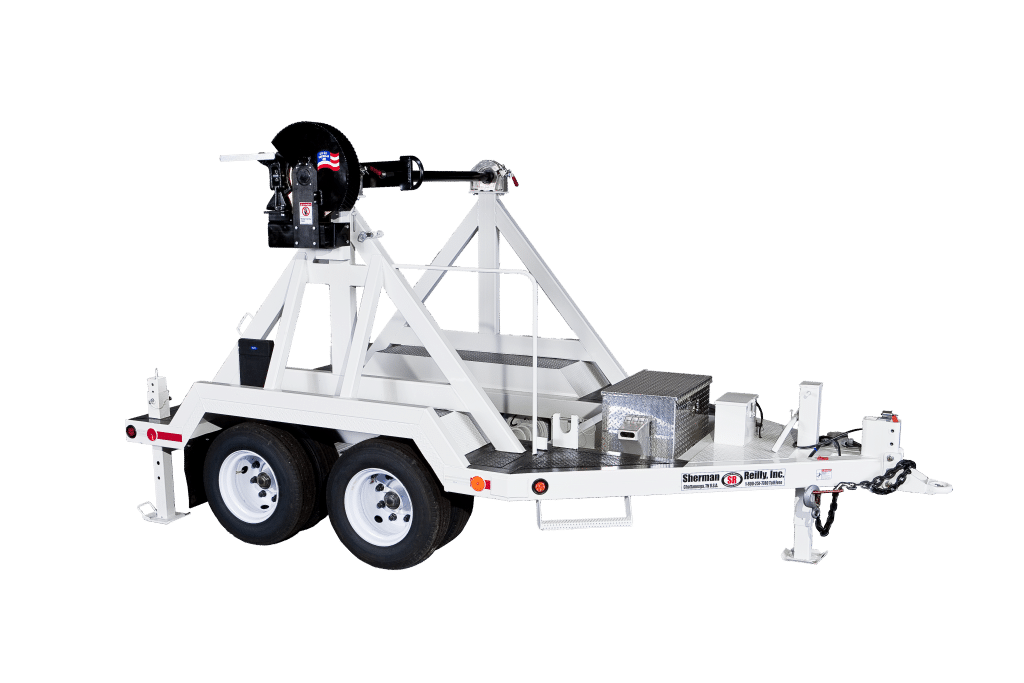

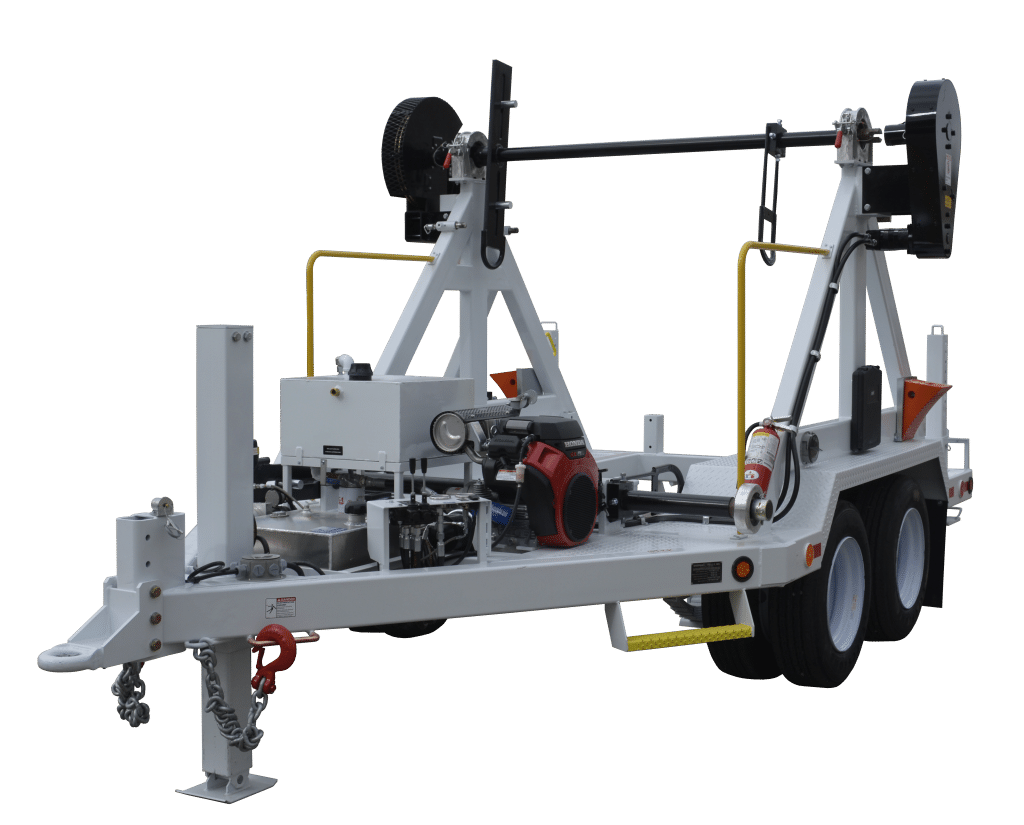

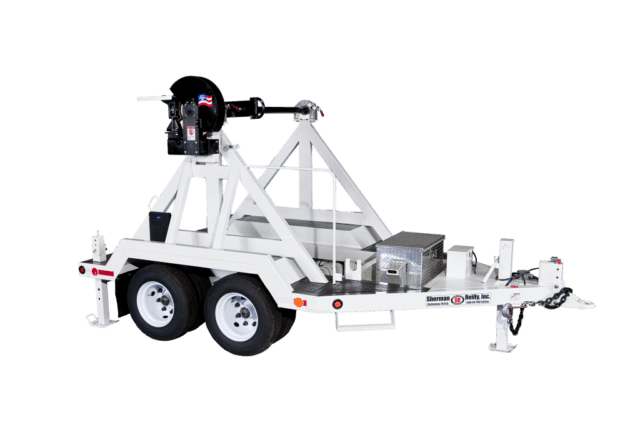

CRT-196/67 – ONE REEL | CRT-472/52 – FOUR REELS Trailer

The CRT-196/67 one reel or CRT-472/52 four reel trailers are conductor trailers built for transporting and tensioning. Both feature quick-release reel shaft bearings for easy and safe reel changes. Several add-ons are available to choose from for these units.

Download Spec Sheet
Contact Us

KEY FEATURES

CAPABILITY

CRT-196/67 One reel. 20,000 lbs. maximum reel weight. Max reel size 96 in. OD x 67 in. wide.

CRT-472/52 Four reels. 24,000 lbs. maximum reel weight (6,000 lbs. per reel). Max reel size 72 in. OD x 52 in. wide.

OPERATION

Quick-release reel shaft bearings for easy and safe reel change.

CONFIGURATION

Available in a single reel and four-reel trailer configuration. Reel brake equipped with an aluminum-bronze ventilated disc. Continuous-weld steel tubing. Tandem axle configuration.

OPTIONS

Hydraulic front and rear jacks available. Air brakes, RDG-2100 Rotating Distribution Ground, DG-4100 Running Ground, and 20 Hp powerpack optional.

SPECIFICATIONS

Print Specifications
Click Here for all Specs

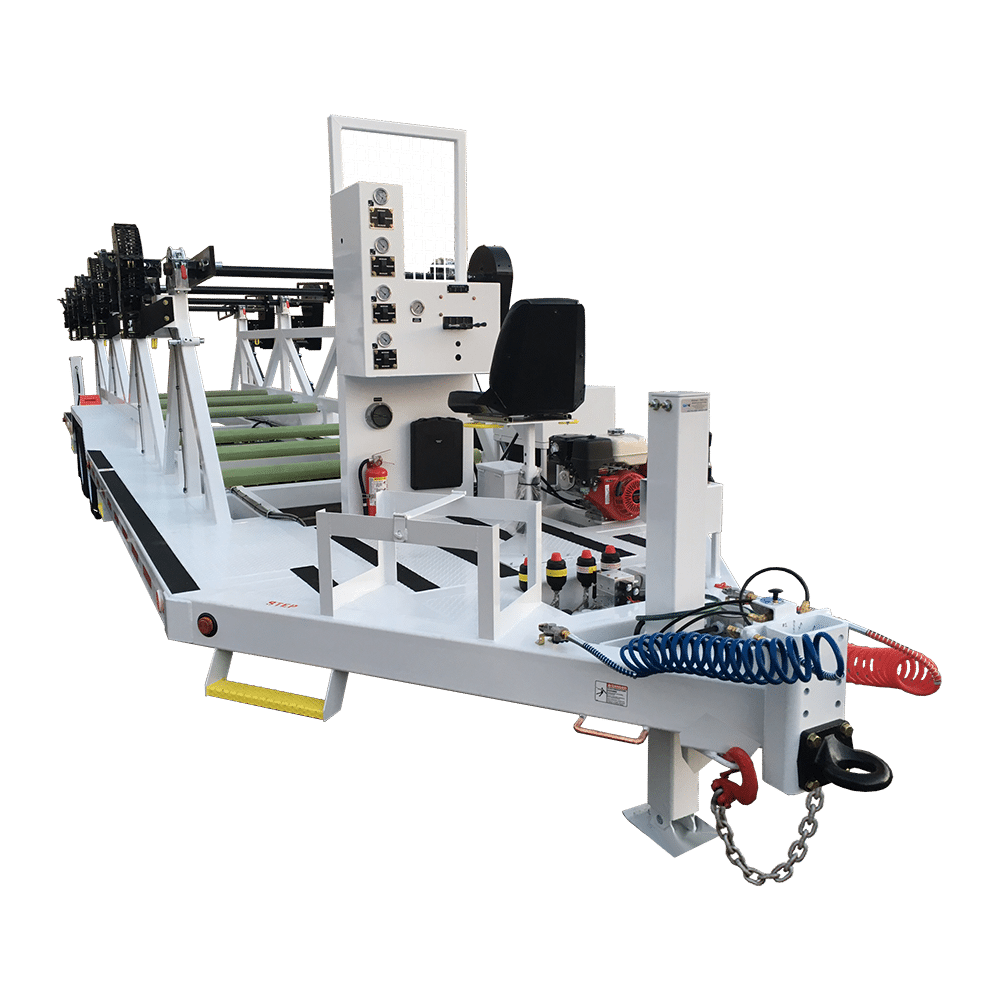

CRT-472-Sherman-Reilly-1000px

OPTIONS

Hydraulic Front Jack

Rear Hydraulic Jacks

20 Hp Powerpack

RDG-2100 Rotating Distribution Ground

DG-4100 Running Ground

Air Brakes
