Spiderflex Rope

Rope used in Distribution Stringing with the Spider® System

Sherman + Reilly’s Spiderflex Rope is made with 12-strand single braid with one end per carrier that is 100% Polyester. Its Maxijacket™ urethane coating enhances structural firmness to allow phase identification and add significant abrasion resistance for extended service life. se as a pilot line for stringing applications.

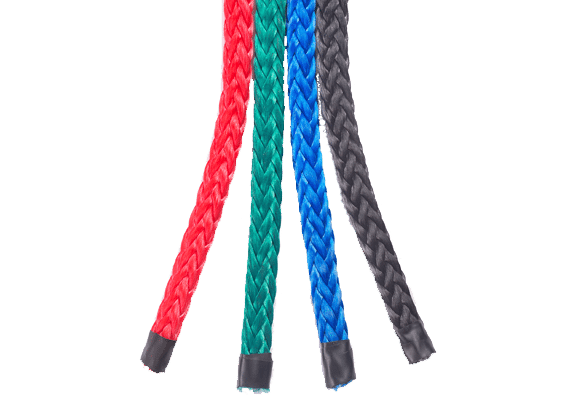

ONLY 5/16” rope is recommended for use with the S-7500 or S-8500 Spider® Systems. Spiderflex Rope is available in Red, Green, Blue, and Black.

Key Features

Diameter

5/16 in. diameter available.

Composition

Polyester over Polyolefin. Single braid, 12-strand.

Characteristics

Torque-free, non-twisting. Low-stretch, high UV resistance and high abrasion resistance. Available in a variety of colors. Easy to splice.

Breaking Strength

3,000 lbs.

Specifications

Print Specifications

  • Size:

    5/16″

  • Materials, other:

    Polyester over Polyolefin

  • Construction:

    Single braid, 12 strand

  • Pounds/100 ft.:

    2.5 lbs.

  • Breaking Strength:

    3,000 lbs.

  • Coating:

    Polyurethane
