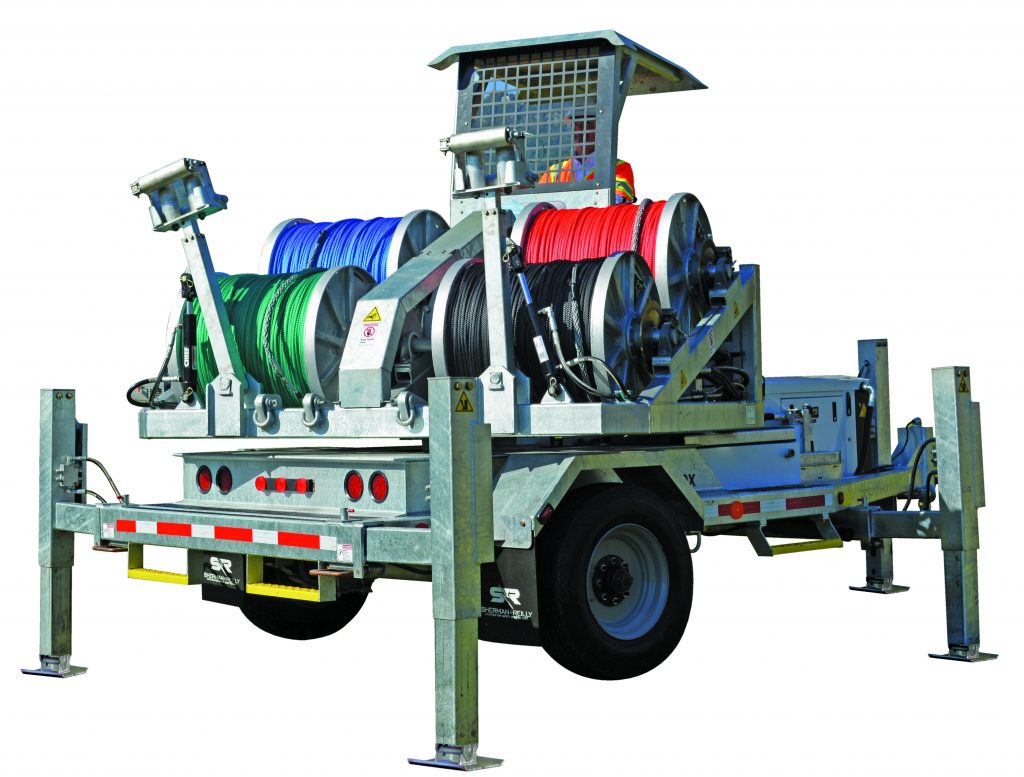

Plw-200x Pilot Line Winder

2,000 LBS. FOUR DRUM TURRET PILOT LINE WINDER

The Sherman + Reilly® PLW-200X pilot line winder features an optimized operator’s station with a new ergonomic layout. Equipped with real-time self diagnostics and CANbus technology, the operator can access all major controls from the seated operator station. The four-drum turret is capable of rotating 360° degrees for optimal structure approach to drive efficiency on the jobsite. The braking system, with electric over hydraulic activation, allows for controlled articulation of braking pressure distributed to each of the pilot line drums. The PLW-200X also offers a new galvanized finish for a more durable and weather resistant finish. The equipment also features newly positioned tie off points to allow for quicker line/phase change over and securing of drum-specific pilot lines.

Key Features

CAPABILITY

2,000 lbs pulling force (rated at top of drum).

DRUM CAPACITY

6,000 ft. capacity for 7/16 in. rope. 360°, continuous four-drum turret.

HYDRAULIC SYSTEM

Hydraulic motor, chain and sprocket with Locking Crown Drum engagement powered by a Tier 4 Diesel, 49 peak Hp, water cooled engine.

OPERATOR’S STATION

Features a Safe-Zone® Open/Half turret mounted cab.

Specifications

Print Specifications

  • Pulling Capacity Max

    2,000 lbs. (Rated at top of drum)

  • Max Line Speed

    4.0 mph top of drum

  • Payout Break

    Hydraulic disc-caliper, electronically over

  • hydraulic with finite PSI control
  • Turret Rotation

    360°, continuous

  • Reel Capacity

    6,000 ft. of 7/16″ PE-12 rope

  • Drive System

    Hydraulic motor, chain and sprocket

  • Engine

    Tier 4 Diesel, 49 peak Hp, water cooled

  • Fuel Capacity

    13 Gallon

  • Hydraulic Fluid

    ISO Grade 32

  • Hydraulic Reservoir

    25 Gallon

  • Levelwind

    Hydraulically controlled, joystick controlled (2)

  • Operator’s Safety Enclosure

    Safe-Zone® Cab, Open/Half cab, turret mounted

  • Frame Construction

    Steel tubing, continuous weld

  • Length

    (Overall, Nom.) 16 ft., 11 in

  • Width

    (Overall, Nom.) 8 ft., 1 in.

  • Height

    (Overall, Nom.) 9 ft., 7 in.

  • Weight*

    11,990 lbs.

  • GVWR

    12,500 lbs.

OPTIONS

  • Solar Battery Charger
  • Galvanized Finish Available
