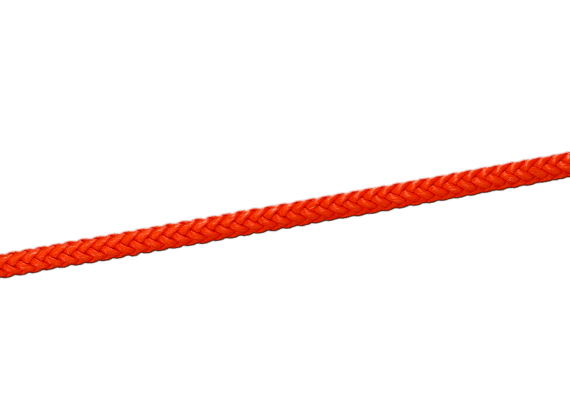

PE-12 Rope
Re-engineered for strength
PE-12 rope has been re-engineered, boosting its strengths significantly. Using the same high-tenacity fiber we use in our value-packed Portland Braid, this polyester single braid rope offers a single-end-per-carrier construction, which keeps the rope from flattening out in service and self centers in sheaves beautifully. This rope comes with the same tough grades of Maxijacket urethane we use on our more expensive products.
PE-12 rope is easy to splice, and field repairs are easily accomplished. It is available in unlimited lengths and brilliant colors for easy identification. PE-12 is torque free and is undamaged when rigging with swivels.
Key Features
Diameter
Available from 1/4-7/8 in. diameter.
Composition

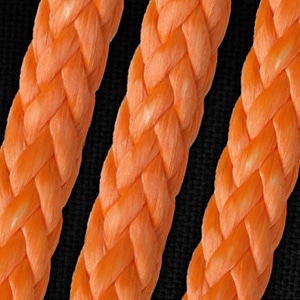

Single-braid offers a single-end-per-carrier construction, which resists flattening and reinforces self-centering in sheaves. Coated with Yale’s Maxijacket.
Characteristics
Easy to splice. Makes field repairs a breeze. Available in unlimited lengths and bright colors.
Average Spliced Break Strength
2,500 to 35,500 lbs.
Specifications
Diameter, in. |
Average Spliced break strength, LBS. |
Minimum Spliced break strength, LBS. |
Maximum**
|
Weight, LBS. |
| 5/16 | 4,050 | 3,645 | 810 | 2.8 |
| 3/8 | 6,200 | 5,580 | 1,240 | 3.9 |
| 7/16 | 10,000 | 9,000 | 2,000 | 6.5 |
| 1/2 | 13,940 | 12,546 | 2,788 | 8.4 |
| 9/16 | 16,590 | 14,931 | 3,318 | 10.2 |
| 5/8 | 19,640 | 17,676 | 3,928 | 11.5 |
| 3/4 | 23,250 | 20,925 | 4,650 | 15.7 |
| 7/8 | 38,300 | 34,470 | 7,660 | 22.9 |
| 1 | 42,900 | 38,610 | 8,580 | 27.2 |
