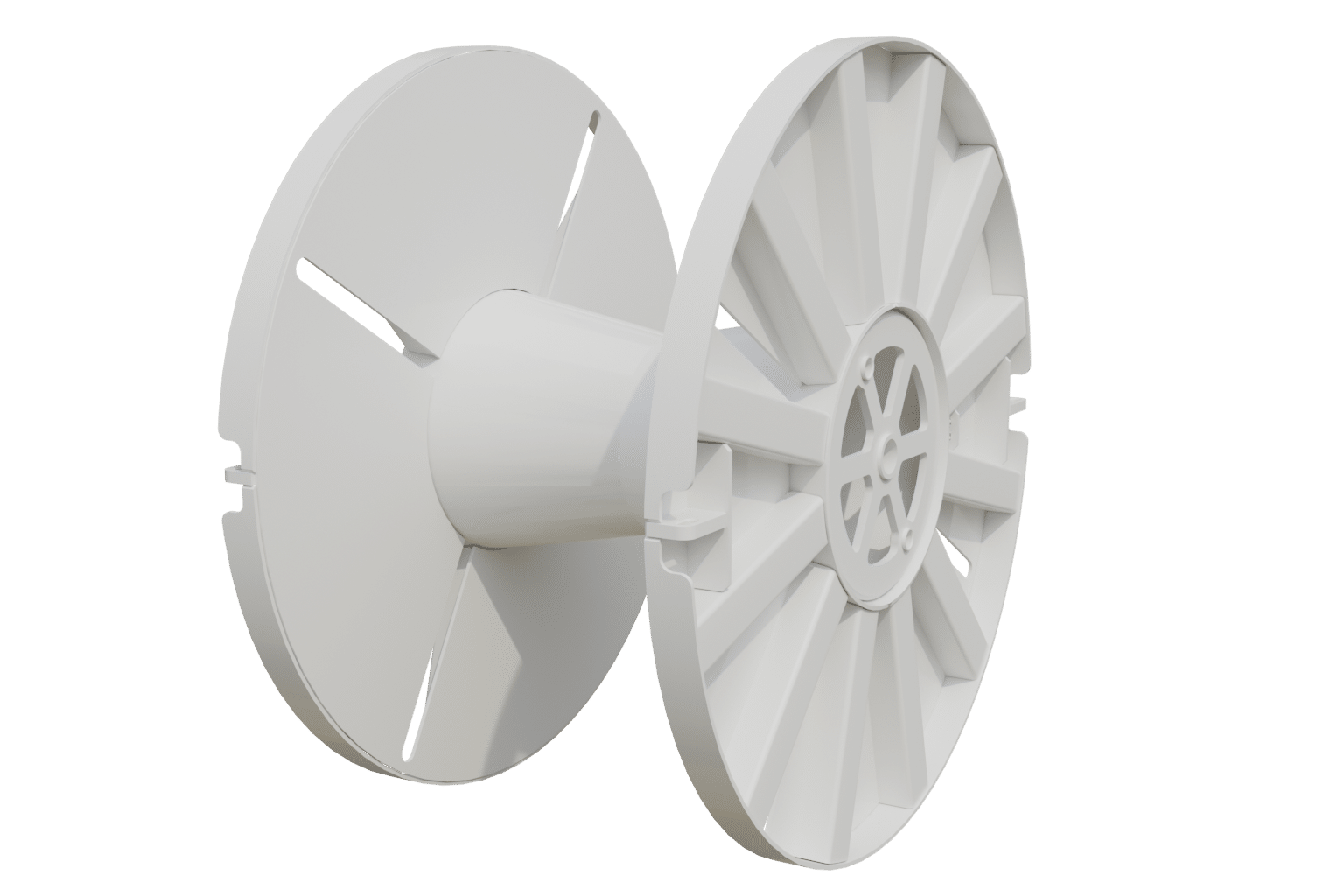

RECONDUCTORING REEL – RCR-72 9,100 LB. CAPACITY (for P-6000H)
Tough two-piece design handles compressive loads
This reconductoring reel is made for use with the P-6000H winding or recovering used conductor. The rugged, two-piece reel can withstand compressive loads.
KEY FEATURES
DESIGN
Reel splits for easy removal of wound conductor. Banding/strapping may be inserted onto the reel before winding the old conductor.
SIZING
Outer diameter 72 inches. Compatible with P-6000H engagement only.
CONFIGURATION
9,100 lb. reel capacity.
6,000 lb. pulling capacity.
SPECIFICATIONS
Reel Capacity
9,1000 lbs. (of added conductor)
Reel OD
72 in.
Reel Width, outside
45 in.
Reel Width, inside transverse
37 in
Reel Core Diameter
24 in. to 18.5 in.
Reel Weight*, nom.
1,900 lbs.
Reel Hub Size
Compatible with P-6000H engagment only.
Reel Material
Steel, continuous-weld
T-Handle Wrench
Included
Lifting Tongs
N/A
Pulling Capacity
6,000 lbs
