RECONDUCTORING REELS – RCR-76 – 20,000 LB. CAPACITY

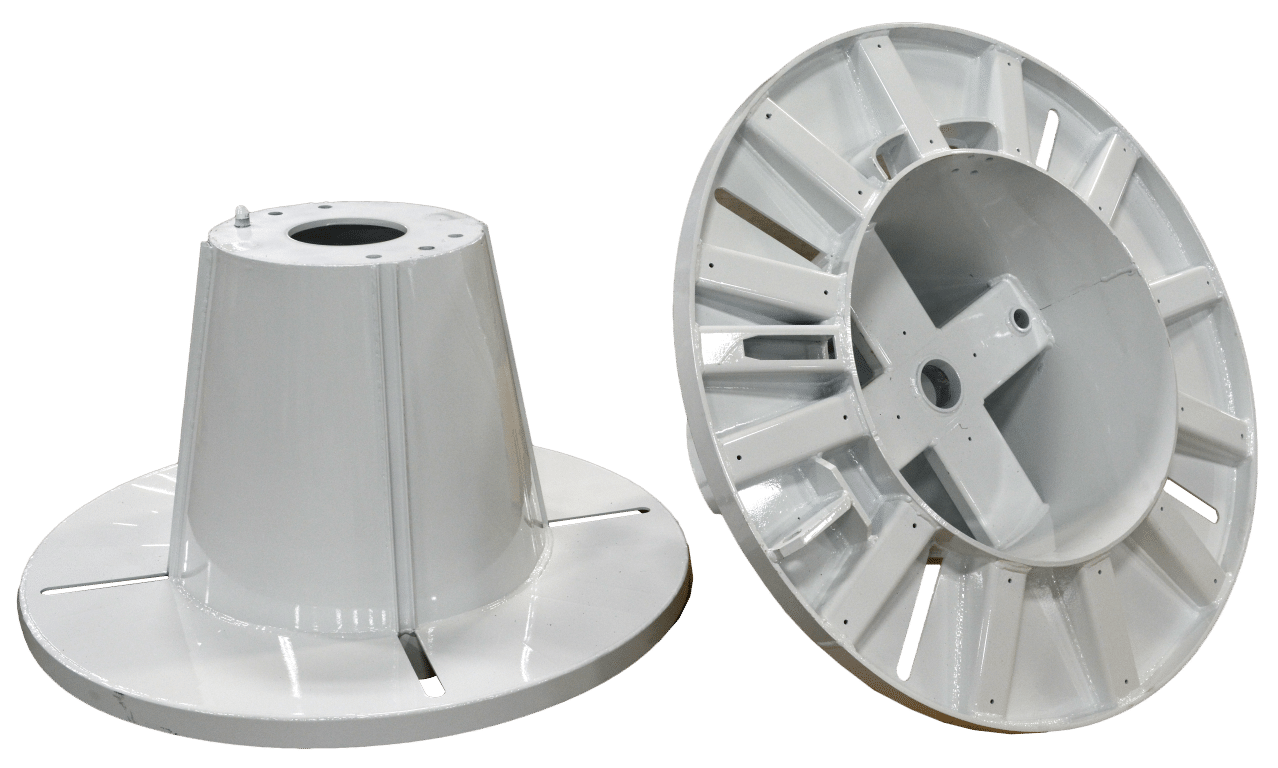

Tough two-piece design handles compressive loads
These steel, continuous weld reconductoring reels are made to replace wooden conductor reels used for winding or recovering used conductor. Its rugged, two-piece reel can withstand compressive loads.
SPECIFICATIONS
Reel Capacity
20,000 lbs. (of added conductor)
Reel OD
76 in.
Reel Width, outside
58 in.
Reel Width, inside transverse
50 in.
Reel Core Diameter
40 in. to 33.5 in.
Reel Weight*, nom.
3,191 lbs.
Reel Hub Size
Accommodates 3-15/16 in. reel shaft
Reel Material
Steel, continuous-weld
T-Handle Wrench
Included
Lifting Tongs
Optional
Pulling Capacity
7,000 lbs
OPTIONS
Lifting Tongs
