RECONDUCTORING REEL – RCR-60 – 7,000 LBS. CAPACITY

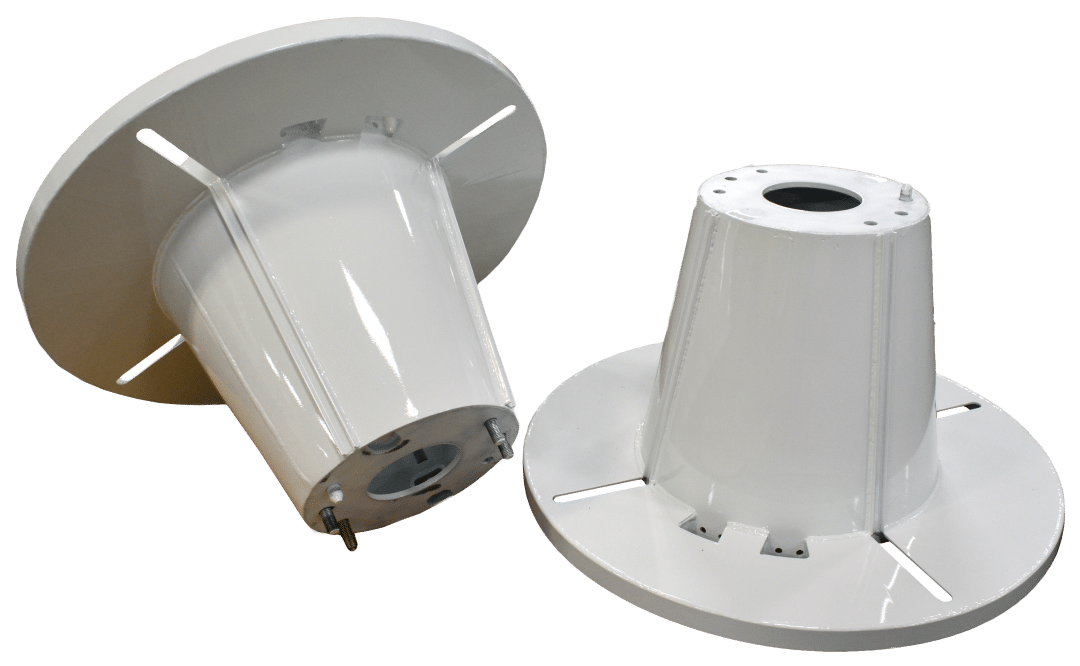

Tough two-piece design handles compressive loads

These steel, continuous weld reconductoring reels are made to replace wooden conductor reels used for winding or recovering used conductor. Its rugged, two-piece reel can withstand compressive loads.

KEY FEATURES

DESIGN

Reel splits for easy removal of wound conductor. Banding/strapping may be inserted onto the reel before winding the old conductor.

SIZING

Outer diameter 60 inches. Compatible with PT-3000, PTX-3500, and PT-7500.

CONFIGURATION

7,000 lb. reel capacity. 4,000 lbs. pulling capacity. Accommodates 3 inch reel shaft.



OPTIONS

Lifting tongs, optional.

SPECIFICATIONS

Reel Capacity

7,000 lbs. (of added conductor)


Reel OD

60 in.


Reel Width, outside

39 in.


Reel Width, inside transverse

31 in


Reel Core Diameter

24 in. to 18.5 in.


Reel Weight*, nom.

1,090 lbs.


Reel Hub Size

Accommodates 3 in. reel shaft


Reel Material

Steel, continuous-weld


T-Handle Wrench

Included


Lifting Tongs

Optional


Pulling Capacity

4,000 lbs




RCR-60 Reconductoring Reel
