RECONDUCTORING REEL – RCR-54 10,000 LB. CAPACITY (for P-1400x)

Tough two-piece design handles compressive loads

This reconductoring reel is made for use with the P-1400X winding or recovering used conductor. The rugged, two-piece reel can withstand compressive loads.

Download Spec Sheet
Contact Us

KEY FEATURES

DESIGN

Reel splits for easy removal of wound conductor. Banding/strapping may be inserted onto the reel before winding the old conductor.

SIZING

Outer diameter 54 inches. Compatible with P-1400X engagement only.

CONFIGURATION

10,000 lb. reel capacity.

7,500 lb. pulling capacity.

OPTIONS

Lifting tongs, optional.

SPECIFICATIONS

Print Reconductoring Reel Specifications
Reel Capacity

10,000 lbs. (of added conductor)

Reel OD

54 in.

Reel Width, outside

71.75 in.

Reel Width, inside transverse

63 in

Reel Core Diameter

31.5 in. to 18.5 in.

Reel Weight*, nom.

1,890 lbs.

Reel Hub Size

Compatible with P-1400X engagment only.

Reel Material

Steel, continuous-weld

T-Handle Wrench

Included

Lifting Tongs

Optional

Pulling Capacity

7,500 lbs

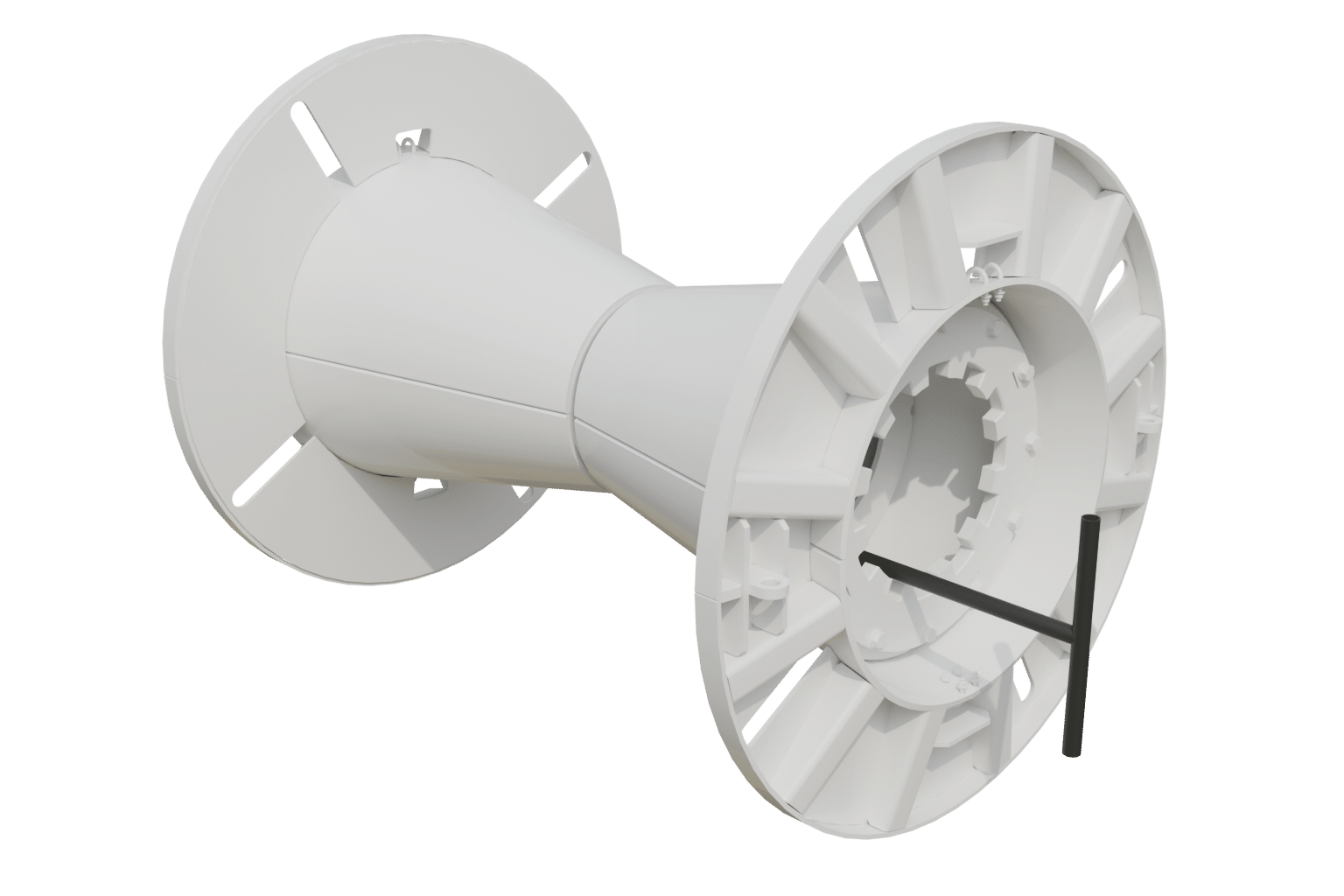

RCR-54 Reconductoring Reel
