A collaboration between Sherman+Reilly and its customers led to the new Heritage Series line of products. This includes a new 3,000 lbs. puller tensioner, a 2,000 lbs. pilot line winder, a 4,000 lbs. pilot line winder, and a 4,000 lbs. bullwheel tensioner. “We spoke to many of our customers and distilled down what they told us they wanted: “old-school” feel, solid, easy-to-use products with the operator safety features for which Sherman+Reilly are well known,” said CEO Mike Dunn.
For this reason, these units pack in all the things expected from equipment produced by the industry leader. They are built with the same reliability the company is known for, but in a redesigned trimmed-down style, without sacrificing safety or comfort.
Our Heritage Series
PT-3000H

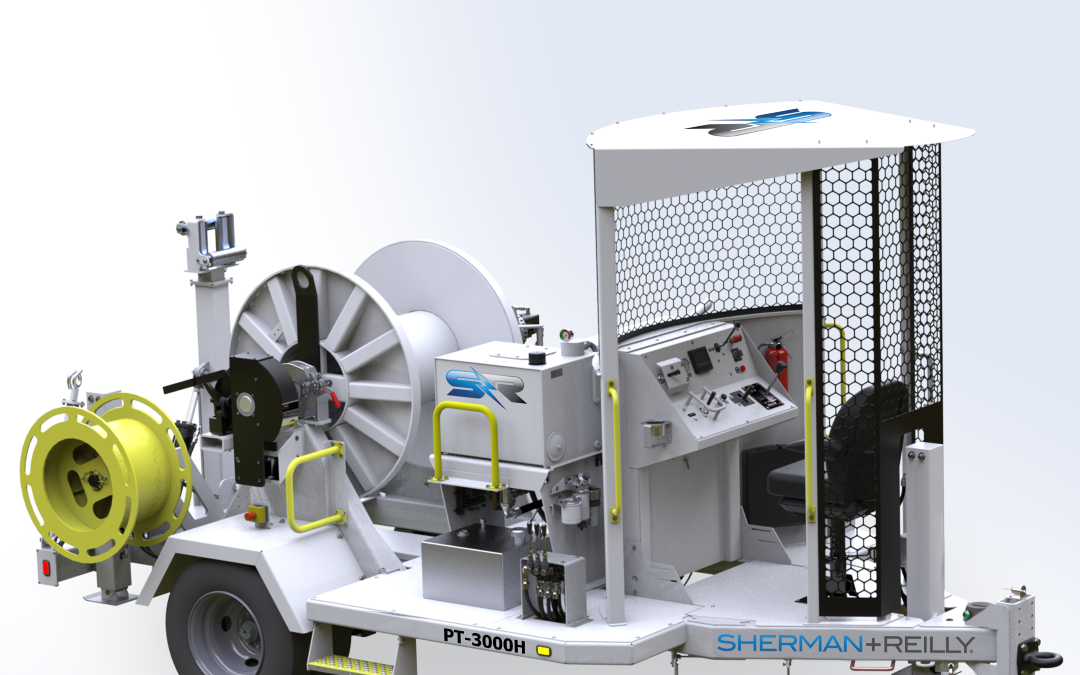

Firstly in the Heritage Series is the PT-3000H: a single-drum, multi-purpose distribution puller/tensioner. This model can pull 3,100 lbs. and tension 2,000 lbs. overhead. Tensioning at very low forces – down to 100 lbs. hydraulically and even less force manually – is possible with the PT-3000H. An optional underPT-3000Hground package with the capability of pulling 7,500 lbs. adds to the unit’s versatility.
In addition, the PT-3000H can also be outfitted with an optional Spider® Pilot Line System with independent levelwind. Quick and easy X-Change™ bolt-action drum coupling, a patented Safe-Zone® enclosure with patented Ocu-View™ screen, ergonomic control panel, adjustable seat, and a compact footprint round out the unit. Solidly built, the PT-3000H offers safe and easy-to-use operation at a competitive price point.
PLW-200H
Next in the Heritage Series is the PLW-200H – a four-drum pilot line winder with a single drum capacity of 6,000 feet of 7/16 inch rope in an economical package. A Tier 4 Final, turbo-charged, 49 hp industrial diesel engine provides 2,000 pounds top of drum pulling capacity. It also has an optional synchronized levelwind switch supports the installation of four conductors at once. Independent roller assemblies designed for each of the four pilot lines are operated with remote reel engagement from the control panel inside the Safe-Zone® enclosure with Ocu-View™ screen.
PLW-400H
Additionally, the Heritage Series has the PLW-400H, a four-drum pilot line winder with a Tier 4 Final, turbo-charged 71 hp diesel engine providing the unit with 4,000 lbs. of pulling force. Control each of the four pilot lines by remote reel engagement accessible on the control panel located inside the Safe-Zone® enclosure with Ocu-View™ screen. Drum capacity is 16,500 feet of PE-12 or 22,000 ft. of 0.44 in. Unitrex® rope per drum. An optional synchronized levelwind switch supports the installation of four conductors at once.
BWT-1424H
Additionally in the Heritage line is the BWT-1424H bullwheel tensioner. It features two 42 inch diameter 5 groove bullwheels with a maximum tensioning capacity of 4,000 lbs. Equipped with the Safe-Zone® open air enclosure, and a reel stand capable of a 8,000 lbs. maximum reel weight.
Above all, with decades of experience building the safest and most reliable utility equipment on the market, Sherman+Reilly continues to steer the future of the market with innovative products.
For more information on the Heritage Series and overhead equipment, contact us at 423-756-5300 or click the button below to browse our overhead equipment.
