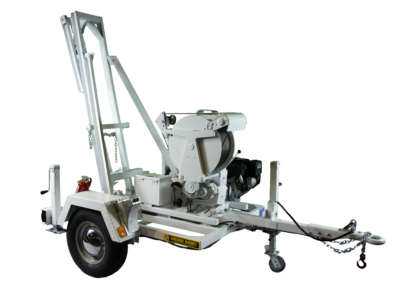

UD 50 underground puller

5,000 LBS. PULLING CAPACITY

Story (Marcus already added): The S+R™ Under Dawg® UD-50 underground puller is unquestionably one of the most cost-effective underground pullers in the world. Compact, yet rugged, this self-contained machine does big jobs yet its small size lends itself to small ones as well.

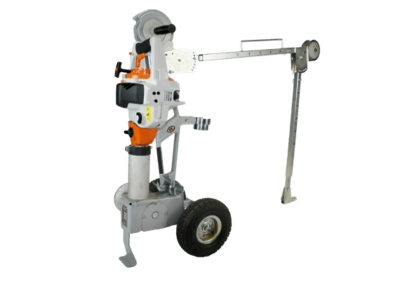

This small, lightweight, highly efficient and reliable machine utilizes bullwheels shaped to fit the rope diameter for longer life of the pulling line. These multi-groove, open side bullwheels provide smooth, constant tension on the cable during the pulling operation. The UD-50 is self-contained, utilizing an 10 H.P. gasoline engine, with a 5,000 lb. pulling capacity. Available as Pad Mount Transformer Adapter with A-Frame or skid mounted.

Key Features

CAPABILITY

Pulling Capability: 5,000 lbs. Reel capacity 1,500 ft.

Bullwheels

Multi-grooved, open side bullwheels provide even, constant pulling force.

INSTRUMENTATION

Equipped with a tension dynamometer and adjustable overload cut-off.

Pulling Rope

Rope entry at a fixed point for better anchorage. Works with 3/8 in. dia. steel cable. Ideal for installing telecommunication cables, including optical fiber cables, inner-duct, and slip-lining.

Specifications

Print Specifications

  • Engine

    9.5 Hp gasoline

  • Fuel Capacity

    1.9 gallon

  • Pulling Rope

    3/8 in. dia. Steel Cable

  • Reel Capacity

    1,500 ft. (3/8 in. dia.)

  • Skid Frame Construction

    Steel tubing, continuous-weld

  • Instrumentation

    Dial-type Dynamometer w/Load Limiting Device

  • Wheel Configuration & Tires

    14 x 5.5 Drop Center; ST205-75R 14BC

  • Brakes, trailer

    Electric, Standard;

  • Hydraulic Surge

    Optional

  • Parking Brake, trailer

    Manual

  • Electrical System

    12V

  • Front/Nose Jack

    Screw Type with Wheel

  • Rear Jacks

    Screw Type with Shoe

  • Tool Box

    Steel

  • Trailer Hitch

    Pintle Eye

  • Width, overall, approx.

    63 in.

  • Length, overall, approx.

    91 in.

  • Frame Construction, trailer

    Steel Tubing

  • Height, approx.

    48 in.

  • Weight*, approx.

    1,200 lbs

OPTIONS

  • Air Adapter Kits
  • Underground Blocks Available

The S+R™ Under Dawg® underground puller (Model UD-50) is unquestionably one of the most cost-effective underground pullers in the world, and the reasons are obvious!  Compact, yet rugged, this self-contained machine does big jobs yet its small size lends itself to small ones as well.

This small, lightweight, highly efficient and reliable machine utilizes bullwheels shaped to fit the rope diameter for longer life of the pulling line. These multi-groove, open side bullwheels provide smooth, constant tension on the cable during the pulling operation. The UD-50 is self-contained, utilizing an 10 H.P. gasoline engine, and has a 5,000 lb. pulling capacity.

The UD-50 is fitted with a dynamometer and adjustable overload cut-off for protection against over-tensioning the cable. This easy to operate, economical power unit is mounted on a rugged frame constructed of welded steel tubing and is available skid-mounted or mounted on a trailer for easy transporting to and from the job site by a light weight truck.

The Sherman + Reilly™ UD-50 underground puller is ideal for installing telecommunication cables, including optical fiber cables, inner-duct, and slip-lining, etc.
