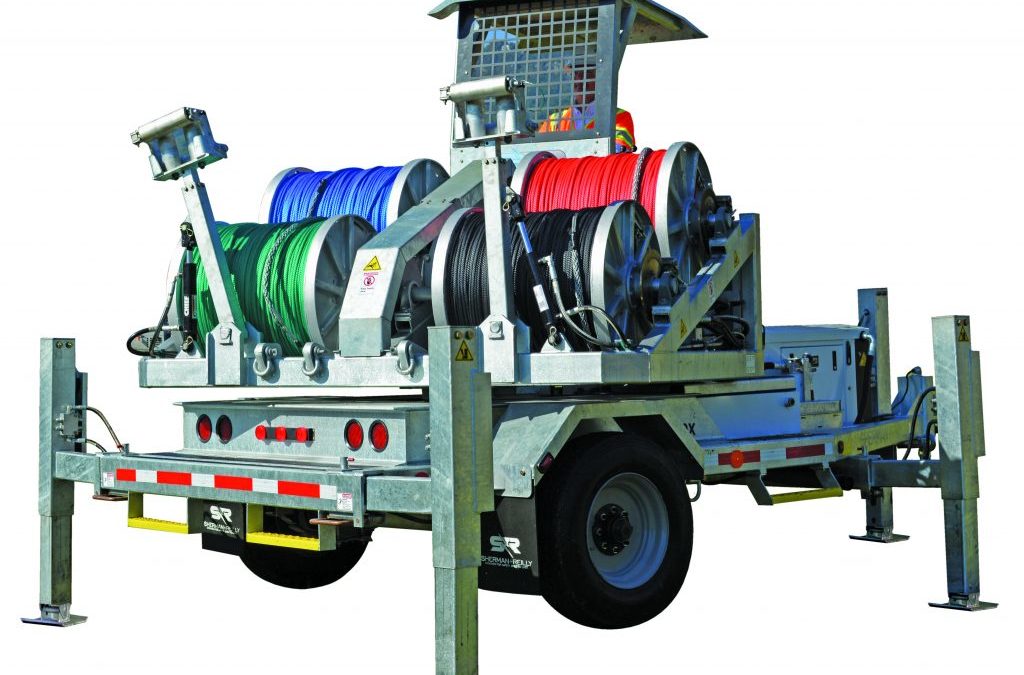

PLW-200 E+ Electric Pilot Line Winder

2,000 lbs. Four Drum Electric Pilot Line Winder

The PLW-200 E+ delivers all-electric operation with The Onboard Rapid Recharge System by S+R™, providing superior performance and automatic battery management so the operator can focus on the job at hand. With all the capabilities of our standard PLW-200H, the E+ has an all-electric drivetrain designed to exceed all-day use. The On-Board Rapid Recharge System responds automatically, without input from the operator, until the work is done no matter how tough the job gets. In addition, S+R Telematics™ comes standard at no cost, providing industry leading support in real time. The E+ Series of products continues Sherman + Reilly’s commitment to transform customer expectations for jobsite safety and equipment performance.

Download Spec Sheet

KEY FEATURES

CAPABILITY

2,000 lbs. maximum pulling capacity

DRIVE SYSTEM

48V Electric

DRUM CAPACITY

6,000 ft. of 7/16 in.
PE-12 synthetic rope

OPERATOR’S STATION

Safe-Zone®with OcuView open-air enclosure

SPECIFICATIONS

Print Pilot Line Winder Specifications

Pulling Capacity Max

2,000 lbs. (Rated at top of drum)

Max Line Speed

4.0 mph top of drumPayout Break

Payout Break

Manually controlled disc brakes, 12” diameter disc, bronze

Reel Capacity

6,000 ft. of 7/16 in. PE-12 synthetic rope

Drive System

48 V Electric

Charging Time
Standard Battery Size

Rapid Charge
50% to 100% = ~1 hour; 0 to 100% = ~2 hours

Wall Charger
Level 1 (120V):
4-5 hr for 0% to 50%; 8-9 hr for 0% to 100%

Level 2 (240V):
2-3 hr for 0% to 50%;
4-5 hr for 0% to 100%

Hydraulic Fluid

ISO Grade 32

Hydraulic Reservoir

4 Gallons

Levelwind

Electric, joystick controlled (2)

Operator’s Safety Enclosure

Safe-Zone® with OcuView open-air enclosure

Frame Construction

Steel tubing, continuous weld

Length

(Overall, Nom.) 207 in. (17 ft. 3 in.)

Width

(Overall, Nom.) 102 in.

Height

(Overall, Nom.) 117 in.

Weight*

nominal 11,100 lbs. (with rope)

GVWR

12,000 lbs.
