SP 12

Primarily used in long length conducer pulling machinery

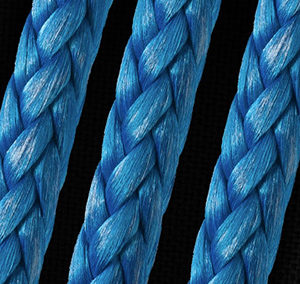

SP-12 is a 12-strand blended rope comprised of Honeywell Spectra® fiber and polyester. This rope is designed to take advantage of the high-strength and low-elongation properties of Spectra fibers, while providing a slightly lower price point than 100% Spectra ropes. The primary market opportunity is for long length conducer pulling machinery.

This rope can also be used in any application where 100% Spectra does not fit the need and 100% polyester is limited in selection as well. The rope is available in any of our Maxijacket High Performance colors which will be supplied as a standard coating. This product is identified by the addition of blue polyester fiber in the strand bundle of yarn.

Key Features

Diameter

Available from 3/8-7/8 in. diameter.

Composition

High-strength and low-elongation properties of Spectra fibers, while providing a slightly lower price point than 100% Spectra ropes

Characteristics

Contains the high-strength and low-elongation properties of Spectra® fibers, while providing a slightly lower price point than 100% Spectra® ropes.

Average Spliced Break Strength

10,500 to 72,200 lbs.

Specifications

Diameter, in.
Average Spliced break strength, LBS.
Minimum Spliced break strength, LBS.
Maximum**
work load 5:1, LBS.
Weight, LBS.
3/8 10,500 9,450 2,100 3.7
1/2 15,700 14,130 3,140 7.8
5/8 25,125 22,613 5,025 10.7
3/4 48,100 43,290 9,620 16.2
7/8 72,200 64,980 14,440 22.8

* Knots and abrupt bends significantly reduce the strength of all ropes and lower maximum working load.

** Working load is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s rated working load constitute hazardous shock load and would void the normal working load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of the rope.
