PTV-4807

V-GROOVE PULLER TENSIONER | PULLING CAPACITY 7,000 LBS.

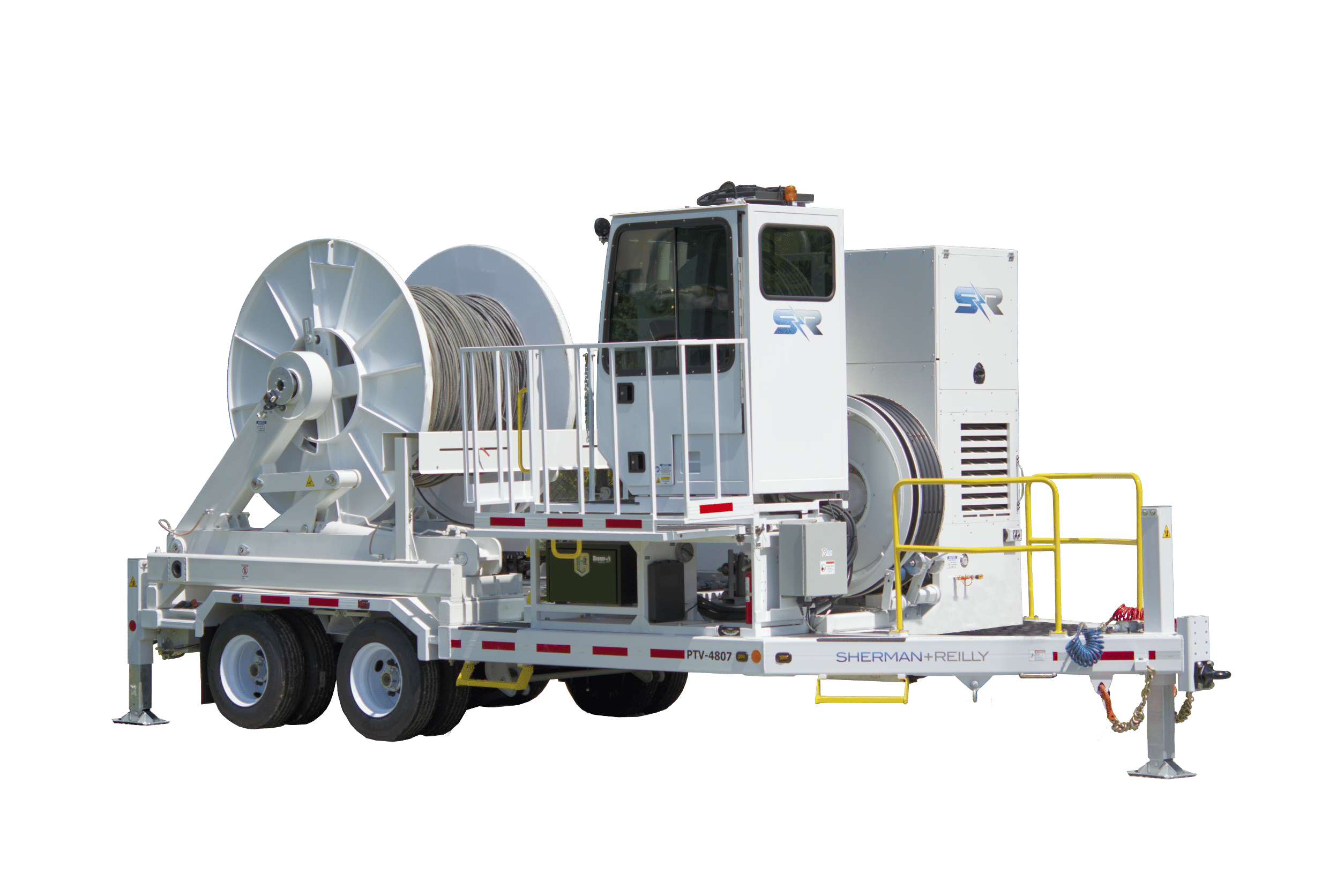

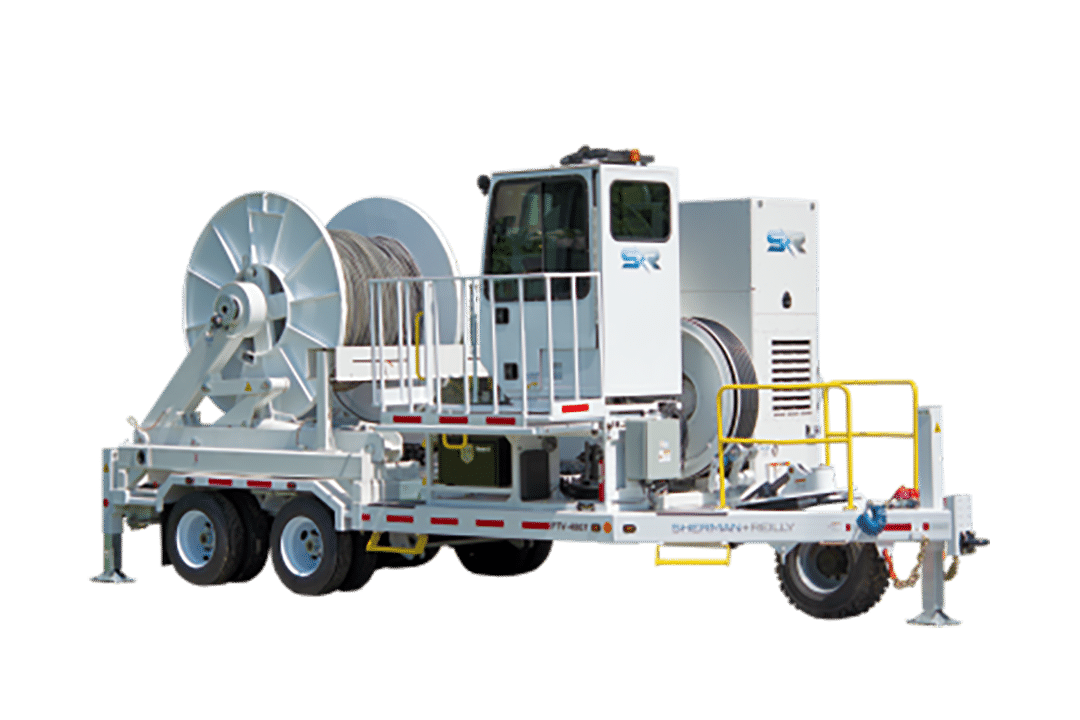

The Sherman + Reilly™ Revolution Series PTV-4807 is a puller/tensioner/reconductorer in a single unit delivering 7,000 lb of pulling force and tensionion from 300 to 5000 lb. The 48-inch bullwheels provide constant tension and handle transmission class conductors at speeds up to 4 mph. The PTV-4807 also features a reconductoring V-groove application for “wrecking-out” old conductor and a a self-loading reel stand capable of supporting a 85H inch by 60W inch reel, up to 10,000 lb.

Key Features

CAPABILITY

Can deliver 7,000 lbs of pulling force and tensioning force from 300 to 5000 lbs with 48” bullwheels. The PTV-4807 also features a reconductoring V-groove application for “wrecking-out” old conductors.

DRUM CAPACITY

Self-loading reel stand capable of supporting a 85H inch by 60W inch reel, up to 10,000 lb.

HYDRAULIC SYSTEM

Fully direct-drive hydraulic system with a built in fail-safe brake, powered by a 74 hp DEUTZ(™) diesel T4F engine.

OPERATOR’S STATION

Features a Safe-Zone™ Cab for the safety and comfort of the operator with a floor to ceiling polycarbonate front window for excellent visibility and protection. The cab includes climate control, an adjustable ergonomic seat, and all required electronic controls and gauges.

Specifications

Print Specifications

    Maxiumum Pulling Capacity

    7,000 lbs. per bullwheel set

    Tensioning Capacity

    300 – 5,000 lbs. per bullwheel set

    Max. Line Speed

    Pulling: 4 mph.

    Bullwheel Size / Count / Grooves

    48 in. diameter / 2 (1 pair) / 5 grooves per bullwheel

    Groove Radius

    1 in. radius / 2 in. conductor capacity

    Groove Lining Material

    Rubber, machine-groove

    Tension Brake

    Hydraulic, motor-drive

    Brake Control

    Hydraulic-applied, automatic, per operator setting

    Fail-Safe Brake

    Spring-applied, released by hydraulic pressure

    Transport Brake

    Manually applied brake for transport and parking

    Drive System

    Direct Drive: hydraulic motor, bullwheel

    Engine

    74 hp Diesel DEUTZ, T4 Final

Need larger image

OPTIONS

  • Option Remote-controlled, hydraulically
    driven set-up wheel
  • Option Can be truck/skid mounted
