PT-3000 Puller Tensioner

3,000 LBS. SINGLE DRUM PULLER TENSIONER

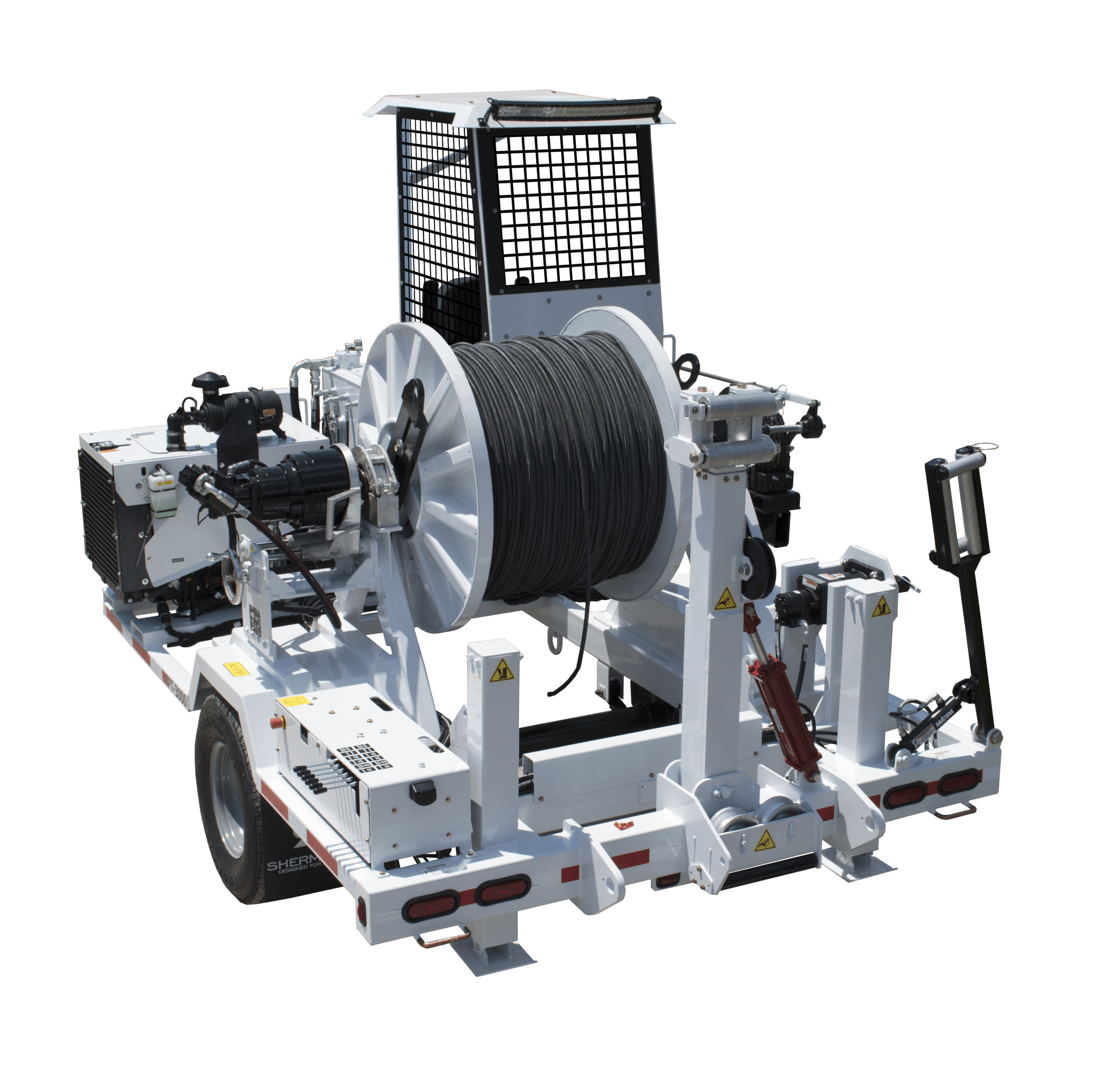

The Sherman+Reilly PT-3000 Puller Tensioner is a single drum, multi-purpose distribution puller/tensioner capable of pulling up to 3,000 pounds overhead and up to 7,500 pounds underground.

Download SPEC Sheet

Contact Us

Key Features

CAPABILITY

Pulling: 3,000 lbs pulling force (rated at top of drum).
Tensioning: 2,000 lbs.

DRUM CAPACITY

66 in. diameter/40 in. width. Dynamic – Over the Road – w/PMTA 3,200 lbs., w/o PMTA 4,000 lbs. | Static – Jacks Extended – 6,000 lbs.

HYDRAULIC SYSTEM

Direct Drive: single hydraulic motor, drum and drive bar/dual pin.

OPERATOR’S STATION

Safe-Shield cab provides front and side protection for the operator and includes standard an adjustable ergonomic seat.

Specifications

Print PT-3000 Puller Tensioner Specifications

Pulling Capacity

3,000 lbs. (Rated at top of 46 in. drum)
Max

3,300 lbs. (Rated maximum)
Tensioning Capacity

2,000 lbs.
Maximum Line Speed

Pulling:4 mph
Maximum Conductor ReelSize

66 in. diameter/40 in. width
Maximum Conductor Reel Weight

Dynamic – Over the Road – w/PMTA 3,200lbs.,
w/o PMTA 4,000 lbs. |
Static – Jacks Extended – 6,000 lbs.
Drum Dimensions

Core Diameter: 18 in.
Total Outside Width

40 in.
Flange Diameter

46 in.
Drum Capacity

11 mm. dia. Unitrex™ 17,000 ft.
5/8 in. dia. Uniline™ 8,450 ft.
Standard rope length is 6,000 ft. of 5/8 in. Uniline
Drive System

Direct Drive: single hydraulic motor,
drum and drive bar/dual pin
Drive System Engine

Turbocharged, Tier-4 Final, diesel, 45 Hp, water-cooled
Fuel Capacity

13 Gallon
Hydraulic Fluid

ISO Grade 32
Hydraulic Reservoir

25 Gallon
Hydraulic Fluid Filtration

10 micron, both supply and return filters
Levelwind

Hydraulically driven, manually controlled
Operator’s Safety Enclosure

Open cab enclosure
Frame Construction

Steel tubing, Steel plate, continuous weld

Click Here For ALL SPECS

OPTIONS

Hydraulic Pad Mount Transformer Attachment capable of 7,500 lbs maximum working load
RCR-60: Core: 24 in. to 18 in. tapered Total Outside Width: 39 in. (Flange Diameter: 60 in.)
Underground levelwind for pulling underground
Spider® Pilot Line System with independent levelwind
S-75 or S-85 spider reels with 3,000 ft. or 6,000 ft.
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground
Underground Option with UG Drum 24 in. OD, 31.75 in. W, 3/8 in. x 2,000 ft., 6×25 IWRC
E-35 Underground Swivel (3,500 lbs.)
E-49 Underground Swivel (8,000 lbs.)
Solar Battery Charger

All Specifications

PT-3000 Puller Tensioner

DOWNLOAD SPECIFICATIONS

Pulling Capacity

3,000 lbs. (Rated at top of 46 in. drum)
Max

3,300 lbs. (Rated maximum)
Tensioning Capacity

2,000 lbs.
Maximum Line Speed

Pulling:4 mph
Maximum Conductor ReelSize

66 in. diameter/40 in. width
Maximum Conductor Reel Weight

Dynamic – Over the Road – w/PMTA 3,200lbs., w/o PMTA 4,000 lbs. | Static – JacksExtended – 6,000 lbs.
Drum Dimensions

Core Diameter: 18 in.
Total Outside Width

40 in.
Flange Diameter

46 in.
Drum Capacity

11 mm. dia. Unitrex™ 17,000 ft.5/8 in. dia. Uniline™ 8,450 ft.Standard rope length is 6,000 ft. of 5/8 in.Uniline
Drive System

Direct Drive: single hydraulic motor, drum and drive bar/dual pin
Drive System Engine

Turbocharged, Tier-4 Final, diesel, 45 Hp,water-cooled
Fuel Capacity

13 Gallon
Hydraulic Fluid

ISO Grade 32
Hydraulic Reservoir

25 Gallon
Hydraulic Fluid Filtration

10 micron, both supply and return filters
Levelwind

Hydraulically driven, manually controlled
Operator’s Safety Enclosure

Open cab enclosure
Frame Construction

Steel tubing, Steel plate, continuous weld
Length

(Overall, Nom.) 18 ft., 11 in.
Width

(Overall, Nom.) 8 ft., 6 in.
Height

(Overall, Nom.) 9 ft., 6 in.
