WB1500/5 Z375 PULLER TENSIONER – Zeck

The Zeck WB1500/5 Z375 is a Bullwheel Puller, Tensioner, and Reconductorer in a single unit delivering 11,240 lb. of pulling and tensioning force with a maximum speed of 4.2 mph. The 59 in. bullwheels provide constant tension and handle transmission-class conductors. WB1500/5 Z375 features a fully electronic, integrated control system for precision application of force to conductors in a compact footprint providing maximum versatility.

zeck-logo
Download Spec Sheet
Contact Us

KEY FEATURES

Capability

  • Featuring a set of dual 59 in. bullwheels, this machine offers pulling and tensioning capacities up to 11,240 lb. Each bullwheel is equipped with an automatically activating safety brake and automatic rope clamping system to prevent rope slippage. Equipped with Zeck’s patent pending Smart Low Tensioning System (SLTS), this machine is ideal for OPGW or pilot rope applications.

Operator’s Station

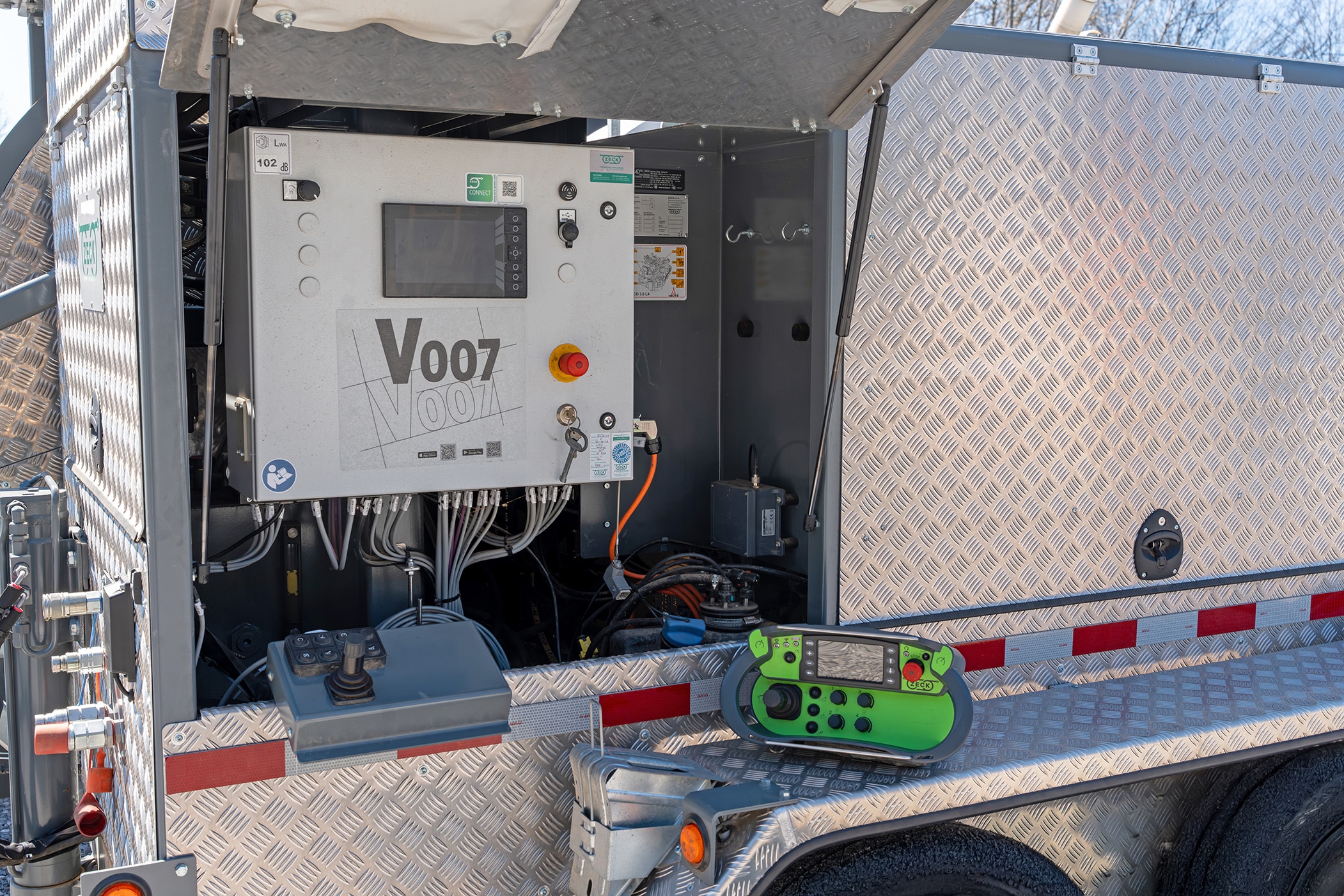

  • Wireless remote control with color display offers digital real time feedback, infinite line control, and maximum tension settings to optimize productivity and safety. The on-board controller and display provide data recording, intelligent diagnostics, and fault recognition to minimize downtime and ensure compliance.

Hydraulic System

  • Direct drive motor is efficient and reliable with minimal maintenance.

Versatility

  • The WB1500/5 Z375 is a Puller, Tensioner, and Reconductorer in a single unit.  Its small footprint allows for jobsite flexibility.

SPECIFICATIONS

Print WB1500/5 Z375 PULLER TENSIONER – Zeck Specifications
Maximum Pulling Capacity

11,240 lb.

 Maximum Tensioning Capacity

11,240 lb.

Minimum Tensioning Capacity

ATS: 2,520 lb.

SLTS: 225 lb.

Maximum Line Speed

Pulling: 4.2 mph
Tensioning: 4.2 mph

Bullwheels

Nominal Diameter: 59 1/16 in.
Bullwheel Count: 2
Bullwheel Groove Lining: Replaceable
Groove Diameter Ø: 1 3/4 in.

Length

(Overall, Nom.) 229 in.

Width

(Overall, Nom.) 90 in.

Height

(Overall, Nom.) 98 in.

Weight

10,340 lb.

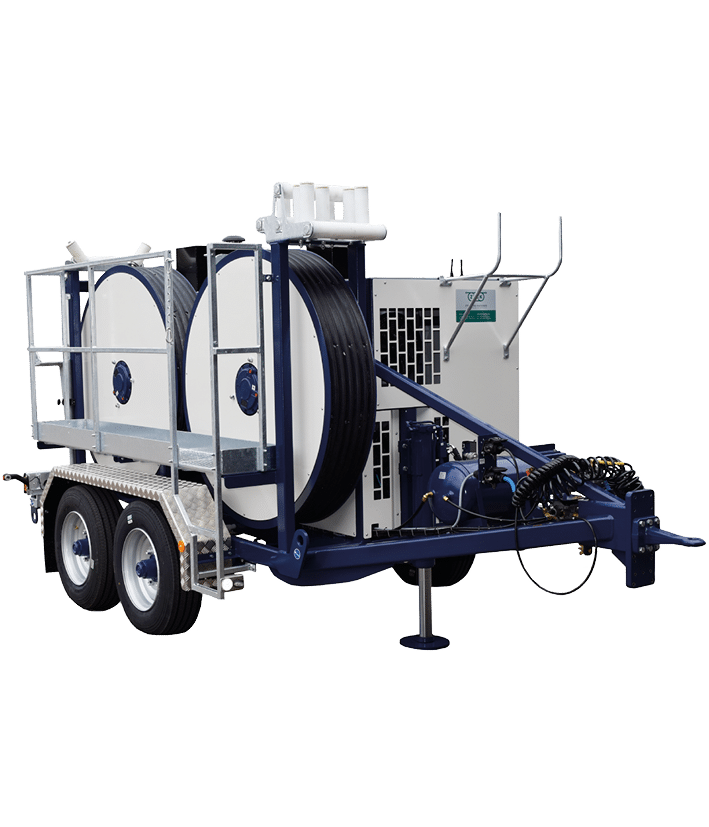

Zeck WB1500-5 Catalog Picture

OPTIONS

Precleaner for engine air filter.

Printer for ZECK Stringing Data Record System.

Remote diagnosis via GSM network with GPS modem.

Hydraulic system (700/1,000 bar) to power pressing tool.
