P-6000H Puller – Heritage Series
6,000 lb. Pulling Capacity

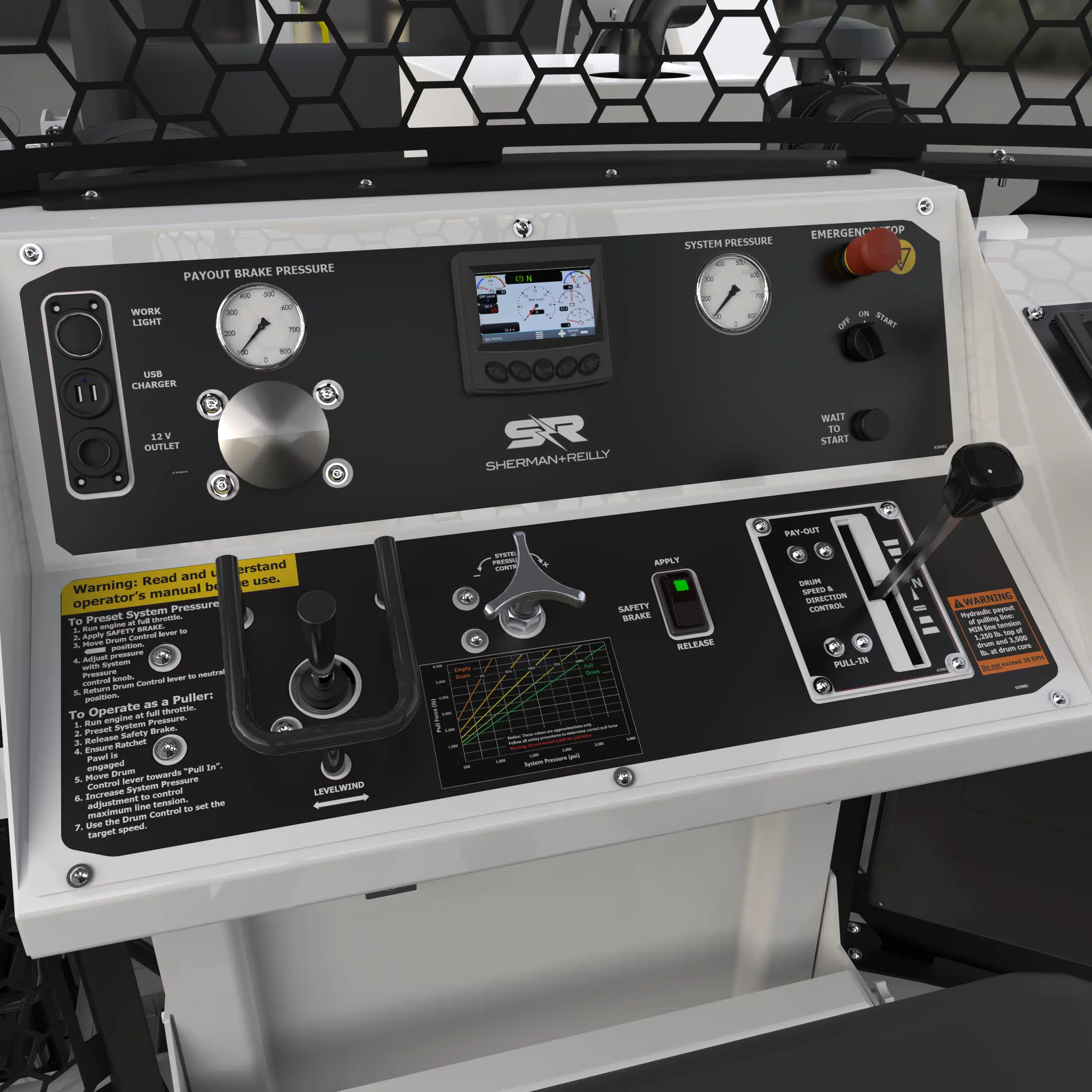

The Heritage Series P-6000H puller can pull 6,000 lb. on a 62 in. diameter reel. All stringing operations are controlled from the safety of the Safe-Zone® enclosure with Ocu-View™. Equipped with a helicopter-ready payout brake and a ratchet pawl failsafe brake. An optional 72 in. X 45 in. RCR reel is available for this unit.
SPECIFICATIONS
Maximum Pulling Capacity
6,000 lb. (rated at 30 in. from drum center)
Mechanical Payout Brake
27.75 in. Bronze Disc, Helicopter-ready
Minimum Tensioning Capacity
1,250 lb. at top of drum and 3,500 lb. at core
Line Speed
Pulling: 6 mph
Tensioning: 30 rpm
Reconductoring Reel Size
72 in. diameter / 45 in. width
Max. Conductor Reel Weight
Dynamic over the road 6,400 lb.
Static jacks extended 11,000 lb.
Weight of Reel and Drive Shaft: 2,000 lb.
WARNING: If the combined rope, reel, and reel shaft weight exceed the static rating, do not transport the reel over the road.
Drum Dimensions
Core diameter: 24 in.
Usable width: 36 in.
Flange diameter: 62 in.
Drum Capacity
Up to 15,500 ft. of 3/4 in. PE-12 or
25,000 ft. of 1/2 in. Ultrex
Drive System
Chain drive: Single hydraulic motor,
Penta-drive Coupling System with remote
engagement
Drive System Engine
Turbocharged, Tier-4 Final Diesel, 116 Hp,
water-cooled Kubota®
Fuel Capacity
30 gallons
OPTIONS
Hydraulic Jacks
Light bar with 12V accessory option
Air axle
Tongue extension
Solar battery charger
Galvanized finish available
72 in. X 45 in. RCR reel
