DDHX-75/100 Underground Puller

DDHX-75/100 – 7,500 OR 10,000 LBS. PULLING CAPACITY

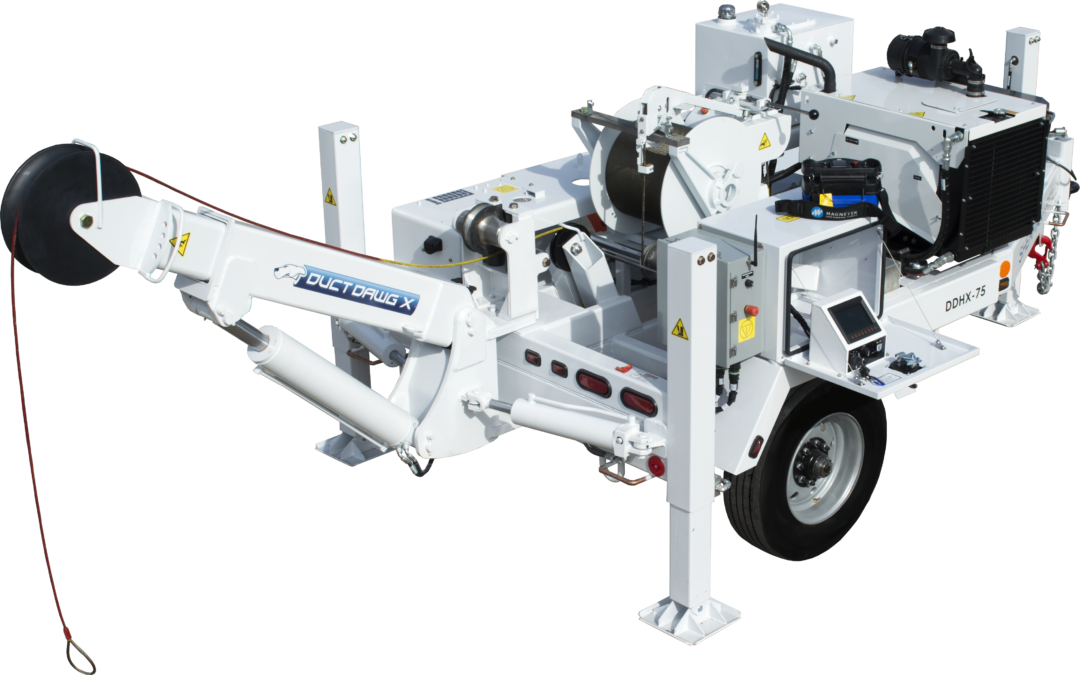

The Sherman+Reilly® Duct Dawg® DDHX 75/100 is an underground puller capable pulling 7,500 lbs. or 10,000 lbs. respectively. This underground unit simplifies jobsite setup with a fully articulated, self-supported 3-axis boom capable of performing a wide horizontal swing arc (greater than 50 degrees left/right), 90 degree vertical arc (up/down), 24-inch telescoping (in/out) with a sheave head that swivels approximately 60 degrees as well, allowing for approximately 10 degree adjustments within this range. The short length also makes setup easy.

KEY FEATURES

CAPABILITY

Pulling Capability: DDHX-75 7,500 lbs., DDHX-100 10,000 lbs.



OPERATOR’S STATION

Durable, battery-powered wireless remote control for safer operation. Smooth operation with 3-speed gearbox on the 75 model and 2-speed on the 100 model. Equipped with a digital recorder to continuously measure length of cable deployed and line tension.

HYDRAULIC SYSTEM

Hydraulically driven, twin capstan bullwheels with on-demand payout. Digital and manual hydraulic operation interface.

Pulling Rope

DDHXA-75 3/8 in., 6 x 25 XIP IWRC steel wire rope, 2,000 ft.

DDHXA-100 7/16 in., 6 x 25 XIP IWRC steel wire rope, 2,200 ft.

SPECIFICATIONS

Pulling Capacity Max

7,500/10,000 lbs


Bullwheels

Twin capstan, 6 in. dia., 5-groove followed by 6-groove/ Twin capstan, 7 in. dia., 5-groove followed by 6-groove


Engine

49 peak Hp, Diesel, water-cooled, electric start


Pulling Rope

3/8 in., 6 x 25 XIP IWRC steel wire rope, 2,000 ft./ 7/16 in., 6 x 25 XIP IWRC steel wire rope, 2,200 ft


Frame Construction

Steel tubing, continuous-weld


Length, Overall, Nominal

16 ft. 9 in.


Width, Overall, Nominal

95 in.


Height, Overall, Nominal

114 in.


Weight, Nominal

7,200 lbs. with rope/7,400 lbs. with rope




DDHX-75-OVER

OPTIONS

Strobe Light


Solar Battery Charger


Submersible Pumps


Air Adapter Kits


Underground Blocks Available


Self-priming, compact, high-impact trainer housing pump


See utility tools
