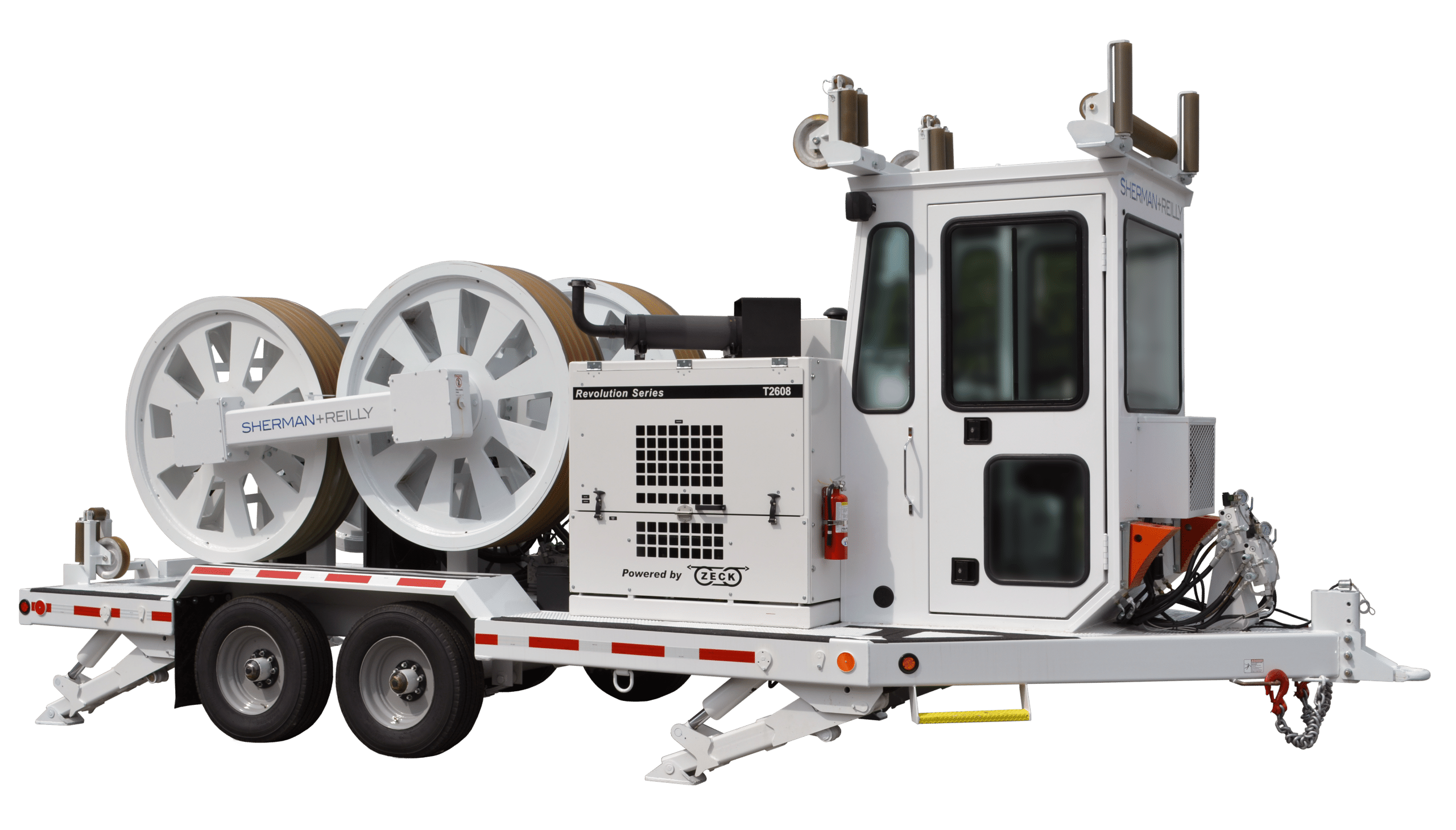

T-2608 BULLWHEEL TENSIONER

TWO CONDUCTORS, 8,000 LBS. 60 IN. BULLWHEEL TENSIONER

The Sherman+Reilly Revolution Series T-2608 is a bullwheel tensioner built with two pairs of 60 in. 5-groove bullwheels (4 total) and a max tensioning capacity of 8,000 lbs. per sub-conductor or bullwheel. Each bullwheel has its own planetary gearbox and hydraulic motor with spring-applied hydraulic release brake. A precision, microprocessor-controlled motor drive enables inching, even under maximum load.

Download SPEC Sheet

Contact Us

Key Features

CAPABILITY

Two sets of 60 in. 5-groove bullwheels capable of tensioning and pullback up to 8,000 lbs. Low-tension mode allows for fiber optic tensioning. Canted bullwheels for T2 conductor.

DRUM

Hydraulically controls two reel stands.

HYDRAULIC SYSTEM

Direct drive hydraulic motor and bullwheel. Open center hydraulic configuration, optimized for low-force & synchronized tensioning. Designed to work with up to three compatible tensioners.

OPERATOR’S STATION

Features a Safe-Zone® Cab for the safety and comfort of the operator with a floor to ceiling polycarbonate front window for excellent visibility and protection. The cab includes climate control, an adjustable ergonomic seat, and all required electronic controls and gauges.

Specifications

Print Specifications

Tensioning Capcity

2,000 lbs.
Maximum Line Speed

Pulling: 4 mph
Drive System

Direct Drive: hydraulic motor,
bullwheel
Drive System Engine

Diesel, 85 Hp, water-cooled with
Webasto Arctic Pack
Bullwheels:

Nominal Diameter: 60 in.
Bullwheel Count: 4 ea.
Bullwheel Groove Count: 5 per
Bullwheel Groove Radius: 1 in.
Groove Lining: Polyurethane
Bottom of Groove: 57.75 in. dia.
Tension Brake:

Hydraulic, motor-driven
Fuel Capacity:

12 Gallons

Click Here For ALL SPECS

OPTIONS

Solar Battery Charger

All Specifications

T-2608 BULLWHEEL TENSIONER

DOWNLOAD SPECIFICATIONS

Tensioning Capcity

2,000 lbs.
Maximum Line Speed

Pulling: 4 mph
Drive System

Direct Drive: hydraulic motor,
bullwheel
Drive System Engine

Diesel, 85 Hp, water-cooled with
Webasto Arctic Pack
Bullwheels:

Nominal Diameter: 60 in.
Bullwheel Count: 4 ea.
Bullwheel Groove Count: 5 per
Bullwheel Groove Radius: 1 in.
Groove Lining: Polyurethane
Bottom of Groove: 57.75 in. dia.
Tension Brake:

Hydraulic, motor-driven
Fuel Capacity:

12 Gallons
Hydraulic Fluid

ISO Grade 32
Hydraulic Reservoir

20 gallon
External Hydraulic Connections

Quick Disconnect Type, 2 front, 2 rear (for use with CRS-96/67 and CRS-108/83)
Fail-Safe Brake

Spring-applied- released by hydraulic pressure
Fairlead Rollers

2 front, 2 rear
Operator’s Safety Enclosure

Safe-Zone® Cab, fully enclosed, dual door, climate controlled
Frame Construction

Steel tubing, continuous-weld
Length

(Overall, Nom.) 26 ft.
Width

(Overall, Nom.) 8 ft., 6 in.
Height

(Overall, Nom.) 10 ft., 10 in.
Weight*

20,600 lbs.
GVWR

26,500 lbs.

Suspension

Leaf-spring
Axle Configuration

Tandem
Wheel Configuration & Tires

Single, 235/70R 17.5
Brakes

(Trailer) Electric, with break-away safety switch
Towing Attachment

3 in. adjustable pintle eye, with two safety chains and hooks
Rear (R/L) Jacks

Hydraulic, with shoe, anti-slide (2)
Front/Nose Jacks

Hydraulic, with shoe, anti-slide (2)
Electrical System

Split 12/24 VDC
Battery

(2) 12 V, 680 CCA, BCI group 48
Lights / Navigation

US DOT, LED, 12 VDC
Exterior Work Lighting

Cab-top, flood
Grounding

3/4 in. dia. Copper-clad Steel ground loops (4)
Wheel Chocks

Standard
Fire Extinguisher

ABC
Color

S+R White
Safety Chains

2 ea., with hooks
