PLW-200H Heritage Series Pilot Line Winder

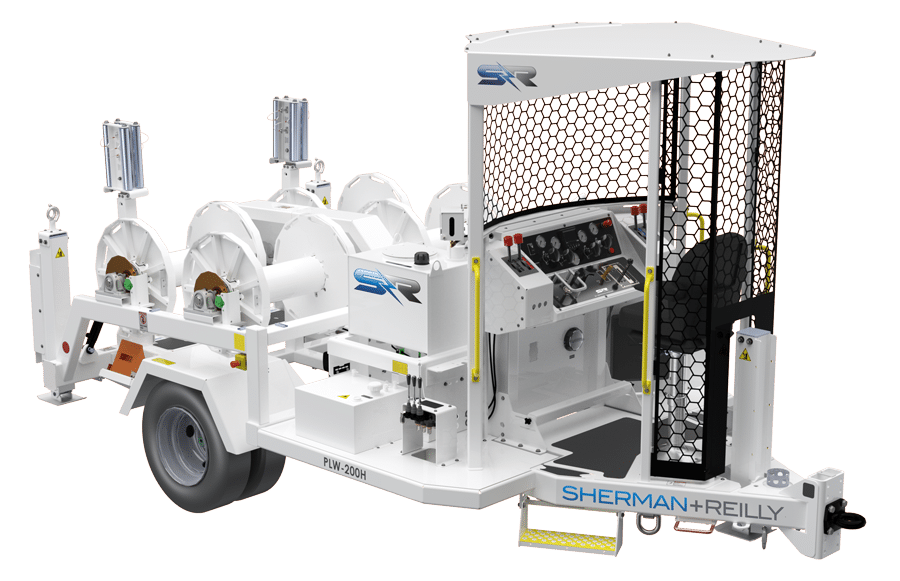

The Sherman+Reilly® Heritage Series PLW-200H four drum pilot line winder features a Safe-Shield open cab with Ocu-view honeycomb design and 2,000 lbs. of pulling capacity. Equipped with real-time self diagnostics and CANbus technology, the operator can access all major controls from the seated operator station. Manually controlled disc brakes have a 12” diameter bronze disc.
Additionally, the PLW-200H also offers a new galvanized finish for a more durable and weather resistant finish. The equipment also features newly positioned tie off points to allow for quicker line/phase change over and securing of drum-specific pilot lines.
Key Features
CAPABILITY
2,000 lbs. pulling force (rated at top of drum)
DRUM CAPACITY
HYDRAULIC SYSTEM
Hydraulic motor, chain, and sprocket. Powered by a Tier 4 Diesel, 49 peak hp, water cooled engine.
OPERATOR’S STATION
Safe-Shield open cab with Ocu-view honeycomb.
Specifications
-
Pulling Capacity Max
2,000 lbs. (Rated at top of drum)
-
Max Line Speed
4.0 mph top of drum
-
Payout Break
Manually controlled disc brakes, 12″ diameter disc, bronze
-
Reel Capacity
6,000 ft. of 7/16″ PE-12 rope
-
Drive System
Hydraulic Motor, chain and sprocket
-
Engine
Tier 4 Diesel, 49 peak Hp, water cooled
-
Fuel Capacity
13 Gallon
-
Hydraulic Fluid
ISO Grade 32
-
Hydraulic Reservoir
25 Gallon
-
Levelwind
Hydraulically controlled, joystick controlled (2)
-
Operator’s Safety Enclosure
Safe-Zone® Open Enclosure
-
Frame Construction
Steel tubing, continuous weld
-
Length
(Overall, Nom.) 17 ft., 3 in.
-
Width
(Overall, Nom.) 8 ft., 5 in.
-
Height
(Overall, Nom.) 9 ft. 1 in.
-
Weight*
10,300 lbs. nom.
-
GVWR
10,800 est.
OPTIONS
- Solar Battery Charger
All Specifications
PLW-200H Heritage Series Pilot Line Winder
-
Tensioning Capcity
2,000 lbs.
-
Maximum Line Speed
Pulling: 4 mph
-
Drive System
Direct Drive: hydraulic motor,
bullwheel -
Drive System Engine
Diesel, 85 Hp, water-cooled with
Webasto Arctic Pack -
Bullwheels:
Nominal Diameter: 60 in.
Bullwheel Count: 4 ea.
Bullwheel Groove Count: 5 per
Bullwheel Groove Radius: 1 in.
Groove Lining: Polyurethane
Bottom of Groove: 57.75 in. dia. -
Tension Brake:
Hydraulic, motor-driven
-
Fuel Capacity:
12 Gallons
-
Hydraulic Fluid
ISO Grade 32
-
Hydraulic Reservoir
20 gallon
-
External Hydraulic Connections
Quick Disconnect Type, 2 front, 2 rear (for use with CRS-96/67 and CRS-108/83)
-
Fail-Safe Brake
Spring-applied- released by hydraulic pressure
-
Fairlead Rollers
2 front, 2 rear
-
Operator’s Safety Enclosure
Safe-Zone® Cab, fully enclosed, dual door, climate controlled
-
Frame Construction
Steel tubing, continuous-weld
-
Length
(Overall, Nom.) 26 ft.
-
Width
(Overall, Nom.) 8 ft., 6 in.
-
Height
(Overall, Nom.) 10 ft., 10 in.
-
Weight*
20,600 lbs.
-
GVWR
26,500 lbs.
-
Suspension
Leaf-spring
-
Axle Configuration
Tandem
-
Wheel Configuration & Tires
Single, 235/70R 17.5
-
Brakes
(Trailer) Electric, with break-away safety switch
-
Towing Attachment
3 in. adjustable pintle eye, with two safety chains and hooks
-
Rear (R/L) Jacks
Hydraulic, with shoe, anti-slide (2)
-
Front/Nose Jacks
Hydraulic, with shoe, anti-slide (2)
-
Electrical System
Split 12/24 VDC
-
Battery
(2) 12 V, 680 CCA, BCI group 48
-
Lights / Navigation
US DOT, LED, 12 VDC
-
Exterior Work Lighting
Cab-top, flood
-
Grounding
3/4 in. dia. Copper-clad Steel ground loops (4)
-
Wheel Chocks
Standard
-
Fire Extinguisher
ABC
-
Color
S+R White
-
Safety Chains
2 ea., with hooks
