WB1800/14+7 Z366 PULLER TENSIONER – Zeck

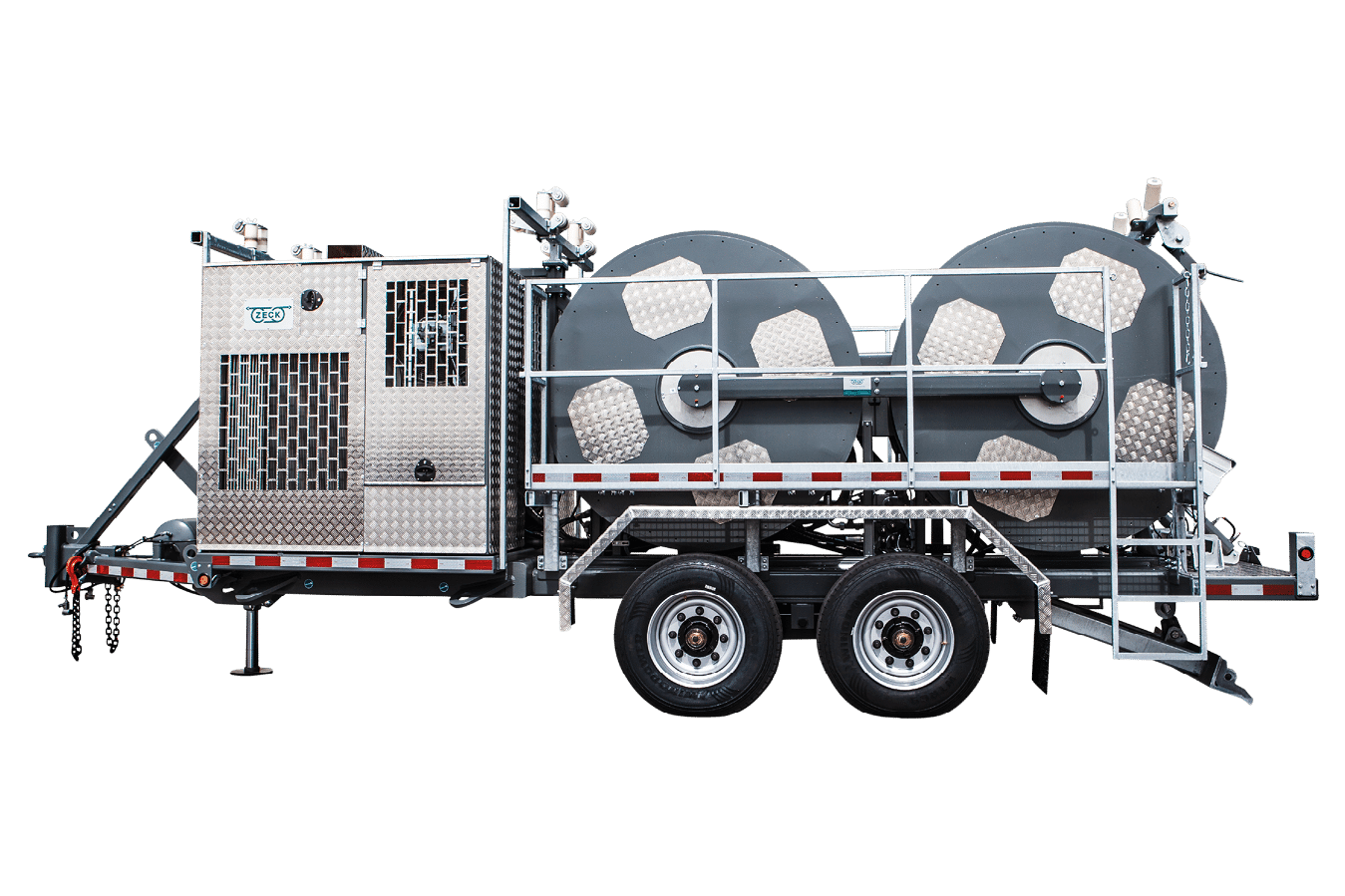

The Zeck WB1800/14+7 Z366 is a Bullwheel Puller, Tensioner, and Reconductorer in a single unit delivering 2x15,750 lb. or 1x31,500 lb. of pulling and tensioning force with a maximum speed of 4 mph. The 71 in. bullwheels provide constant tension and handle transmission-class conductors. WB1800/14+7 Z366 features a fully electronic, integrated control system for precision application of force to conductors in a compact footprint providing maximum versatility.

zeck-logo
Download Spec Sheet
Contact Us

KEY FEATURES

Capability

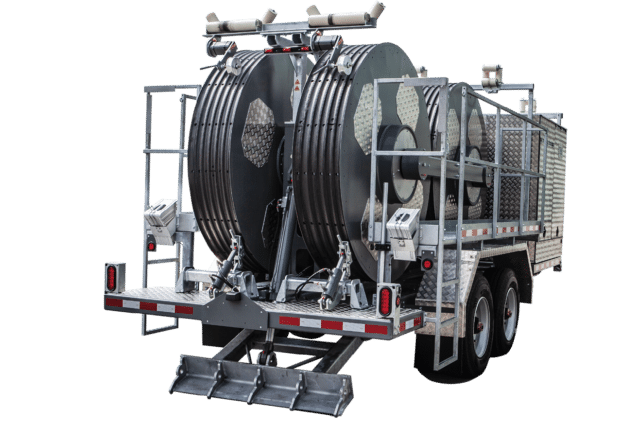

  • Featuring two sets of dual 71 in. bullwheels, this machine offers pulling and tensioning capacities of 2x15,750 lb. or 1x31,500 lb. Independently controlled bullwheels allow for precise adjustments and speed or tension variations. Each bullwheel is equipped with an automatically activating safety brake and automatic rope clamping system to prevent rope slippage. With Zeck’s patent pending Smart Low Tensioning System (SLTS), this machine is perfectly suited for OPGW or pilot rope applications.

Operator’s Station

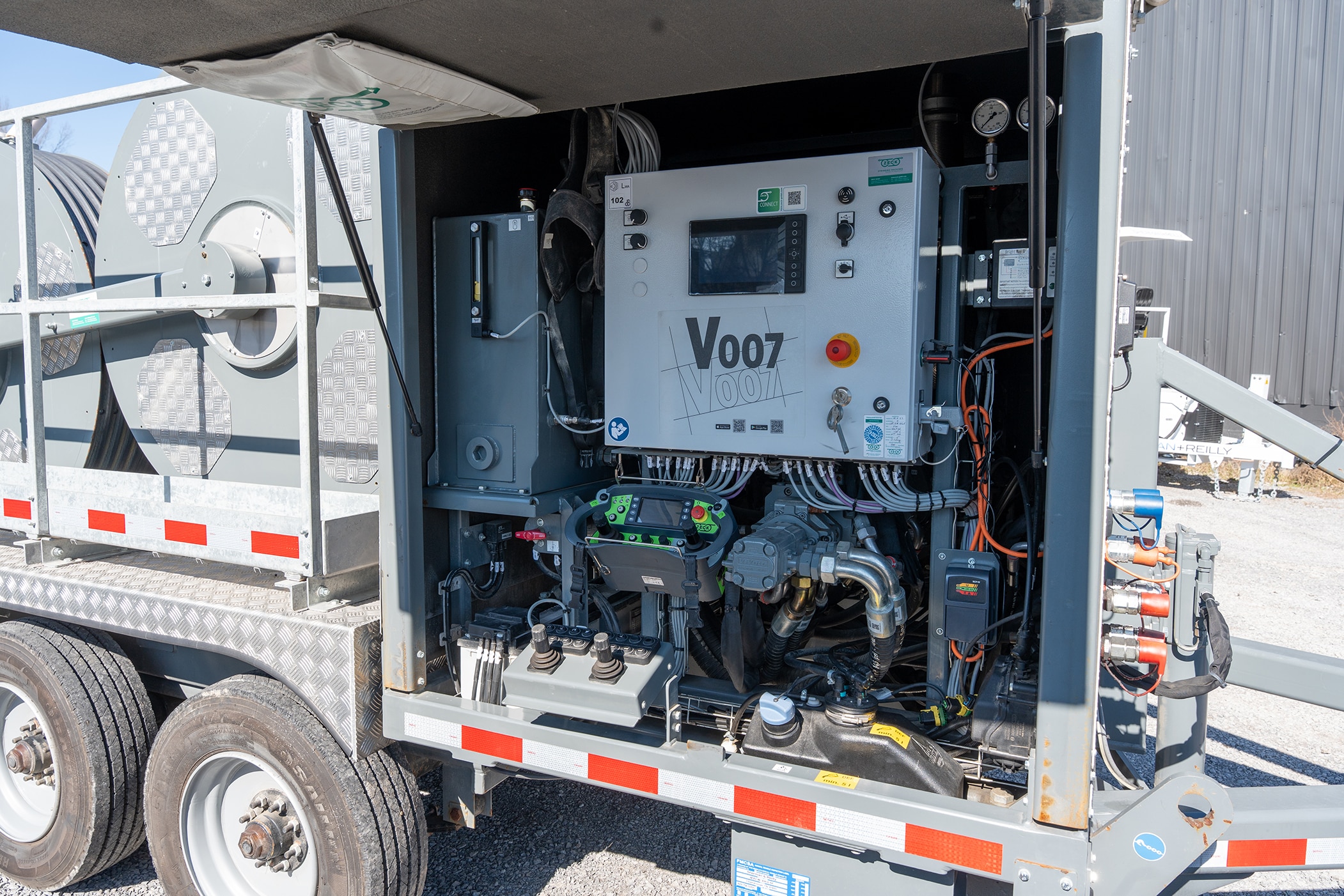

  • Wireless remote control with color display offers digital real time feedback, infinite line control, and maximum tension settings to optimize productivity and safety. The on-board controller and display provide data recording, intelligent diagnostics, and fault recognition to minimize downtime and ensure compliance.

Hydraulic System

  • Direct drive motor is efficient and reliable with minimal maintenance.

Versatility

  • The WB1800/14+7 Z366 is a Puller, Tensioner, and Reconductorer in a single unit.  Its small footprint allows for jobsite flexibility.

SPECIFICATIONS

Print WB1800/14+7 Z366 PULLER TENSIONER - Zeck Specifications
Maximum Pulling Capacity

2 x 15,750 lb. - OR - 1 x 31,500 lb.

Maximum Tensioning Capacity

2 x 15,750 lb. - OR - 1 x 31,500 lb.

Minimum Tensioning Capacity

1 Bullwheel
ATS: 3,300 lb.
SLTS: 450 lb.

2 Bullwheels
ATS: 1,574 lb.
SLTS: 330 lb.

Maximum Line Speed

Pulling: 4 mph
Tensioning: 4 mph

Bullwheels

Nominal Diameter: 71 in.
Bullwheel Count: 4 (2 x 2)
Bullwheel Groove Lining: Replaceable
Groove Diameter Ø: 2.36 in.

Length

(Overall, Nom.) 297 in

Width

(Overall, Nom.) 94 in

Height

(Overall, Nom.) 134 in

Weight

29,700 lb.

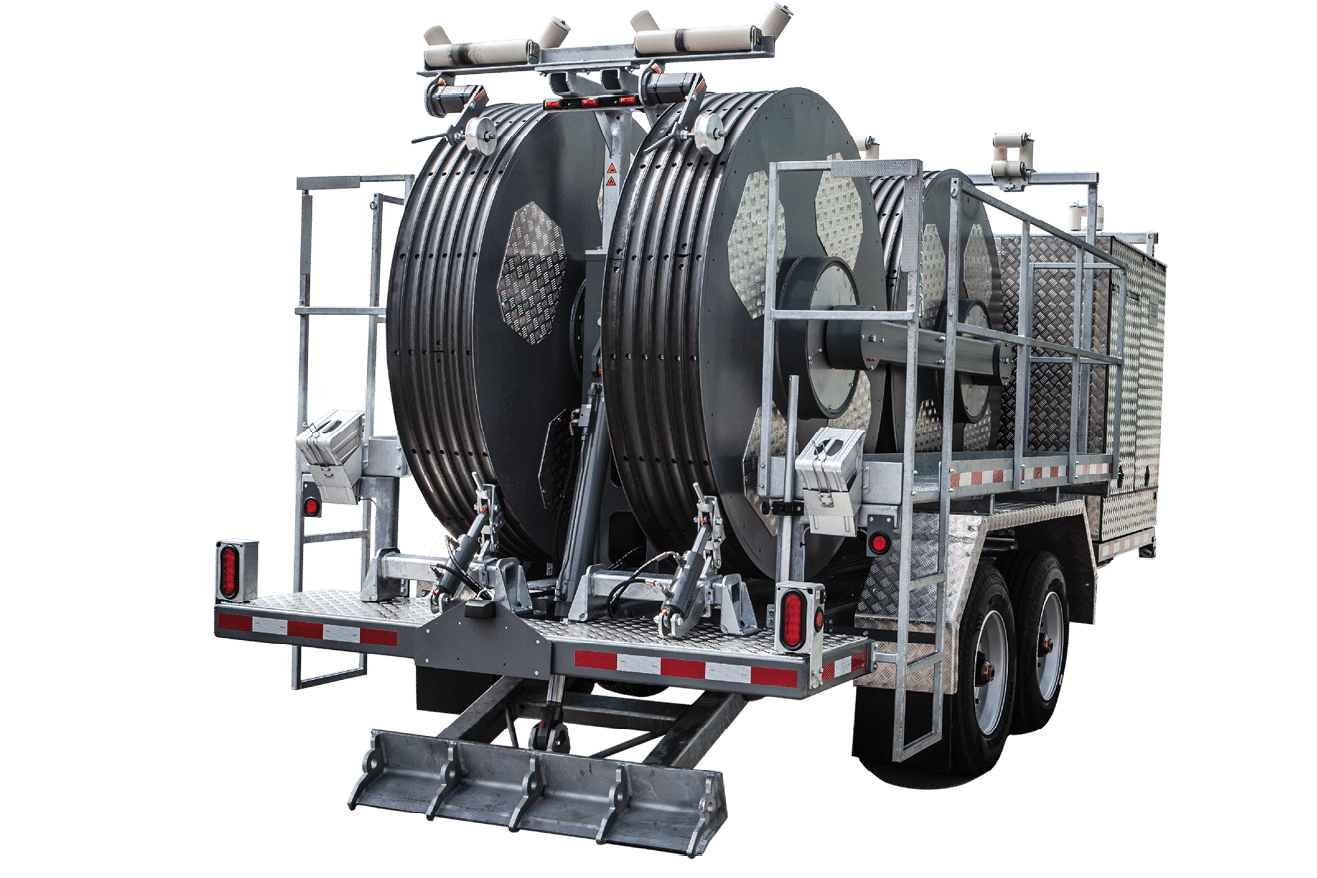

Zeck-WB-1800-1

OPTIONS

Precleaner for engine air filter.

Printer for ZECK Stringing Data Record System.

Remote diagnosis via GSM network with GPS modem.

Hydraulic system (700/1,000 bar) to power pressing tool.

Synchronization system (multi machine operation).

SLTS, Smart Low Tensioning System (machine can be used in stringing operations with low tensioning force, e.g. OPGW).

Arctic Kit with preheating system for up to -22°F.

Biodegradable hydraulic oil.

Aluminum cover, color as per RAL color table.
