P-2000x Bullwheel Puller

20,000 LBS. BULLWHEEL PULLER

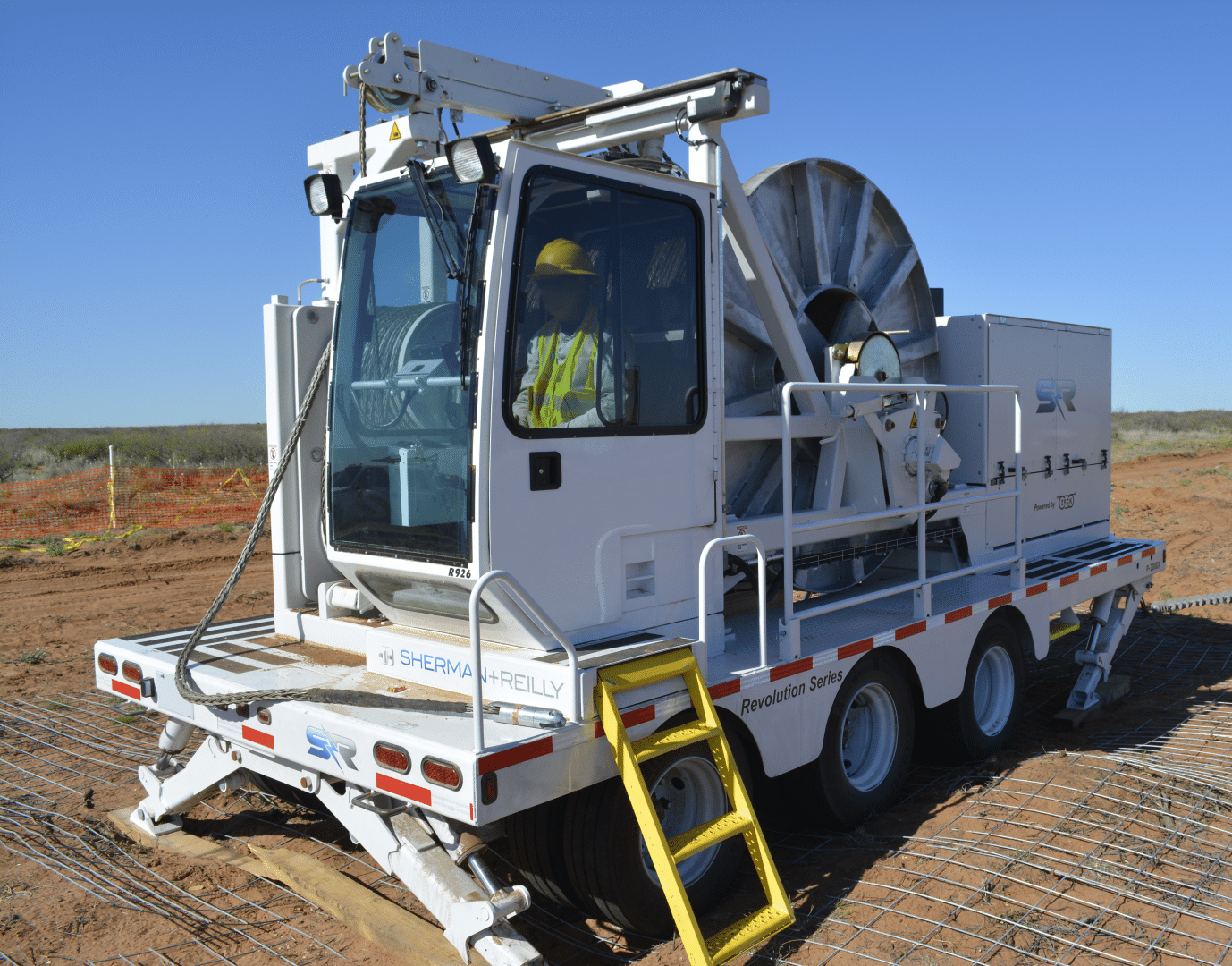

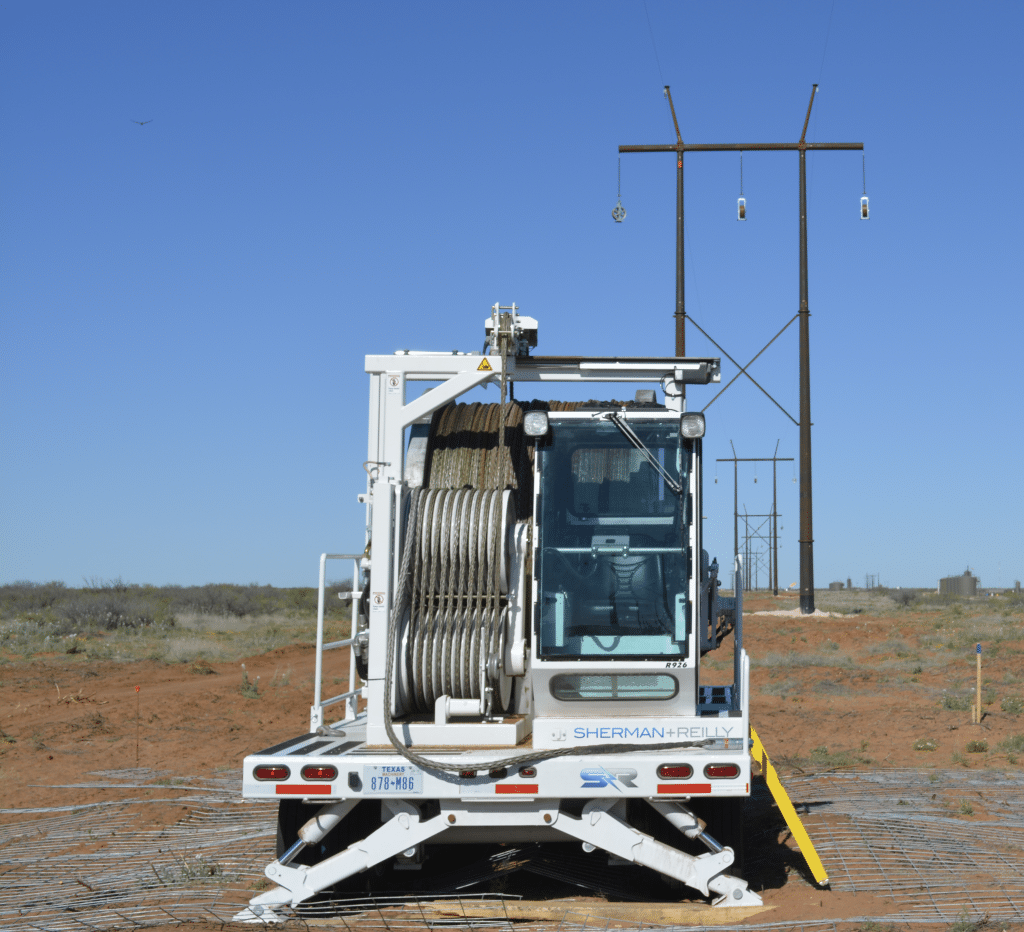

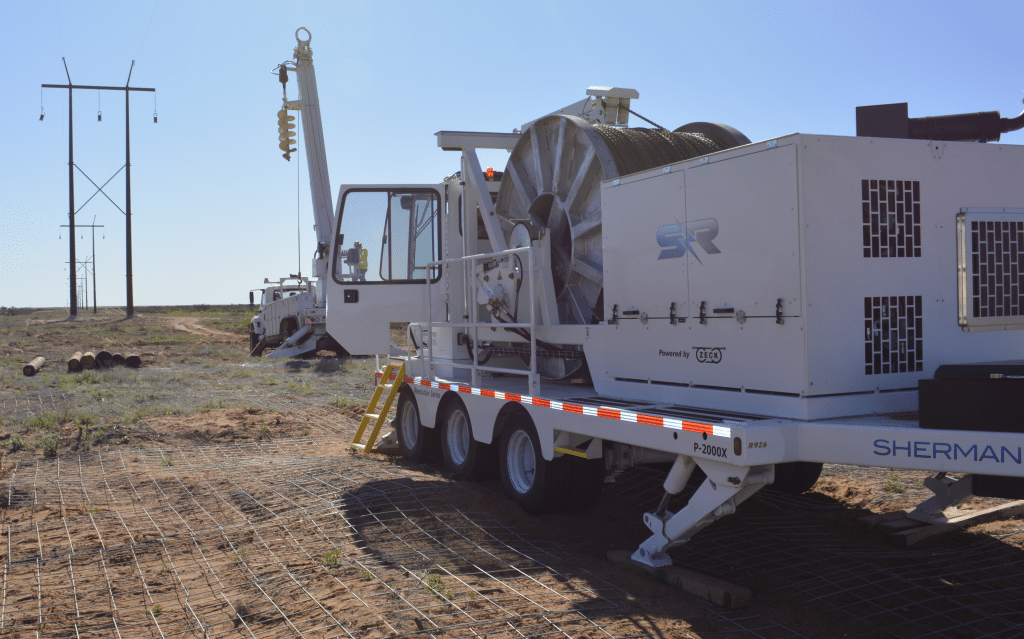

The Sherman+Reilly® Revolution Series P-2000X Bullwheel Puller is a single reel puller capable of pulling up to 20,000 lbs. This transmission class puller utilizes an automatic horizontal levelwind that permits overhead rope retrieval with precision control. The P-2000X is equipped with an ACG (advanced control group), allowing for a single operator at a protected central console to control payout speed, pulling speed, levelwind controls, and jack position.

Download Spec Sheet

KEY FEATURES

CAPABILITY

Pulling capacity of 20,000 lbs. Reel capacity of 23,000 ft. 20 mm anti-twist steel cable.

OPERATOR'S STATION

The Safe-Zone® Cab employs a floor to ceiling polycarbonate front window for maximum visibility while providing superior protection against impact. The cab includes climate control, a fully adjustable ergonomic seat, and all required electronic controls and gauges.

HYDRAULIC SYSTEM

Fully hydraulic direct drive system provides the operator with precise and intuitive automatic drive/drum braking.

OPTIONS

Solar battery charger available.

SPECIFICATIONS

Print P-2000x Bullwheel Puller Specifications

Pulling Capacity

Max: 20,000 lbs. (Rated maximum)

Maximum Line Speed

Pulling: 4 mph

Controls

Digital with real-time tension monitoring and recording

Drum Dimensions

Core Diameter: 30 in. / Total Outside Width: 76 in.

Inside Width

50 in. / Flange Diameter: 76 in. (84 Optional)

Reel Capacity

21 mm. dia. Unitrex™ 21,500 ft. 20 mm. dia. anti-twist Steel cable 23,000 ft.

Drive System

Twin 22 in. Bullwheels w/Direct Hydraulic Drive

Drive System Engine

Diesel, 142 Hp Diesel, 175 Hp, water cooled Tier 3, with Webasto Arctic Pack

Fuel Capacity

12 gallon

Hydraulic Fluid

ISO Grade 32

Hydraulic Reservoir

20 gallon

Hydraulic Fluid Filtration

10 micron, both supply and return filters
