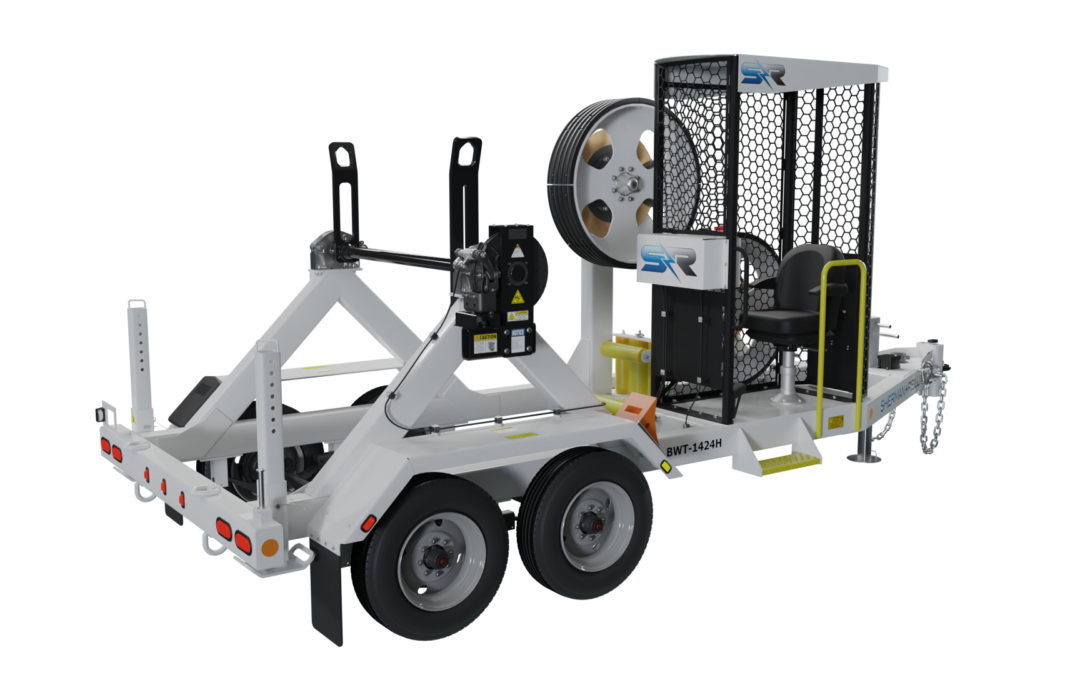

Heritage Series BWT-1424H Bullwheel Tensioner

Dual 42” 5-Groove Bullwheel Tensioner – 4,000 lbs. Capacity

The new Heritage Series BWT-1424H bullwheel tensioner, features two 42 in. diameter 5 groove bullwheels with a maximum tensioning capacity of 4,000 lbs. The Safe Shield™ with Ocu-view enclosure reduces eye strain for maximized visibility and protection. Still the same sturdy bullwheel tensioner you’ve come to know and trust, with capability to accommodate all 795 conductors in a more economical package.

KEY FEATURES

CAPABILITY

Precision bullwheel tensioner, with reel carrier and controlled conductor payout in a single piece of equipment.

REEL CAPACITY

Integrated reel carrier accommodates reels up to 84″ OD x 52” W and 8,000 lbs.

TENSIONING CAPACITY

Tensioning capacity of 4,000 lbs.



BULLWHEELS

Pair of 42-inch, 5-groove bullwheels with coupled with 27.75 in. hydraulic brake.

BWT-1424H Heritage Series Bullwheel Tensioner

SPECIFICATIONS

Tensioning Capability

4,000 lbs.


Maximum Line Speed

Pulling: 4 mph


Tension Brake

27.75 in. diameter disc, bronze


Bullwheels

Nominal Diameter: 42 in.
Bullwheel Count: 2
Bullwheel Groove Count: 5 per
Bullwheel Groove Lining: Replaceable
Groove Radius: .6 in.
Groove Flare Angle: 12 in.
Groove Depth: .6 in.
Bottom of Groove Diameter: 40.73 in.


Payout Brake

16 in. diameter disc, bronze


Operator’s Safety Enclosure

Open-air Safe-Zone® enclosure
