UG-71

Protect conduit and cable with this underground block

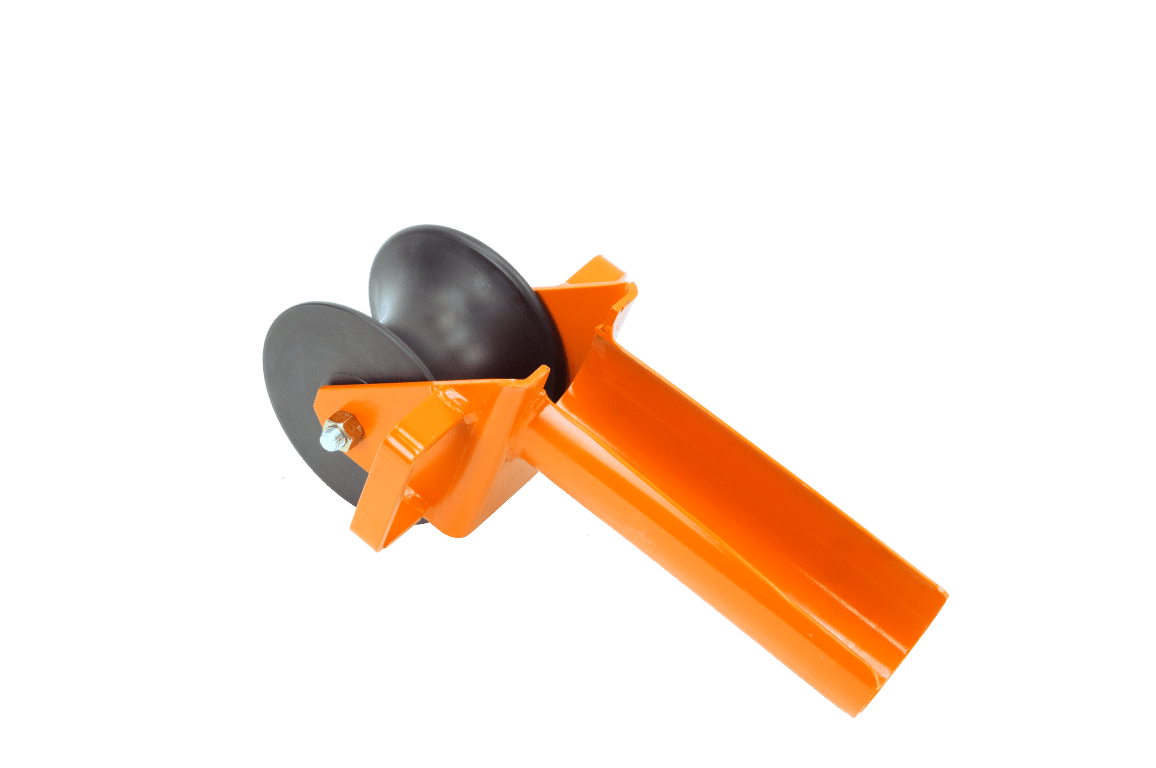

The UG-71 underground block helps protect the conduit and cable. Specify conduit size when ordering. Must fit snugly in conduit.

Key Features

Design

Ideal for quick installation in conduit.

Configuration

Slotted base allows for easy insertion, removal of pulling cable. Nylon sheave material. Net weight 25 lbs.

Sizing

Available in sizes to fit 2 in. through 6 in. conduit. Sheave Dimensions: 7 in. OD x 4-3/4 in. rim width; 2-1/8 in. groove radius accommodates up to 4 in. diameter cable.

Specifications

Print Specifications

All Specifications

UG-71

SPECIFICATIONS

Model No. Sheave Size, In. No. of Sheaves effective
radius, In.
Max O.D.
of Cable, In.
Max Working Load, Lbs approx. weight, lbs.
UG-73-PG-A 7 x 4 3/4 3 16 7/16 4 12,500 65
UG-103-PG-A 10 x 7 1/4 3 21 3/4 6 10,000 140
UG-104-PG 10 x 7 x 1/4 4 27 13/16 6 17,500 250
UG-104-PG 10 x 7 1/4 4 35 13/16 6 17,500 250
