Turret Reel Trailers – TRT-184 – One Reel

TRT-184 – ONE REEL Trailer

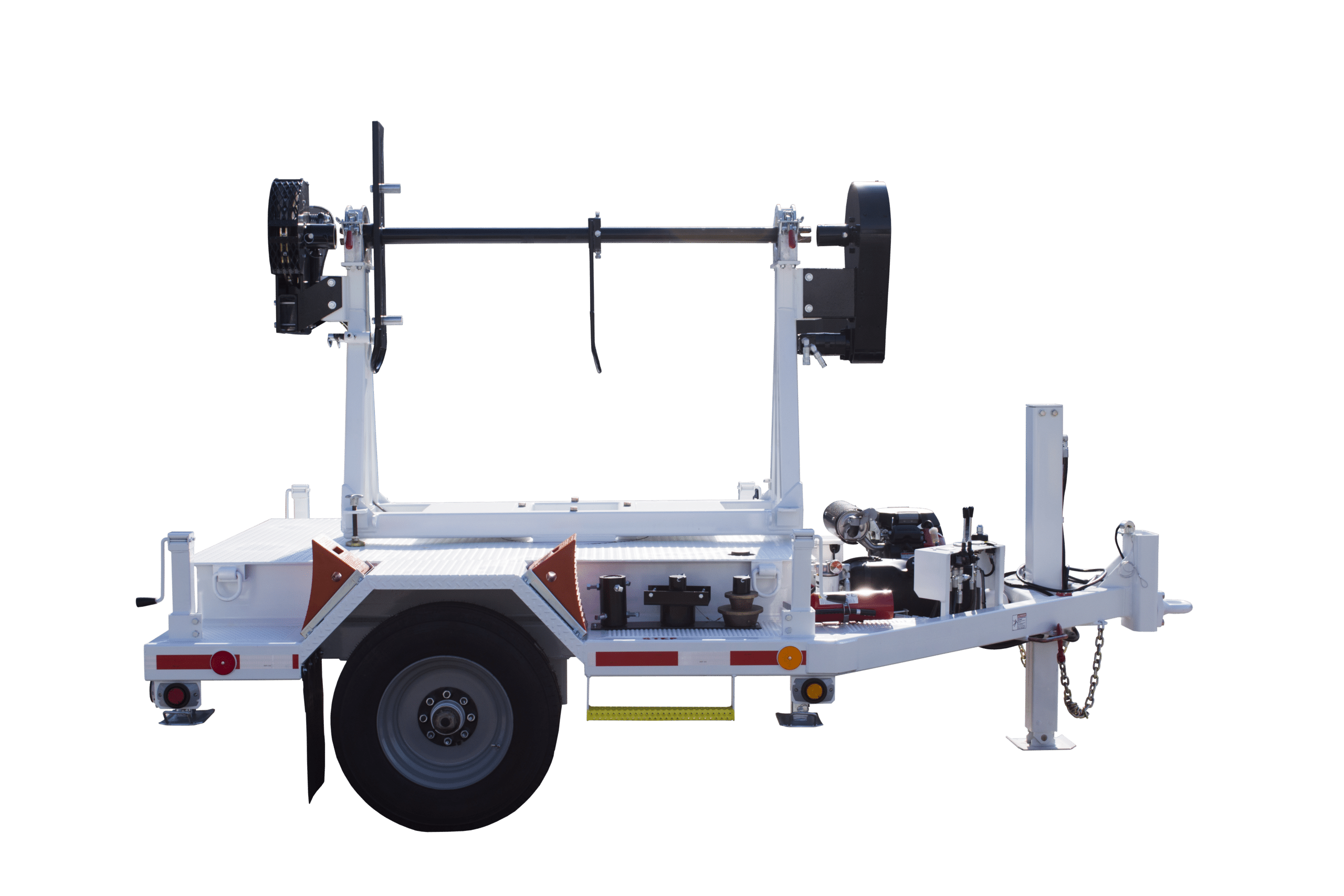

The Sherman + Reilly TRT-184/60 is a single reel trailer for transporting and deploying power-distribution or transmission conductor and optical-fiber cable. It has the capability of independently orienting the direction of payout without having to re-position the trailer.

Capable of handling reels up to 84 in. OD by 60 in. wide, weighing up to 7,000 lbs. The rotating turret may be locked at 15 different intervals. The shaft and drive bars can be coupled to a 16 in. diameter ventilated Al-bronze caliper/disc tension brake. The turret can also be removed, leaving a flat deck with tie-downs, allowing the transportation of other equipment.

Trailer equipment includes DOT lighting, adjustable front pintle eye, safety chains and hooks, grounding lug, and electric brakes. At each corner is an adjustable jack for stability during tough pulls.

Key Features

CAPABILITY

One reel. Maximum reel weight 7,000 lbs. Maximum reel size 84 in. OD x 60 in. wide.

Configuration

360-degree rotational range with single reel mount on a turret. Rotating turret may be locked at 15-degree intervals. Capable of independently orienting the direction of payout without having to re-position the trailer. Single axle.

Operation

Quick-release reel shaft bearings for easy and safe reel change. Turret may be removed to use trailer for transporting equipment.

Options

Optional hydraulically driven retriever, electric hydraulic payout brake, hydraulic front jack, hydraulic outriggers, and gathering window with bed rollers.

Specifications

Print Specifications

  • Maximum Reel Weight*

    7,000 lbs.

  • Maximum Reel Size

    84 in. OD x 60 in wide

  • Reel Shaft Diameter

    2‑5/8 in.

  • Tensioning Brake

    16 in. dia. disc, bronze

  • Turret Rotation Range

    360º, lockable at 15º increments

  • Frame Construction

    Steel tubing, continuous-weld

  • Length, overall, nom.

    13 ft. 4 in.

  • Width, overall, nom.

    8 ft.

  • Height, overall, nom.

    8 ft., 9 in., without reel

  • Height to Reel Centerline

    10 ft., 6 in.

  • Weight*

    4,600 lbs., without conductor or reel

  • GVWR

    12,000 lbs.

  • Suspension

    Leaf‑spring

  • Axle Configuration

    Single

  • Wheel Configuration & Tires

    Single, 235/70R17.5

  • Brakes, trailer

    Electric with break‑away switch

  • Front/Nose Jack

    Manual Screw Type with shoe

  • Corner Stability Jacks

    Screw type, with shoe, 4 ea.

  • Tie-Downs

    D-rings, 1 ea. at platform corners

  • Towing Attachment

    3 in. adjustable pintle eye

  • Safety Chains

    2 ea., with hook

  • Lights, navigation

    US DOT, LED, 12 VDC

  • Paint

    S+R White

OPTIONS

  • Electric Over Hydraulic Payout Brakes
  • Hydraulic Retriever
  • 20 Hp Powerpack
  • Hydraulic Front Jack
  • Hydraulic Outrigger Jack TRT-384/60-24K
  • Gathering Window and Bed Rollers
  • RDG-2100 Rotating Distribution Ground
  • DG-4100 Running Ground
  • Solar Battery Charger
  • Spider® Pilot Line System with independent levelwind
