Turret Reel Trailer – TRT-184 – One Reel
TRT-184 – SINGLE REEL Trailer

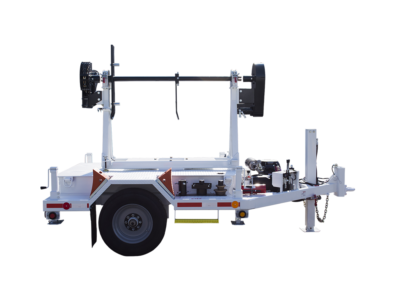

The Sherman+Reilly TRT-184/60 is a single reel trailer for transporting and deploying power-distribution or transmission conductor and optical-fiber cable. It has the capability of independently orienting the direction of payout without having to re-position the trailer.
Capable of handling reels up to 84 in. OD by 60 in. wide, weighing up to 7,000 lbs. The rotating turret may be locked at 15 different intervals. The shaft and drive bars can be coupled to a 16 in. diameter ventilated Al-bronze caliper/disc tension brake. Also, the turret can also be removed, leaving a flat deck with tie-downs, allowing the transportation of other equipment.
Turret reel trailer equipment includes DOT lighting, adjustable front pintle eye, safety chains and hooks, grounding lug, and electric brakes. Additionally at each corner is an adjustable jack for stability during tough pulls.
Key Features
CAPABILITY
Configuration
Operation
Options
Specifications
-
Maximum Reel Weight*
7,000 lbs.
-
Maximum Reel Size
84 in. OD x 60 in wide
-
Reel Shaft Diameter
2‑5/8 in.
-
Tensioning Brake
16 in. dia. disc, bronze
-
Turret Rotation Range
360º, lockable at 15º increments
-
Frame Construction
Steel tubing, continuous-weld
-
Length, overall, nom.
13 ft. 4 in.
-
Width, overall, nom.
8 ft.
-
Height, overall, nom.
8 ft., 9 in., without reel
-
Height to Reel Centerline
10 ft., 6 in.
-
Weight*
4,600 lbs., without conductor or reel
-
GVWR
12,000 lbs.
-
Suspension
Leaf‑spring
-
Axle Configuration
Single
-
Wheel Configuration & Tires
Single, 235/70R17.5
-
Brakes, trailer
Electric with break‑away switch
-
Front/Nose Jack
Manual Screw Type with shoe
-
Corner Stability Jacks
Screw type, with shoe, 4 ea.
-
Tie-Downs
D-rings, 1 ea. at platform corners
-
Towing Attachment
3 in. adjustable pintle eye
-
Safety Chains
2 ea., with hook
-
Lights, navigation
US DOT, LED, 12 VDC
-
Paint
S+R White
OPTIONS
- Electric Over Hydraulic Payout Brakes
- Hydraulic Retriever
- 20 Hp Powerpack
- Hydraulic Front Jack
- Hydraulic Outrigger Jack TRT-384/60-24K
- Gathering Window and Bed Rollers
- RDG-2100 Rotating Distribution Ground
- DG-4100 Running Ground
- Solar Battery Charger
- Spider® Pilot Line System with independent levelwind
