SWIVELS AND CONNECTORS

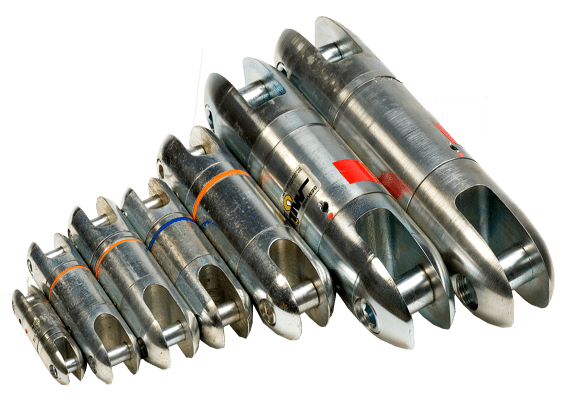

Overhead Line Stringing Swivels
Swivels
Specifically designed for overhead line stringing, these swivels are reliable, heavy duty products with adequate load rating for tension stringing, yet small enough in diameter to pass through conductor stringing blocks. Precision machined, alloy steel. Neoprene seals with stainless steel spring retainers. Compatible with strengths of pulling line and grips.

Connectors
Sherman + Reilly connectors are a convenient, economical way to connect when rotation is not needed or is detrimental.These connectors provide a fast, cost-effective method of connecting pulling lines and conductors. Constructed of high-strength, heat-treated steel, connectors are short and light with a contoured nose to allow easy passage through sheaves.

Key Features

Design

Designed for overhead line stringing.

Configuration

Swivels are precision machined, alloy steel. Its neoprene seals have stainless steel spring retainers. Connectors are built from high-strength, heat-treated steel.

Sizing

Compatible with strengths of pulling line and grips.

Options

Swivels have six sizes to choose from with a MWL of 1,800 lbs to 30,000 lbs. Connectors have five size options, with MWL of 4,000 lbs.to 16,000 lbs. You can find the specifications for each of these options below.

Specifications

Print Specifications

All Specifications

SWIVELS AND CONNECTORS

OVERVIEW



Swivels
Specifically designed for overhead line stringing, these swivels are reliable, heavy duty product with adequate load rating for tension stringing, yet small enough in diameter to pass through conductor stringing blocks. Swivels should never be passed through bullwheels. Be sure to check the diameter of the swivel against the dimension on the blocks, etc. Swivels are precision machined, alloy steel and heat-treated for maximum strength and wear. Swivels should be compatible with the strengths of pulling line and grips. These swivels D-160 3/4 in. are not recommended for underground use in conduit.

Connectors
Sherman + Reilly connectors are a convenient, economical way to connect when rotation is not needed or is detrimental. These connectors do not rotate. They are not intended as a swivel replacement if rotation is desired. These connectors provide a fast, cost-effective method of connecting pulling lines and conductors. Constructed of high-strength, heat-treated steel, connectors are short and light with a contoured nose to allow easy passage through sheaves

SPECIFICATIONS

Swivel Dimensions
Model No. Wire Rope Size in. Max Working Load, lbs. A

in.

B

in.

C

in.

D

in.

E

in.

F

in.

G

in.

Swivel Wt., lbs.
A-18 1/4 1,800 7/8 2 15/32 3 3/8 15/32 5/16 5/16 19/32 3/8
B-40 1/2 4,000 1.25 3.66 4.51 .44 .59 .38 .69 1
B-75 1/2 7,500 1 1/2 4 5 3/8 11/16 5/8 7/16 7/8 1 3/4
C-100 5/8 10,000 1 7/8 5 7/16 7 1/16 13/16 3/4 5/8 15/16 4
D-160 3/4 16,000 2 2/16 7 7/8 10 1/8 1 1/8 1 7/8 1 9/16 8
D-300 1 30,000 2 1/2 8 29/32 11 5/32 1 1/8 1 7/8 1 9/16 9

COMPETE DIMENSIONS

Connector Dimensions
Model No. Max Working Load, lbs. A

in.

B

in.

C

in.

D

in.

E

in.

F

in.

G

in.

L-40 4,000 1 1/4 1/2 3/8 2 3/4 5/16 1 7/8 3/4
L-75 7,500 1 7/16 9/16 7/16 3 5/16 9/16 2 3/16 27/32
L-100 10,000 1 7/8 3/4 5/8 4 1/2 13/16 2 7/8 1 1/8
L-133 13,300 2 3/4 5/8 4 3/4 7/8 3 1 1/8
L-160 16,000 2 7/16 1 7/8 6 1/8 1 1/8 3 7/8 1 9/16
