CRS-68/44 SINGLE-REEL STATIONARY REEL STANDS

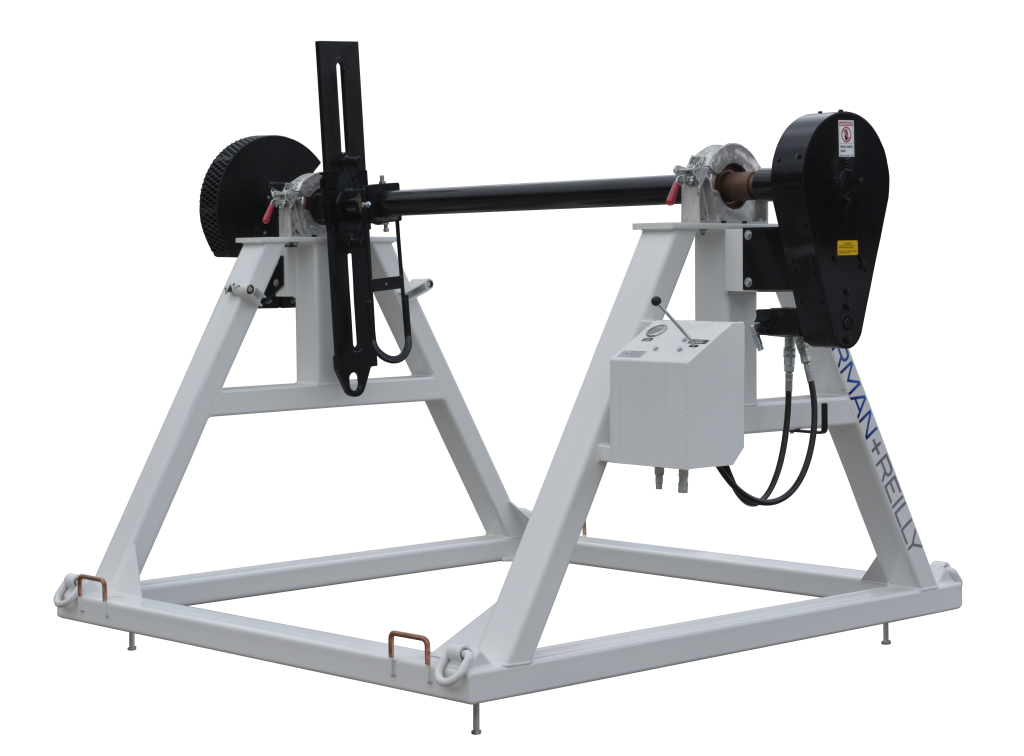

CRS-68/44 – 8,000 LBS. CAPACITY Reel Stand
Constructed of high-strength steel tubing, this single-reel stationary reel stand can handle a maximum reel weight of 8,000 lbs. With anchor rings and grounding bars at each corner, and a reinforced truss on a rectangular base, this reel stand measures 5 ft. long by 7 ft. 5 in. wide (including payout brake) and 4 ft. 6 in. high.

Key Features

CAPABILITY

Single reel. Maximum reel size 68 in. OD x 44 in. wide. 8,000 lbs. Fully static at full width.

Configuration

Frame configuration is a reinforced truss on a rectangular base. Constructed with structural-grade steel tubing with anchor rings and grounding bars at each corner.

Operation

Disc-caliper payout brake for controlled tail-tension. With purchase of hydraulic retriever package, quick-disconnect hydraulic fittings allow for rapid set up.

Options

Can be used with optional RDG-2100 Rotating Distribution Ground, DG-4100 Running Ground, or a Hydraulic Retriever.

Specifications

Print Specifications

  • Maximum Reel Size:

    68 in. OD x 44 in. wide

  • Maximum Reel Weight:

    8,000 lbs., fully static at full width

  • Payout Brake:

    Manual, 20 in. dia. disc. Aluminum‑bronze

  • Frame Configuration:

    Reinforced truss on rectangular base

  • Frame Construction:

    High-strength steel tubing

  • Length, overall, nom.:

    5 ft.

  • Width, overall, nom.:

    7 ft., 5 in.(including payout brake)

  • Height, overall, nom.:

    4 ft., 6 in.

  • Grounding:

    3/4 in. dia. copper ground loops (4)

  • Tie-Downs:

    5/8 in. dia. Steel D-Rings (4)

  • Paint:

    S+R White

  • Drive Bar Diameter:

    2 5/8 in.
