PTR-7240 & PTR-7240S Bullwheel Puller Tensioner Reconductorer

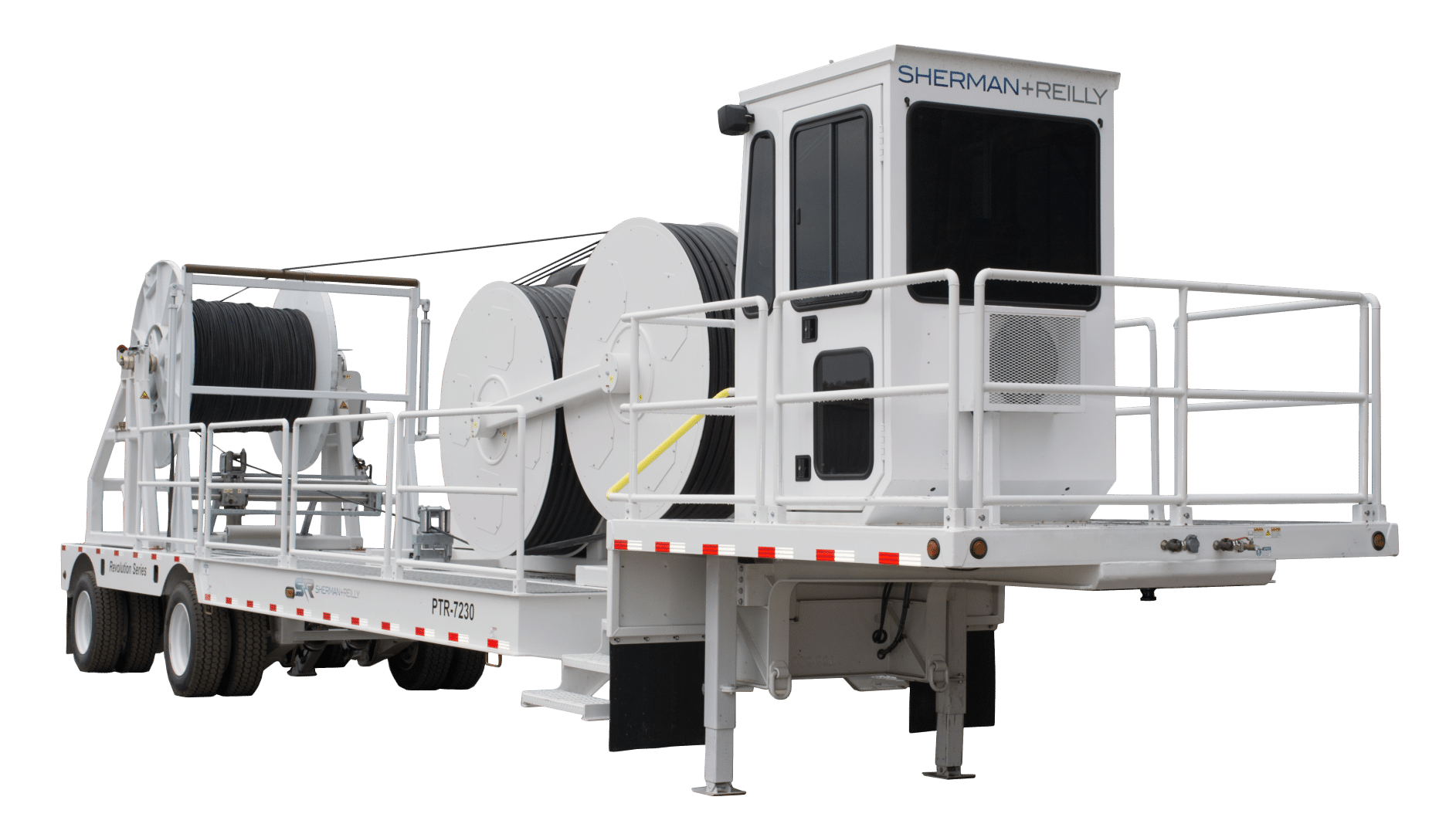

The Sherman+Reilly Revolution Series PTR-7240 is a bullwheel puller tensioner and reconductorer in a single unit delivering 40,000 lbs. of pulling force with a maximum speed of 4 mph, and tensions up to 25,000 lbs. The 72” bullwheels provide constant tension and handles transmission-class conductors. The PTR-7240 features a fully electronic, integrated control system for precision application of force to conductors, and an integrated drum for steel hardline; no separate reel trailer is required.
The PTR-7240S split model unit is a puller tensioner and reconductorer in a paired unit with a separated reel carrying trailer with a pulling drum designed for synthetic rope or steel hardline.
Key Features
CAPABILITY
HYDRAULIC SYSTEM
OPERATOR’S STATION
RECONDUCTORING
Specifications
-
Pulling Capacity
40,000 lbs.
-
Tensioning Capacity
25,000 lbs.
-
Maximum Line Speed
Pulling: 4 mph. @ 16,000 lbs. / 2.3 mph @ 30,000 lbs.
-
Hardline Capacity
(Maximum) 24 mm. dia. Anti-Twist Steel Cable /
20,646 ft. on 112 in. Reel / 29,999 lbs. total weight -
Rope
29,500 ft. of 1.15 in. dia. Unitrex / 17,750 lbs. total weight
-
Drive System
Direct Drive
hydraulic motor, bullwheel
-
Drive System Engine
Turbo charged, diesel, 375 Hp, watercooled with Webasto Arctic Pack
-
Reel Shaft Diameter
3 -5/8 in.
OPTIONS
- Solar Battery Charger
All Specifications
PTR-7240 & PTR-7240S Bullwheel Puller Tensioner Reconductorer
This machine also allows for synchronized integration of external reel stands by bypassing the provided automatic levelwind and a reconductoring reel. The PTR-7240’s heavy-duty 5th wheel trailer offers excellent ground clearance for tackling very rugged terrain. The addition of a powerful Caterpillar C9 industrial diesel engine, supplies plenty of power for the large and long pulls. The operator controls employ PLC machine control with CAN-bus technology, and uses a removable/replaceable memory card to store all relevant stringing data. The onboard computer system allows for self-diagnostics of all hydraulic circuits with results shown on a large color display.
The PTR-7240 features a Safe-Zone Cab® providing ultimate safety and comfort for the operator. The Safe-Zone Cab® employs a poly carbonate front window for maximum visibility while providing superior protection against impact. The cab includes climate control, a fully adjustable ergonomic seat, and all required electronic controls and gauges. The Safe-Zone Cab® is designed to reduce operator fatigue, and provide an “off-ground” envelope for greatly reducing the risk of “touch potential” in energized environments.
-
Pulling Capacity
40,000 lbs.
-
Tensioning Capacity
25,000 lbs.
-
Maximum Line Speed
Pulling: 4 mph. @ 16,000 lbs. / 2.3 mph @ 30,000 lbs.
-
Hardline Capacity
(Maximum) 24 mm. dia. Anti-Twist Steel Cable /
20,646 ft. on 112 in. Reel / 29,999 lbs. total weight -
Rope
29,500 ft. of 1.15 in. dia. Unitrex / 17,750 lbs. total weight
-
Drive System
Direct Drive
hydraulic motor,bullwheel
-
Drive System Engine
Turbo charged, diesel, 375 Hp, watercooled with Webasto Arctic Pack
-
Bullwheels
(2) 72 in. / 8 Groove 1-3/16 in.
-
Groove Radius / Molded Neoprene / Replaceable
-
Fuel Capacity
35 Gallon
-
Hydraulic Fluid
ISO Grade 32
-
Hydraulic Reservoir
20 Gallon
-
Hydraulic Fluid Filtration
25 microns, two in tank returns filters
-
Tensioning Brake
Hydraulic-applied, automatically controlled- per operator settings
-
Levelwind
Hydraulically driven, automatically controlled
-
Fail-Safe Brake
Spring-applied-released by hydraulic pressure
-
Fairlead Rollers
Single, hydraulically driven, automatically controlled, remotely adjustable
-
Operator’s Safety Enclosure
Safe-Zone® Cab, fully enclosed, dual door, climate controlled
-
Frame Construction
Steel, continuous-weld
-
Rear (R/L) Jacks
(2) Hydraulic, with shoe
-
Front/Nose Jacks
(2) Hydraulic, vertical cylinder type, with shoe
-
Battery
(2) 12 V, 720 CCA, BCI group 93
-
Lights / Navigation
US DOT, LED, 12 VDC
-
Fire Extinguisher
ABC
-
Color
S+R White
-
Electrical System
Split 12/24 VDC
-
Reel Trailer Jack Power
13 Hp Engine, hydraulic pump/reservoir
-
Reel Shaft Diameter
3 -5/8 in.
PTR-7240 |
PTR-7240S |
Split Model RC3000X Reel Trailer |
|
| Length: (Overall, Nom.) | 48 ft. | 34 ft., 6 in. | 23 ft. |
| Width: (Overall, Nom.) | 8 ft., 6 in. | 8 ft., 6 in. | 8 ft., 6 in. |
| Height: (Overall, Nom.) | 12 ft., 2 in. | 12 ft., 4 in. | 9 ft., 10 in. |
| GVWR: | 67,260 lbs. | 65,200 lbs. | 58,527 lbs. |
| Suspension: | Air Ride | Air Ride | Air Ride |
| Axle Configuration: | Tandem | Tandem | Tandem |
| Wheel Configuration & Tires: | Dual 275/70R22.5 | Dual 275/70R22.5 | Dual 275/70R22.5 |
| Brakes: (Trailer) | Air | Air | Air |
| Towing Attachment: | 5th Wheel, 2 in. king pin | 5th Wheel, 2 in. king pin | 5th Wheel, 2 in. king pin |
| Tie Downs: (Per Trailer) | (2) 1 in. dia. Steel D-Rings | (2) 1 in. dia. Steel D-Rings | (2) 1 in. dia. Steel D-Rings |
| Rope Tie-Offs: (Per Trailer) | (2) 1 in. dia. steel D-Rings | (2) 1 in. dia. steel D-Rings | (2) 1 in. dia. steel D-Rings |
| Grounding: (Per Trailer) | (6) 3/4 in. dia. Copper-clad Steel ground loops | (4) 3/4 in. dia. Copper-clad Steel ground loops | (4) 3/4 in. dia. Copper-clad Steel ground loops |
| Maximum Reel Size: | 112 in. dia. 60 in. width | N/A | 112 in. dia. 60 in. width |
| Maximum Static Reel Weighted Capacity: | 30,000 lbs. with Reel | N/A | 30,000 lbs. with Reel |
| Maximum Transport Reel Weighted Capacity: | 10,500 lbs. with Reel | N/A | 10,500 lbs. with Reel |
