PTR-7230 & PTR-7230S Puller Tensioner Reconductorers

30,000 LBS. BULLWHEEL PULLER TENSIONER RECONDUCTORER

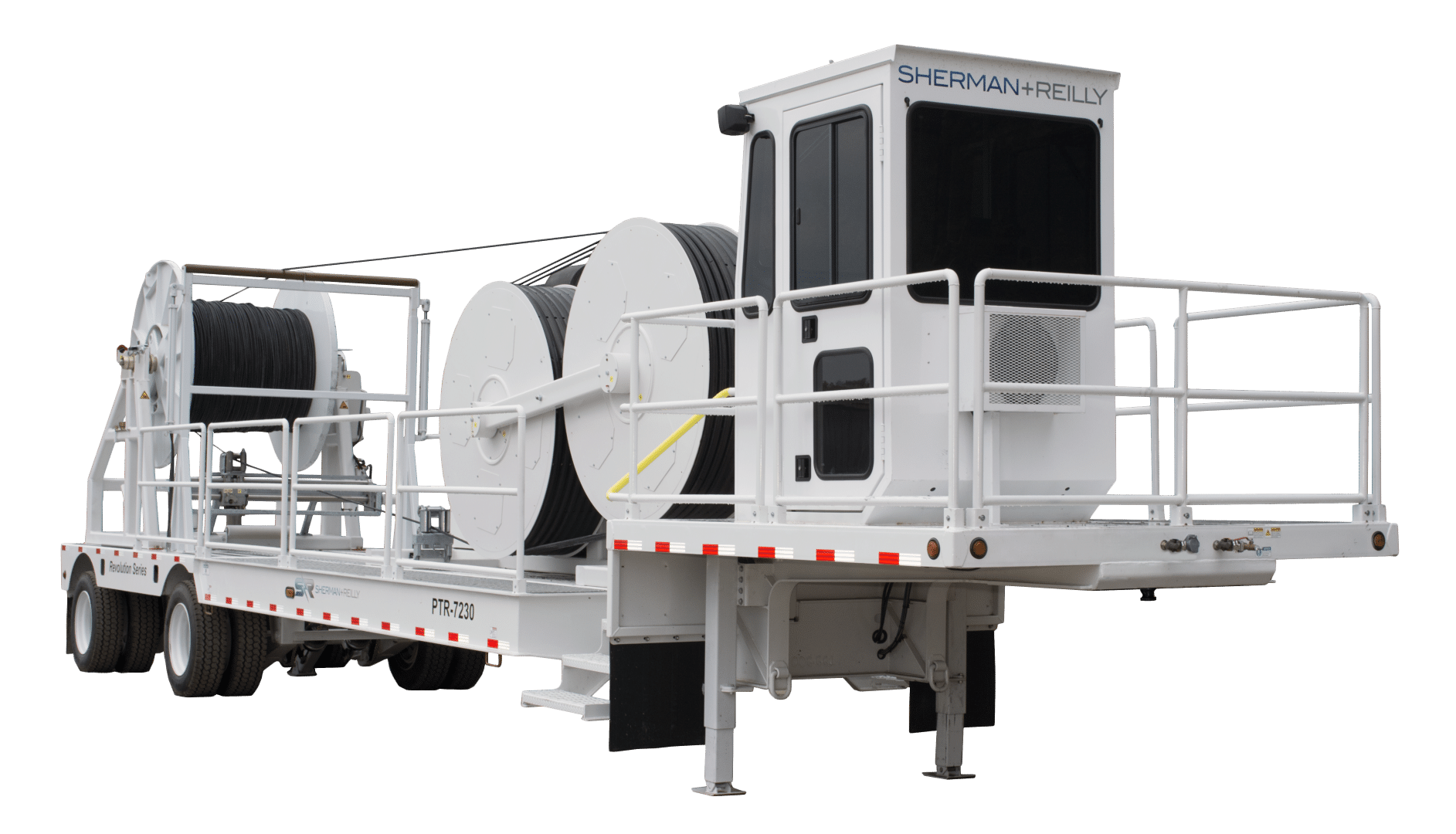

The Sherman+Reilly Revolution Series PTR-7230 is a puller tensioner reconductorer in a single unit delivering 30,000 lbs. of pulling force and tensions up to 25,000 lbs. With a maximum speed of 4 mph, the 72 inch bullwheels provide constant tension and can handle transmission-class conductors.

The PTR-7230 features a fully electronic, integrated control system for precision application of force to conductors, and an integrated drum for steel hardline; no separate reel trailer is required. PTR-7230S split model unit offers the reel carrying trailer in a separate unit includes a pulling drum designed for synthetic rope or steel hardline.

Download SPEC Sheet

Contact Us

Key Features

CAPABILITY

Capable of pulling up to 30,000 lbs. and tensioning up to 25,000 lbs.

HYDRAULIC SYSTEM

Fully hydraulic direct drive system.

OPERATOR’S STATION

Safe-Zone^® Cab providing ultimate safety and comfort for the operator. The Safe-Zone^® Cab employs a polycarbonate front window for maximum visibility while providing superior protection against impact. The cab includes climate control, a fully adjustable ergonomic seat, and all required electronic controls and gauges.

RECONDUCTORING

The PTR-7230 is a puller, tensioner, and reconductorer in a single unit with reconductoring capability for up to two different conductors at one time. PTR-7230S is a split model unit with a separate reel carrying trailer.

Specifications

Print Puller Tensioner Reconductorer Specifications

Pulling Capacity

30,000 lbs.
Tensioning Capacity

25,000 lbs.
Maximum Line Speed

Pulling
4 mph. @ 16,000 lbs. / 2.3 mph @ 30,000 lbs.
Hardline

18,000 ft. of 24 mm dia. Anti-Twist
Steel Cable / 22,000 lbs. total weight
Rope

26,000 ft. of 0.84 in. dia.
Unitrex rope / 10,200 lbs. total weight
Drive System

Direct Drive: hydraulic motor, bullwheel
Drive System Engine

Turbocharged, diesel, 268 Hp, watercooled with Webasto Arctic Pack
Bullwheels

72 in. / 8 Groove 1-3/16 in. Groove
Radius / Molded Neoprene /
Replaceable
Tension Brake

Hydraulic-applied, automatically controlled-per operating settings
Fuel Capacity

35 gallon
Hydraulic Fluid

ISO Grade 32
Hydraulic Reservoir

20 gallon
Hydraulic Fluid Filtration

(3) 25 microns, two in tank return filters
Levelwind

Hydraulically driven, automatically controlled

Click Here For ALL SPECS

OPTIONS

Solar Battery Charger

All Specifications

PTR-7230 & PTR-7230S Puller Tensioner Reconductorers

DOWNLOAD SPECIFICATIONS

Pulling Capacity

30,000 lbs.
Tensioning Capacity

25,000 lbs.
Maximum Line Speed

Pulling
4 mph. @ 16,000 lbs. / 2.3 mph @ 30,000 lbs.
Hardline

18,000 ft. of 24 mm dia. Anti-Twist
Steel Cable / 22,000 lbs. total weight
Rope

26,000 ft. of 0.84 in. dia.
Unitrex rope / 10,200 lbs. total weight
Drive System

Direct Drive: hydraulic motor, bullwheel
Drive System Engine

Turbocharged, diesel, 268 Hp, watercooled with Webasto Arctic Pack
Bullwheels

72 in. / 8 Groove 1-3/16 in. Groove
Radius / Molded Neoprene /
Replaceable
Tension Brake

Hydraulic-applied, automatically controlled-per operating settings
Fuel Capacity

35 gallon
Hydraulic Fluid

ISO Grade 32
Hydraulic Reservoir

20 gallon
Hydraulic Fluid Filtration

(3) 25 microns, two in tank return filters
Levelwind

Hydraulically driven, automatically controlled

Fail-Safe Brake

Spring-applied-released by hydraulic pressure
Fairlead Rollers

Single, hydraulically driven, automatically controlled, remotely adjustable
Operator’s Safety Enclosure

Safe-Zone® Cab, fully enclosed, dual door, climate controlled
Frame Construction

Steel, continuous-weld
Rear (R/L) Jacks

(2) Hydraulic, with shoe
Front/Nose Jacks

(2) Hydraulic, vertical cylinder type, with shoe
Electrical System

Split 12/24 VDC
Battery

(2) 12 V, 720 CCA, BCI group 93
Lights / Navigation

US DOT, LED, 12 VDC
Grounding

3/4 in. dia. Copper-clad Steel ground loops (4)
Wheel Chocks

Standard (2 per trailer with the split model)
Fire Extinguisher

ABC (2 per trailer with the split model)
Color

S+R White
Reel Shaft Diameter

3-5/8 in

	PTR-7230	PTR-7230S Split Model	PTR-7230S Pintle Eye	RC3000X Reel Trailer	RC2500X Reel Trailer
Length: (Overall, Nom.)	48 ft.	34 ft., 6 in.	30 ft., 9 in.	23 ft.	21 ft., 10 in.
Width: (Overall, Nom.)	8 ft., 6 in.	8 ft., 6 in.	8 ft., 6 in.	8 ft., 6 in.	8 ft., 6 in.
Height: (Overall, Nom.)	12 ft., 2 in.	12 ft., 4 in.	11 ft.	9 ft., 10 in.	12 ft., 4 in.
GVWR:	67,260 lbs.	65,200 lbs.	37,020 lbs.	58,527 lbs.	58,527 lbs.
Suspension:	Air Ride	Air Ride	Air Ride	Air Ride	Air Ride
Axle Configuration:	Tandem	Tandem	Tandem	Tandem	Tandem.
Wheel Configuration & Tires:	Dual 275/70R22.5	Dual 275/70R22.5	Dual 275/70R22.5	Dual 275/70R22.5	Dual 275/70R22.5
Brakes: (Trailer)	Air	Air	Air	Air	Air
Towing Attachment:	5th Wheel, 2 in. king pin	5th Wheel, 2 in. king pin	3 in. pintle eye	5th Wheel, 2 in. king pin	3 in. pintle eye
Tie Downs: (Per Trailer)	(2) 1 in. dia. Steel D-Rings	(2) 1 in. dia. Steel D-Rings	(2) 1 in. dia. Steel D-Rings	(2) 1 in. dia. Steel D-Rings	(2) 1 in. dia. Steel D-Rings
Rope Tie-Offs: (Per Trailer)	(2) 1 in. dia. steel D-Rings	(2) 1 in. dia. steel D-Rings	(2) 1 in. dia. steel D-Rings	(3) 1 in. dia. steel D-Rings	(2) 1 in. dia. steel D-Rings
Grounding: (Per Trailer)	(6) 3/4 in. dia. Copper-clad Steel ground loops	(4) 3/4 in. dia. Copper-clad Steel ground loops	(4) 3/4 in. dia. Copper-clad Steel ground loops	(4) 3/4 in. dia. Copper-clad Steel ground loops	(4) 3/4 in. dia. Copper-clad Steel ground loops
Maximum Reel Size:	112 in. dia. 60 in. width	N/A	N/A	112 in. dia. 50 in. width	112 in. dia. 60 in. width
Maximum Static Reel Weighted Capacity:	30,000 lbs. with Reel	N/A	N/A	30,000 lbs. with Reel	25,000 lbs. with Reel
Maximum Transport Reel Weighted Capacity:	10,500 lbs. with Reel	N/A	N/A	10,500 lbs. with Reel	10.500 lbs. with Reel
