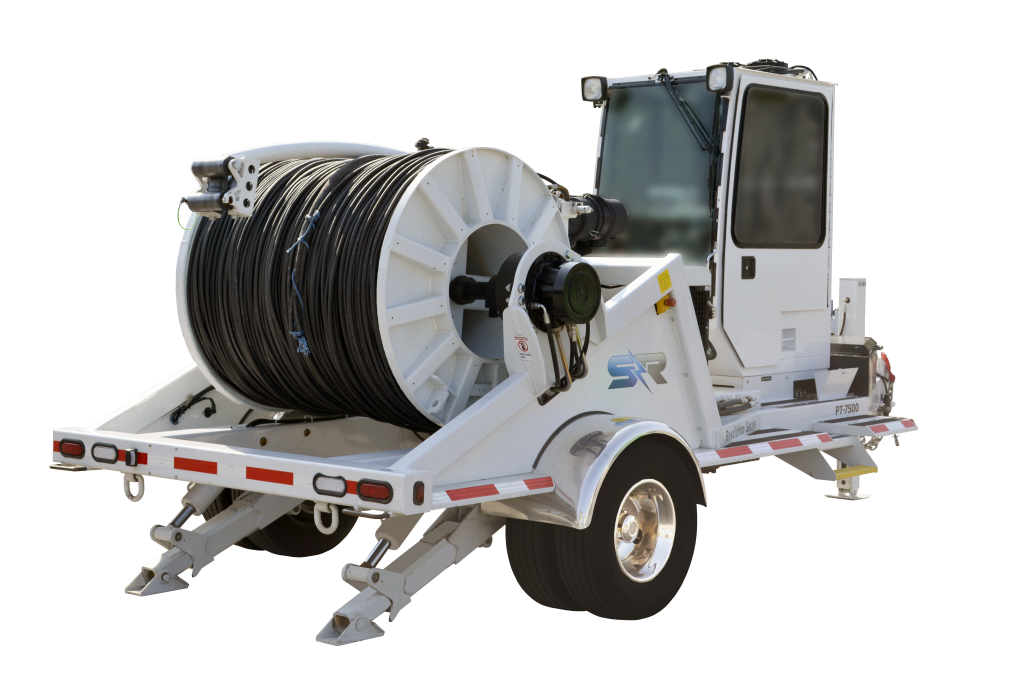

PT-7500 Puller Tensioner

7,500 LBS. SINGLE DRUM PULLER TENSIONER

The Sherman+Reilly Revolution Series PT-7500 Single Drum Puller Tensioner is a multi-purpose puller and tensioner capable of pulling up to 7,500 lbs., with additional re-conductoring capabilities. This distribution class puller utilizes an automatic horizontal floating levelwind that permits overhead rope retrieval with precision control. The PT-7500 is equipped with an ACG (advanced control group), allowing for a single operator at a protected central console to control payout speed, pulling speed and tension, levelwind controls, and jack position.

Key Features

CAPABILITY

Pulling: 7,500 lbs pulling force (rated at top of drum).

Tensioning: ???

DRUM CAPACITY

48 in. diameter/58 in. width comes standard with 10,500 ft. of ⅝ inch Uniline rope. Maximum Weight: Dynamic – Over the Road – 6,000 lbs. | Static – Jacks Extended – 7,000 lbs.

HYDRAULIC SYSTEM

Direct Drive: dual hydraulic motor, drum/reel shaft coupler and drive bar/ dual pin, driven by a Turbocharged, Tier-4 Final, diesel, 99 Hp, water-cooled Kubota(™) engine.

OPERATOR’S STATION

Features a Safe-Zone™ Cab for the safety and comfort of the operator with a floor to ceiling polycarbonate front window for excellent visibility and protection. The cab includes climate control, an adjustable ergonomic seat, and all required electronic controls and gauges.

Specifications

Print Specifications

  • Pulling Capacity

    7,500 lbs. (Rated from top of drum
    to core)

  • Tensioning Capcity

    2,000 lbs.

  • Maximum Line Speed

    Pulling: 4 mph

  • Maxiumum Conductor Reel Size

    66 in. diameter/39 in. wide

  • Maximum Conductor Reel Weight:

    Dynamic over the road: 6,000 lbs.
    Static Jacks Extended: 7,000 lbs.

  • Drum Dimensions:

    Core Diameter: 24 in.
    Total Outside Width: 58 in.
    Flange Diameter: 48 in.

  • Drum Capacity:

    5/8 in. Uniline™ 10,500 ft.
    .58 in. dia. Unitrex 12,350 ft.
    Additional rope capacities available
    upon request

  • Drive System

    Direct Drive: dual hydraulic motor,
    drum/reel shaft coupler and drive bar/
    dual pin

  • Drive System Engine

    Diesel, 99 Hp, water-cooled

  • Fuel Capacity:

    30 Gallon

  • Hydraulic Fluid:

    ISO Grade 32

  • Hydraulic Reservoir:

    40 Gallon

OPTIONS

  • Spider® Pilot Line System with independent levelwind
  • RCR-60: Core: 24 in. to 18 in. tapered Total Outside Width: 39 in. (Flange Diameter: 60 in.)
  • Solar Battery Charger
