POLE MOUNTING BRACKETS

Adjustable bracket for mounting XS-100-B blocks onto poles

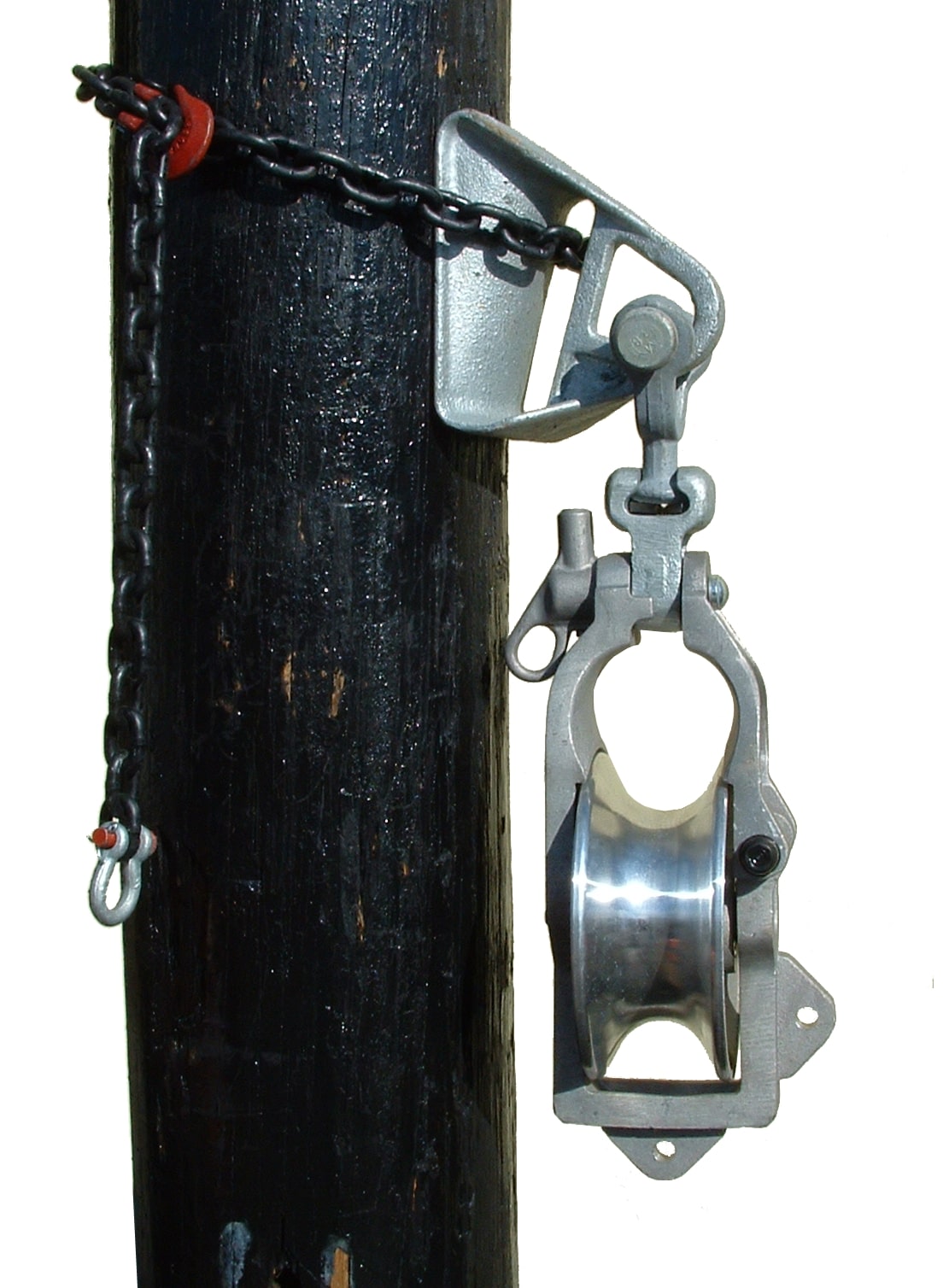

The S+R Model GK-200 “armless” pole bracket is made to accommodate two Model XS-100-B Universal blocks. One block can be mounted either in the vertical position or on an angle using the side lug. The second Universal block is suspended below and is free to assume any line angle. Ideal for poles with “armless” design, the GK-200 is adjustable to fit different diameter poles: wood, steel, aluminum, or concrete, without drilling or marking them.

Key Features

Design

Lightweight, high strength suspension bracket. Fitting enables block to be self-aligning on corners. Quickly and easily attaches with chain.

Configuration

Assembly includes chain, grab hook, bracket, and Y-ball clevis.

Sizing

Y-ball clevis forms universal connection for all stringing blocks with socket connector fittings. Self-tightening angled groove eliminates need for bolts or tools.

Options

Available block ground option.
