Plw-400x Pilot Line Winder

4,000 LBS. FOUR DRUM PILOT LINE WINDER 1

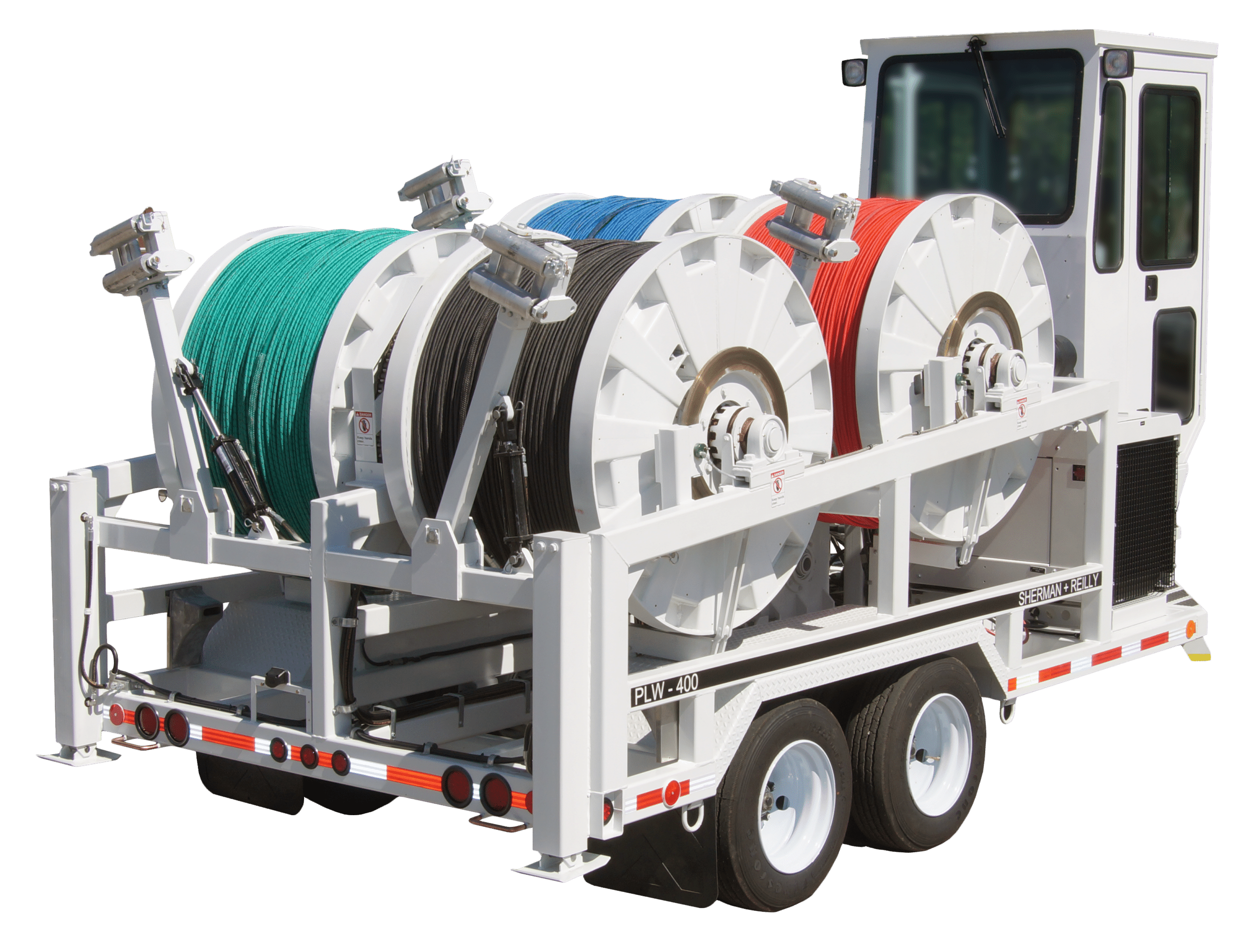

The Sherman + Reilly PLW-400 is a multi-purpose pilot line winder for pulling heavy overhead ropes as well as for pulling overhead distribution, sub-transmission, and some transmission-class conductors. With a pulling capacity of 4,000 lbs, the waterfall design permits overhead pulling of up to four lines/conductors consecutively. This puller has the power to handle big jobs in a single, compact, and adaptable configuration, helping to stretch equipment budgets and enhancing operational flexibility.

Key Features

CAPABILITY

4,000 lbs pulling force (rated at top of drum).

DRUM CAPACITY

16,500 ft. of 5/8” PE12 rope or 22,000 ft. of 0.44” Unitrex rope

HYDRAULIC SYSTEM

Hydraulic motor, chain and sprocket with Locking Crown Drum engagement powered by 71 HP T4F Kubota engine.

OPERATOR’S STATION

Features a Safe-Zone® Cab for the safety and comfort of the operator with a floor to ceiling polycarbonate front window for excellent visibility and protection. The cab includes climate control, an adjustable ergonomic seat, and all required electronic controls and gauges.

Specifications

Print Specifications

  • Pulling Capacity, Maximum

    4,000 lbs. rated at top of drum

  • Line Speed, Maximum Pulling

    4 mph (avg.)

  • Torque Rating, Maximum

    124,000 in. lbs. (4000 lbs. @ 31inch radius)

  • Pulling Drum Capacity

    16,500 ft. of 5/8” PE12 rope 22,000 ft. of 0.44” Unitrex rope

  • Pulling Drums

    (4) Flange Diameter: 62 in. Core Diameter: 25 in.

  • Width

    25 in., inside

  • Drive System

    Hydraulic motor, chain and sprocket with Locking Crown Drum engagement

  • Engine

    Tier 4 Diesel, 71 peak Hp, turbocharged, water cooled, DEF Not Required

  • Fuel Capacity

    30 Gallon

  • Hydraulic Fluid

    ISO Grade 32

  • Hydraulic Reservoir

    25 Gallon

  • Payout Brake

    1 per drum, 2 puck caliper at 1.5” each w/ 24 in. disc, manual control via ripstick

  • Levelwind

    One per drum (4), Hydraulically driven, joystick controlled

  • Operator’s Safety Enclosure

    Fully enclosed Safe-Zone Cab, sitdown, with A/C & Heat

OPTIONS

  • Solar Battery Charger
  • Air Brakes
