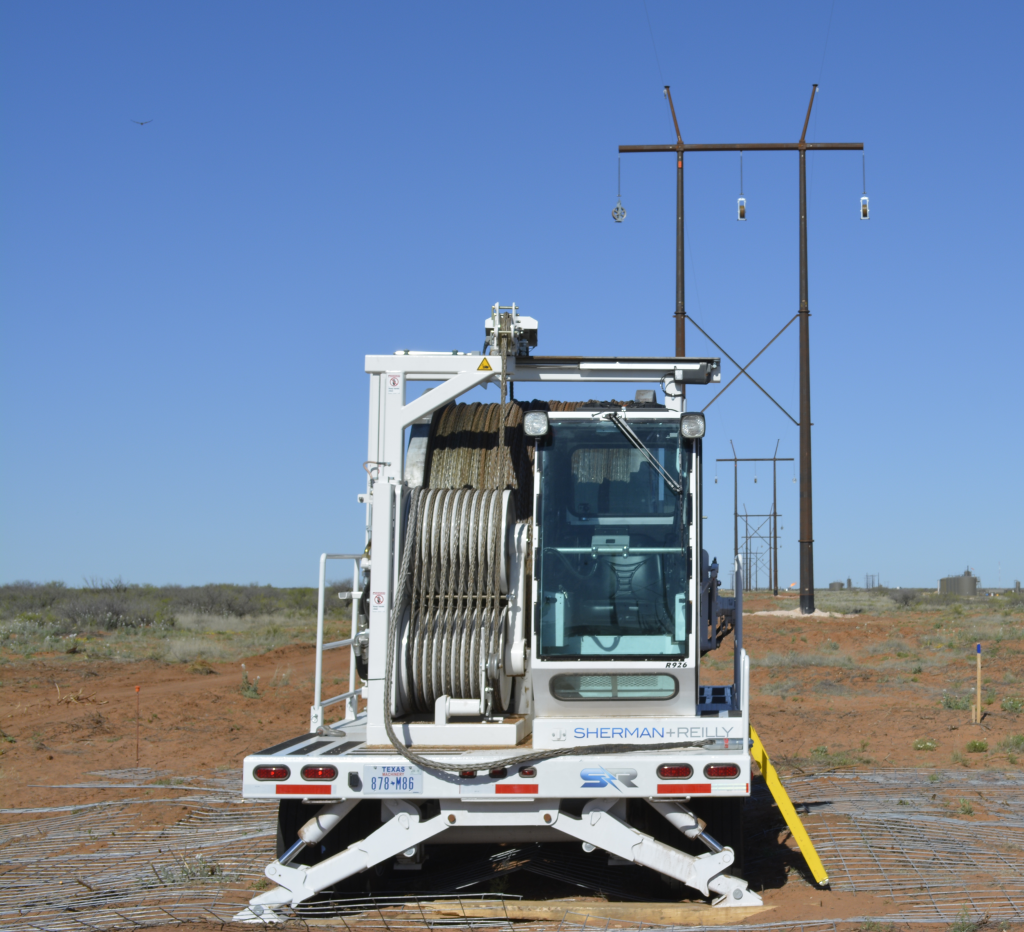

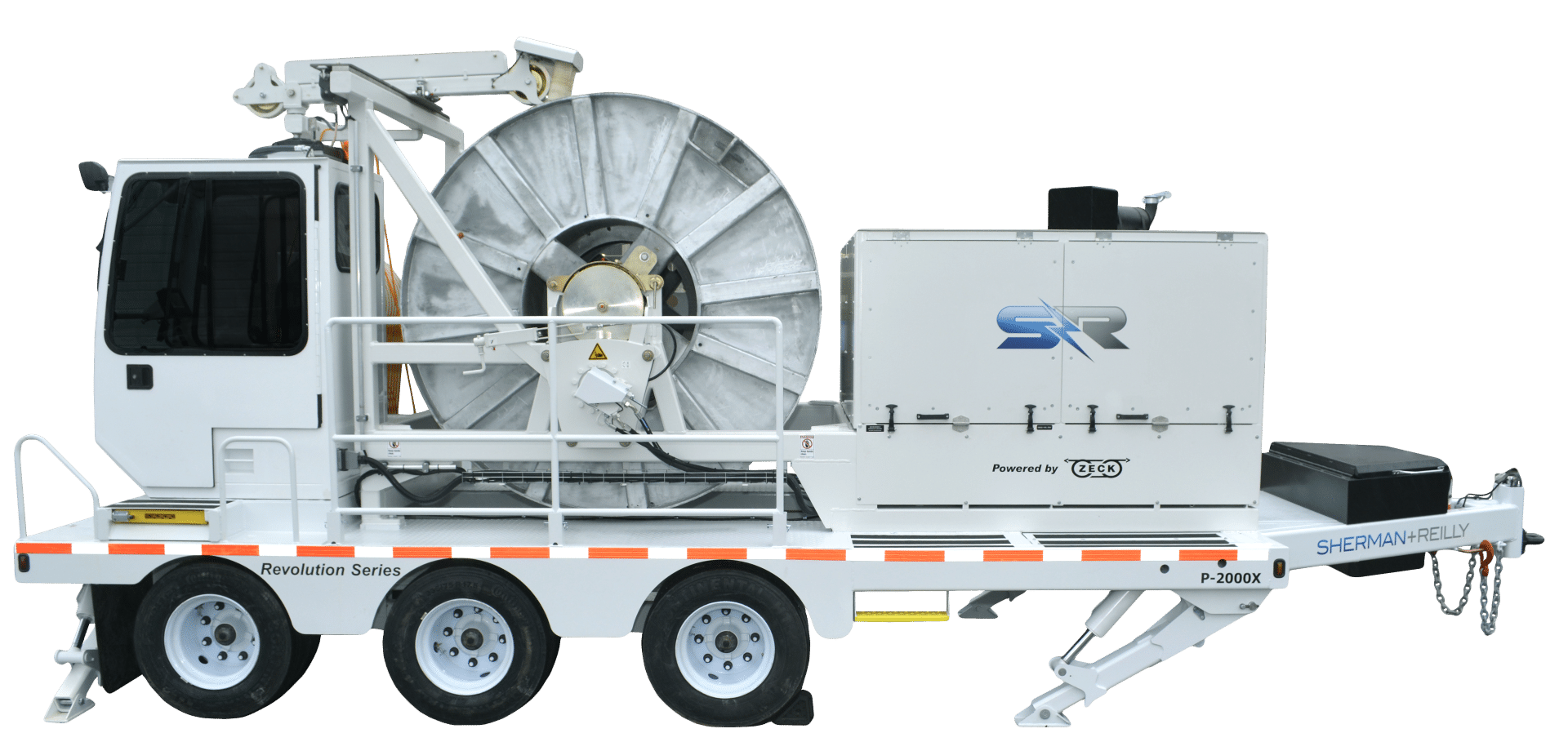

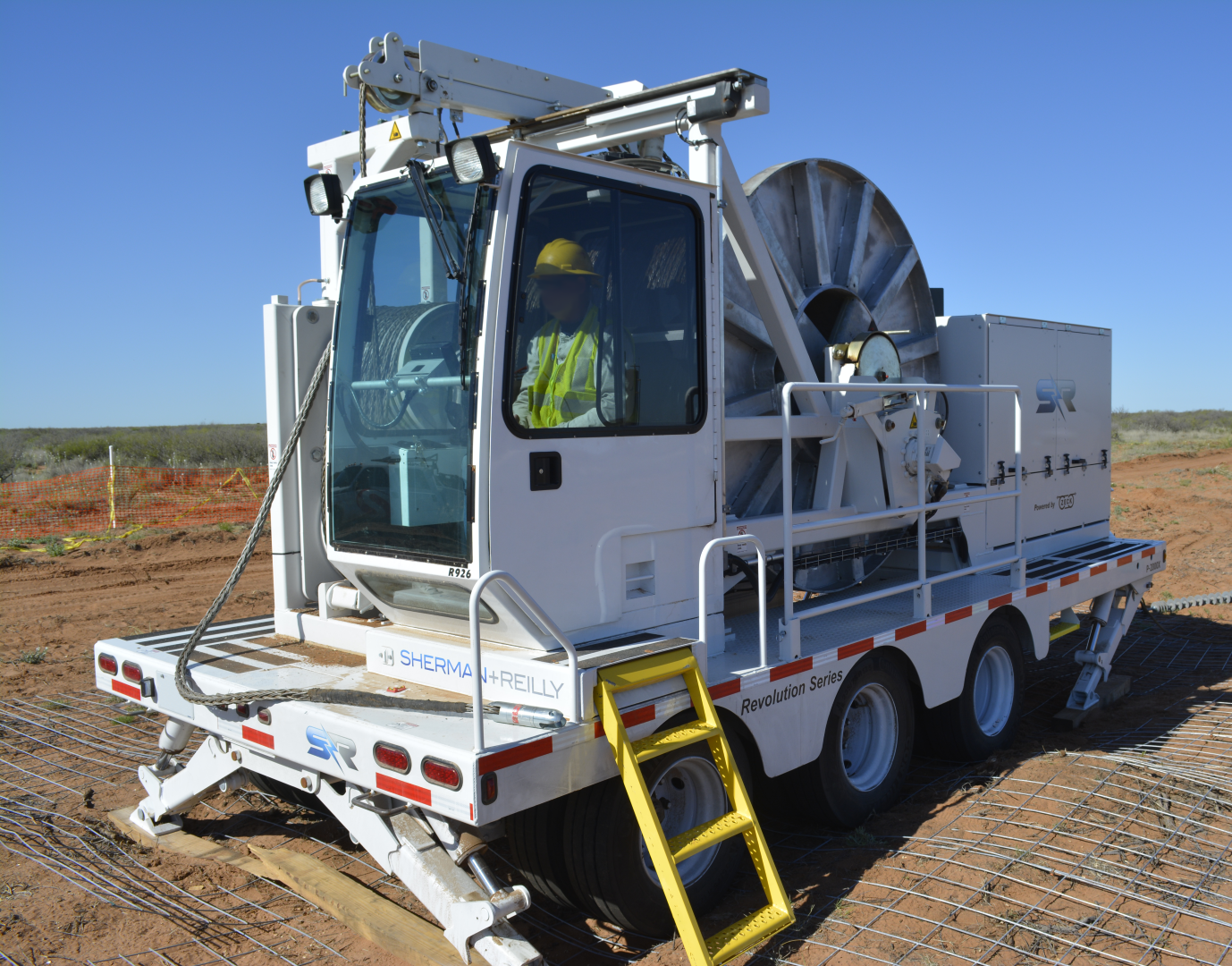

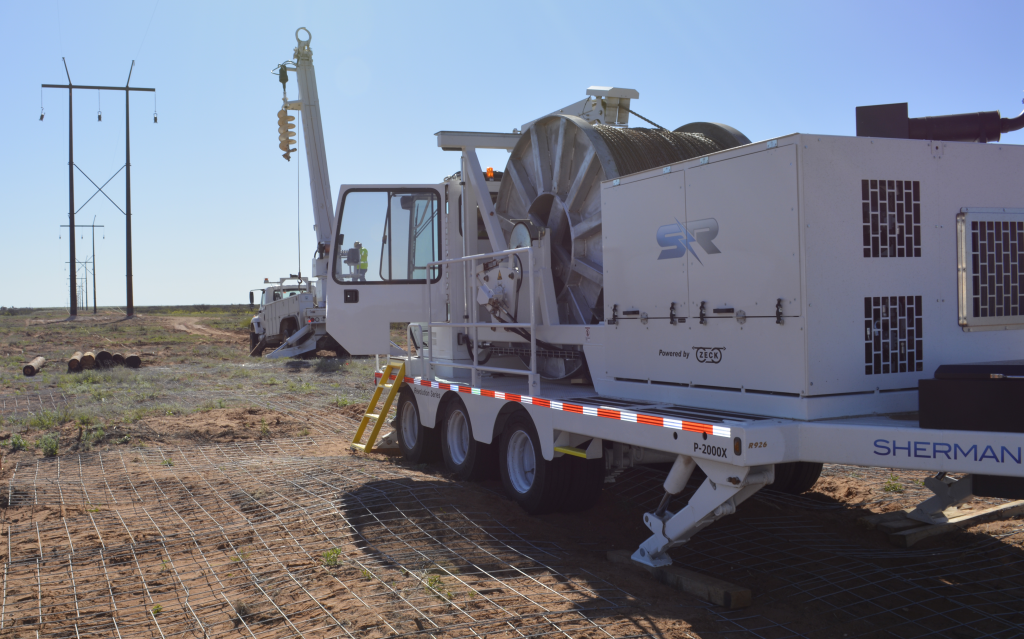

P-2000x Bullwheel Puller
20,000 LBS. BULLWHEEL PULLER
The Sherman+Reilly® Revolution Series P-2000X Bullwheel Puller is a single reel puller capable of pulling up to 20,000 lbs. This transmission class puller utilizes an automatic horizontal levelwind that permits overhead rope retrieval with precision control. The P-2000X is equipped with an ACG (advanced control group), allowing for a single operator at a protected central console to control payout speed, pulling speed, levelwind controls, and jack position.
Key Features
CAPABILITY
HYDRAULIC SYSTEM
Fully hydraulic direct drive system provides the operator with precise and intuitive automatic drive/drum braking.
OPERATOR’S STATION
Options
Specifications
-
Pulling Capacity
Max: 20,000 lbs. (Rated maximum)
-
Maximum Line Speed
Pulling: 4 mph
-
Controls
Digital with real-time tension monitoring and recording
-
Drum Dimensions
Core Diameter: 30 in. / Total Outside Width: 76 in.
-
Inside Width
50 in. / Flange Diameter: 76 in. (84 Optional)
-
Reel Capacity
21 mm. dia. Unitrex™ 21,500 ft. 20 mm. dia. anti-twist Steel cable 23,000 ft.
-
Drive System
Twin 22 in. Bullwheels w/Direct Hydraulic Drive
-
Drive System Engine
Diesel, 142 Hp Diesel, 175 Hp, water cooled Tier 3, with Webasto Arctic Pack
-
Fuel Capacity
12 gallon
-
Hydraulic Fluid
ISO Grade 32
-
Hydraulic Reservoir
20 gallon
-
Hydraulic Fluid Filtration
10 micron, both supply and return filters
OPTIONS
- Solar Battery Charger
All Specifications
P-2000x Bullwheel Puller
-
Pulling Capacity
Max: 20,000 lbs. (Rated maximum)
-
Maximum Line Speed
Pulling: 4 mph
-
Controls
Digital with real-time tension monitoring and recording
-
Drum Dimensions
Core Diameter: 30 in. / Total Outside Width: 76 in.
-
Inside Width
50 in. / Flange Diameter: 76 in. (84 Optional)
-
Reel Capacity
21 mm. dia. Unitrex™ 21,500 ft. 20 mm. dia. anti-twist Steel cable 23,000 ft.
-
Drive System
Twin 22 in. Bullwheels w/Direct Hydraulic Drive
-
Drive System Engine
Diesel, 142 Hp Diesel, 175 Hp, water cooled Tier 3, with Webasto Arctic Pack
-
Fuel Capacity
12 gallon
-
Hydraulic Fluid
ISO Grade 32
-
Hydraulic Reservoir
20 gallon
-
Hydraulic Fluid Filtration
10 micron, both supply and return filters
-
Levelwind
Electrically-actuated, automatically-controlled
-
Operator’s Safety Enclosure
Safe-Zone® Cab, fully-enclosed / single door
-
Frame Construction
Steel tubing
-
Length
(Overall, Nom.) 26 ft., 9 in.
-
Width
(Overall, Nom.) 8 ft., 6 in.
-
Height
(Overall, Nom.) 11 ft., 3 in.
-
Weight*
46,660 lbs. (With 20 mm dia. anti-twist rope)
-
GVWR
48,000 lbs.
-
Suspension
Leaf-spring
-
Axle Configuration
Tri-axle
-
Wheel Configuration & Tires
Dual 235/70R 17.5
-
Brakes
(Trailer) Electronic brakes w/anti-lock features
-
Towing Attachment
3 in. pintle eye, with two safety chains and hooks
-
Tie Downs
(2) 5/8 in. dia. Steel D-Strings
-
Rear (R/L) Jacks
(2) 1 in. dia. Steel D-Rings
-
Front/Nose Jacks
Hydraulic, horizontal folding, with shoe
-
Stabilizing Jacks
Hydraulic, vertical column, with shoe
-
Battery
(2) 12 V, 720 CCA, BCI group 93
-
Lights / Navigation
Split 12/24 VDC
-
Exterior Work Lighting
12 V, LED, U.S. DOT-approved
-
Grounding
3/4 in. dia. Copper-clad Steel ground loops (4)
-
Wheel Chocks
Standard
-
Fire Extinguisher
ABC
-
Color
S+R White
